SKU: SC000021

COLTRI compressor FORCE FOUR 400 EM

19.313,00 €

Including VAT (25%)

Send inquiry

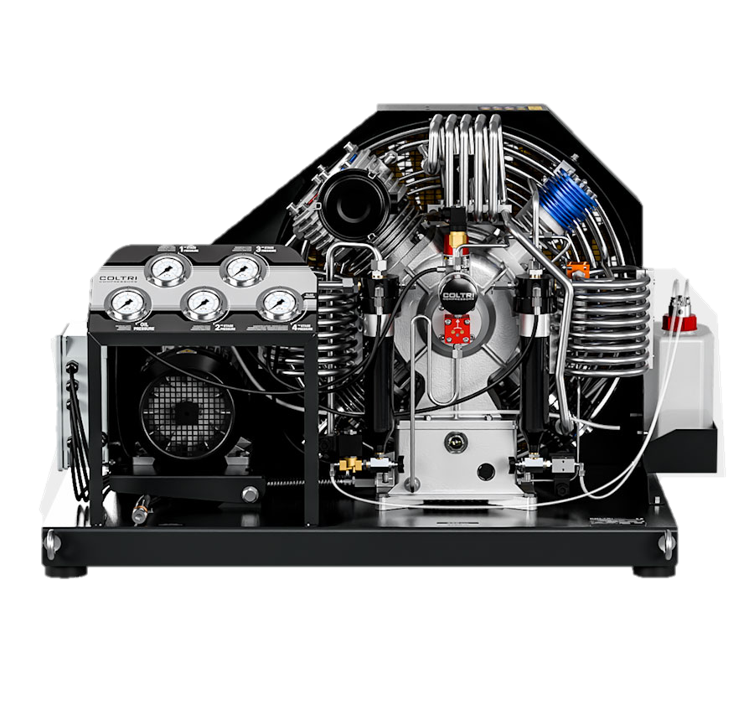

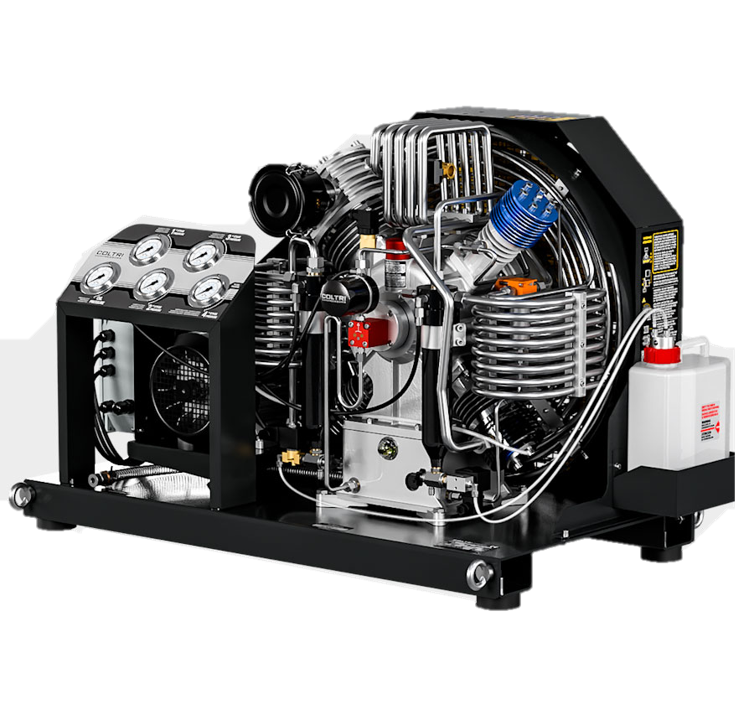

Force Four is the ideal compressor for those seeking power and reliability in even the most intensive uses. With its 4-stage pumping unit, it guarantees high performance and total control at every stage of work.

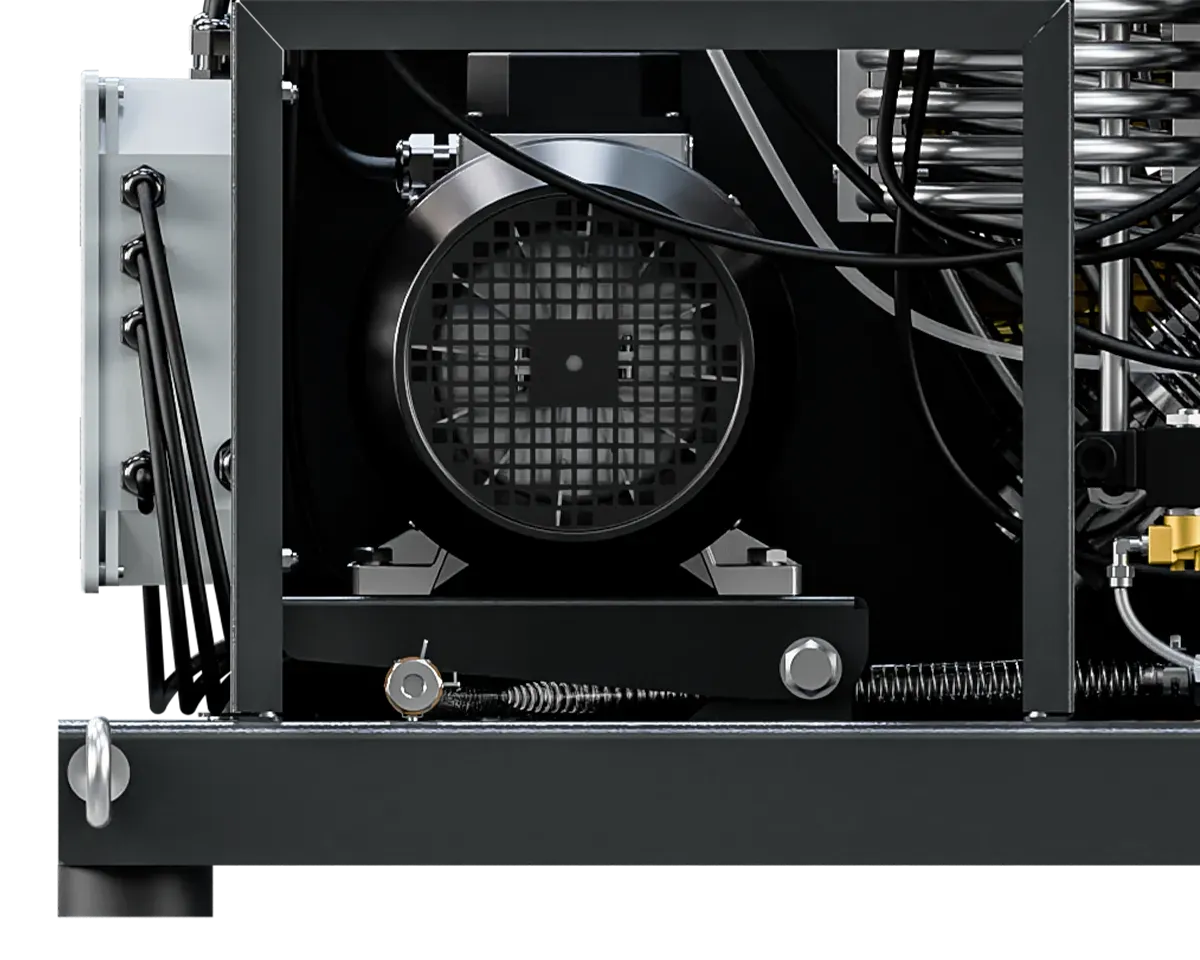

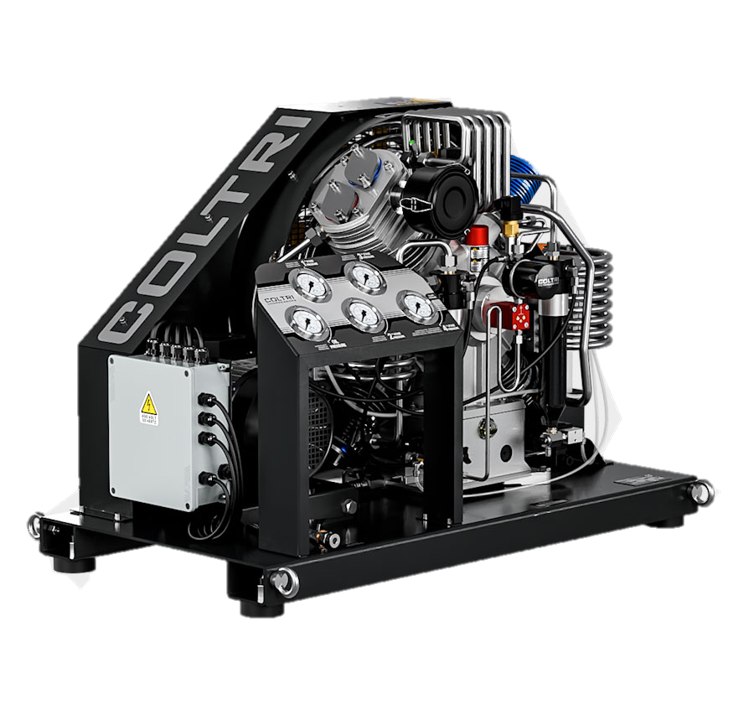

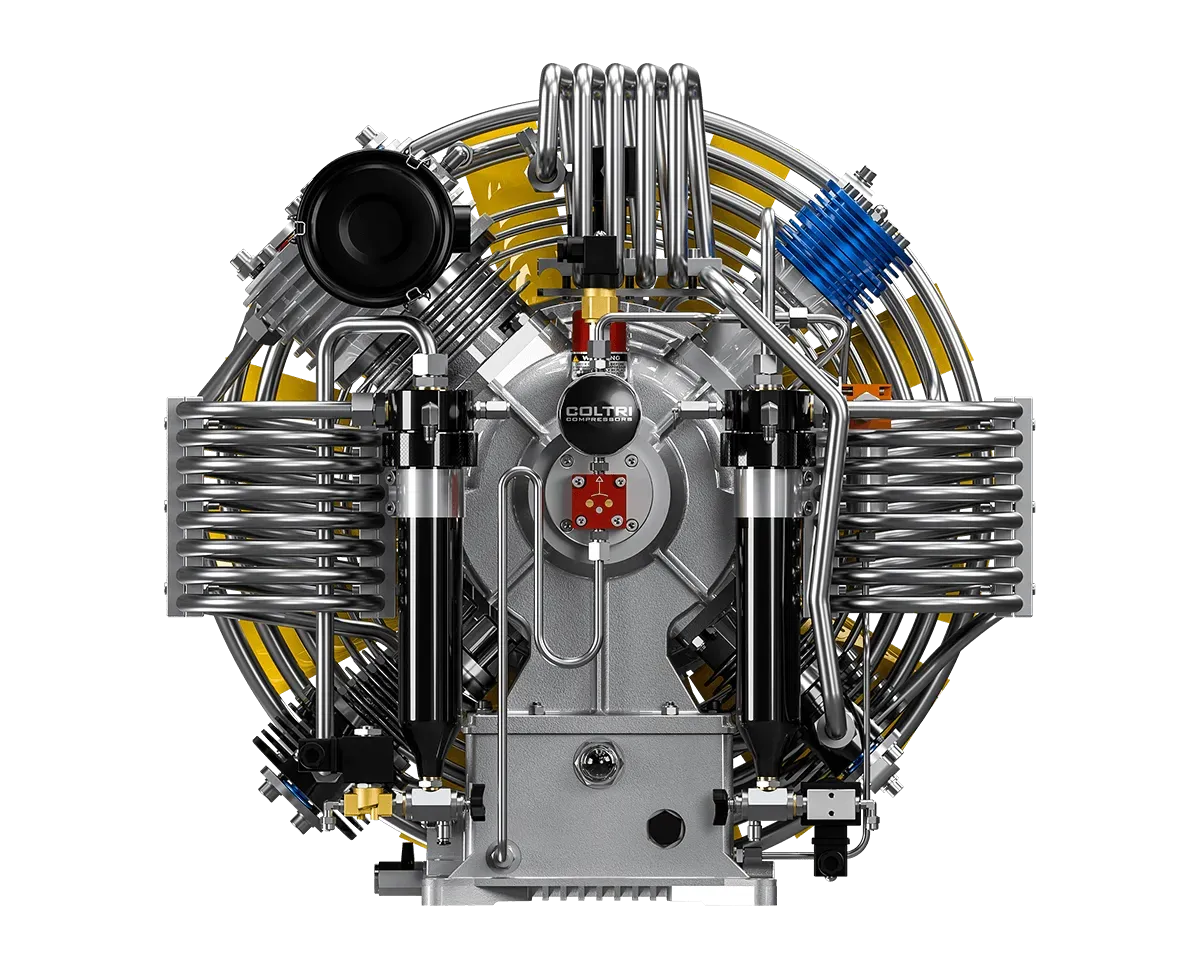

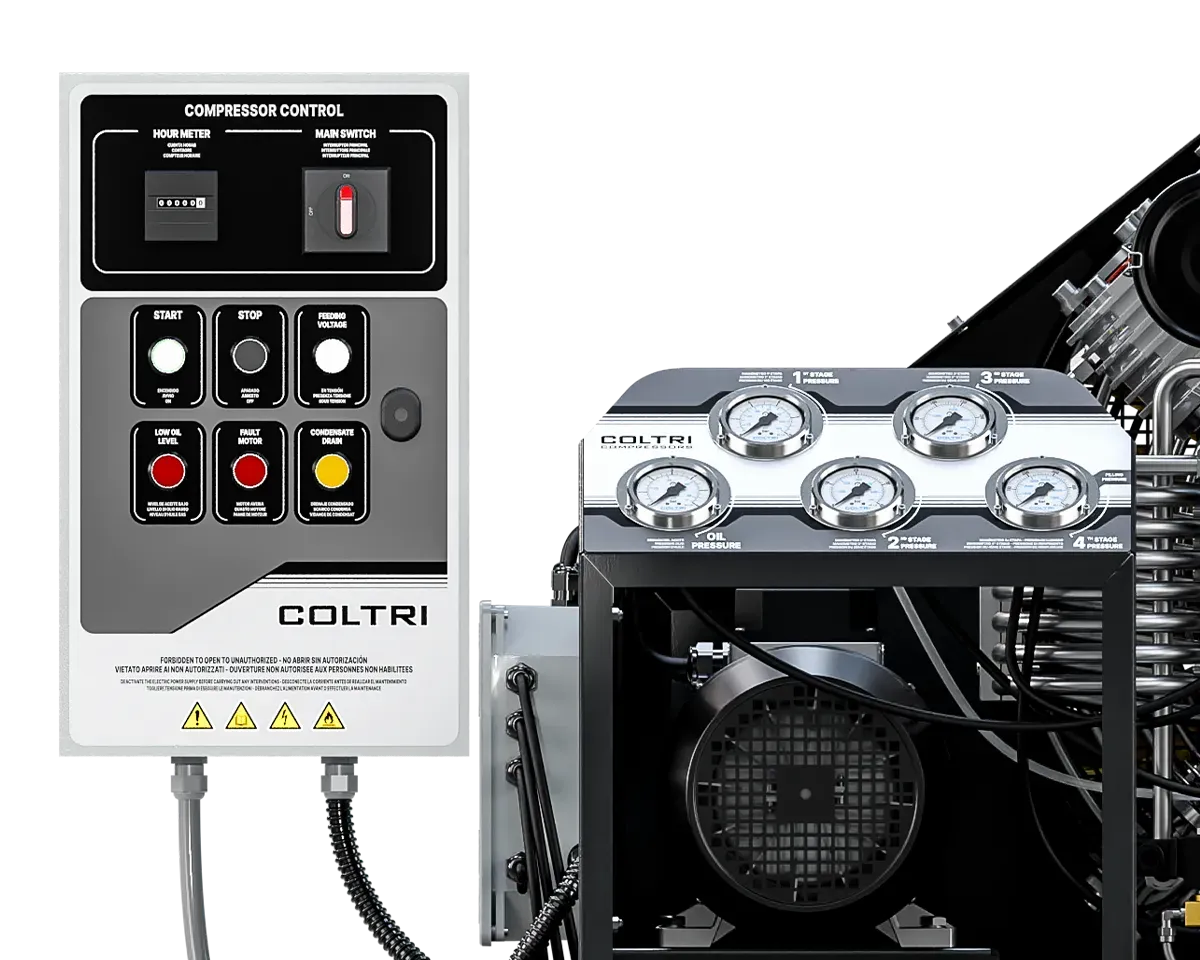

The model Force Four meets professional needs that require large charging capacities in hot, poorly ventilated environments or tropical countries. It is equipped with an intuitive control panel and electric motor. The pumping unit, a choice of 3 most powerful, is exposed to ensure a better cooling cycle.

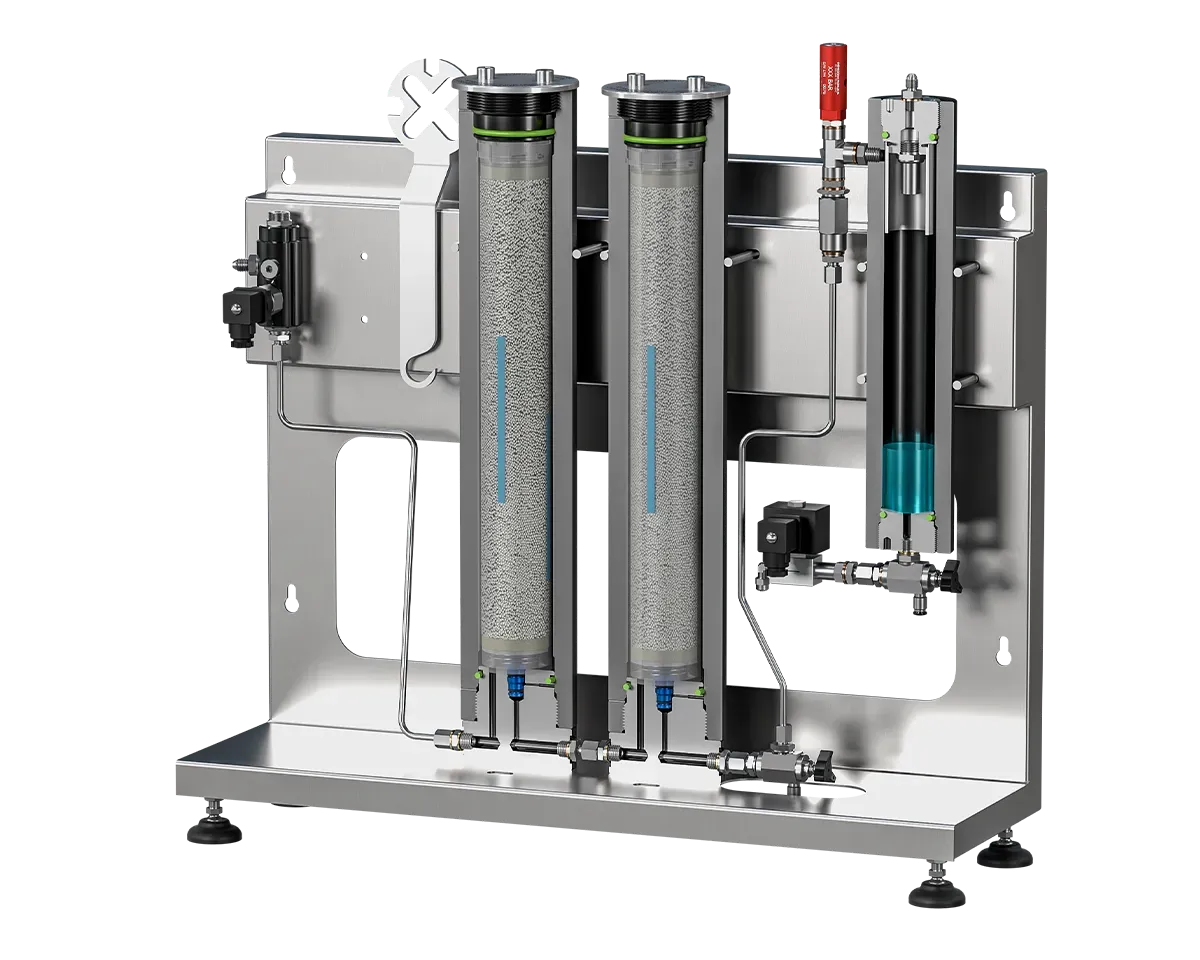

It is equipped with the Hyperfilter stand-alone mounted purification system with automatic condensate drainage. For longer filter life, the Tornado high-pressure dryer is recommended. Available as optional extras: the Presec system for filter saturation control, Megafilter oversized filter cartridges, and 2- or 4-outlet remote refill panel.

Air purity and quality are two indispensable features of Coltri Compressors. The air you breathe from the compressors Coltri complies with EN 12021:2014 standards: that’s why with them you can work, have fun, practice in absolute safety.

FORCE FOUR 400 EM – Technical Specifications

Code: SC000021
Drive and Motor powers: Single-phase, 230 V - 560 Hz, 7.5 kW
Color: Black
Charging rate: 400 l/min (24.0 m³/h, 14.1 cfm)
Fillling time: 5.00 min
Wornikg press. max.: 300 bar (4351 psi)

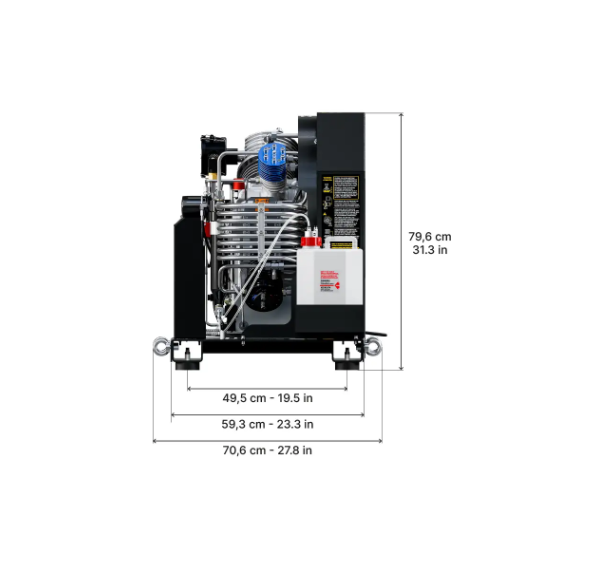

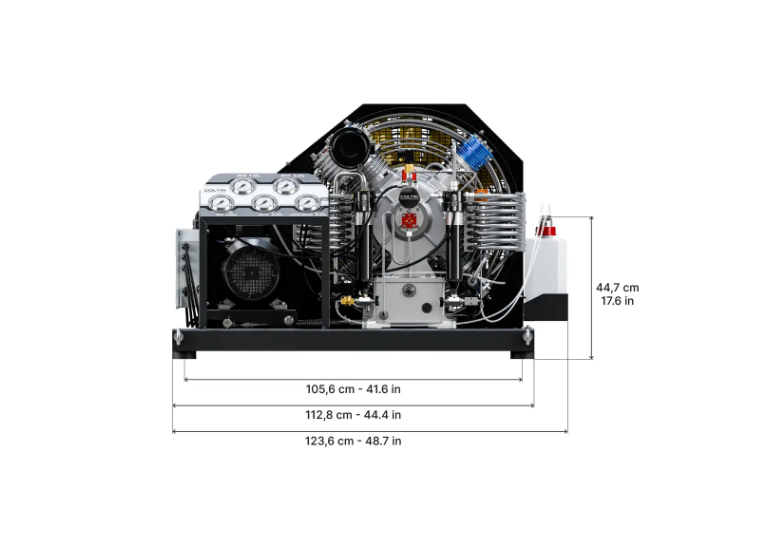

Dimensions: 115 x 60 x 79.6 cm (45.3 x 23.6 x 31.3 in)
Weight: 250 kg (551lbs)

Standard Equipment:

4 Filling connections (DRV DIN 232, DRV DIN 300 or INT/YOKE 232 bar)
4 Filling hoses 1.2 m long
Pressure holding valve
Pressure gauges - interstage control

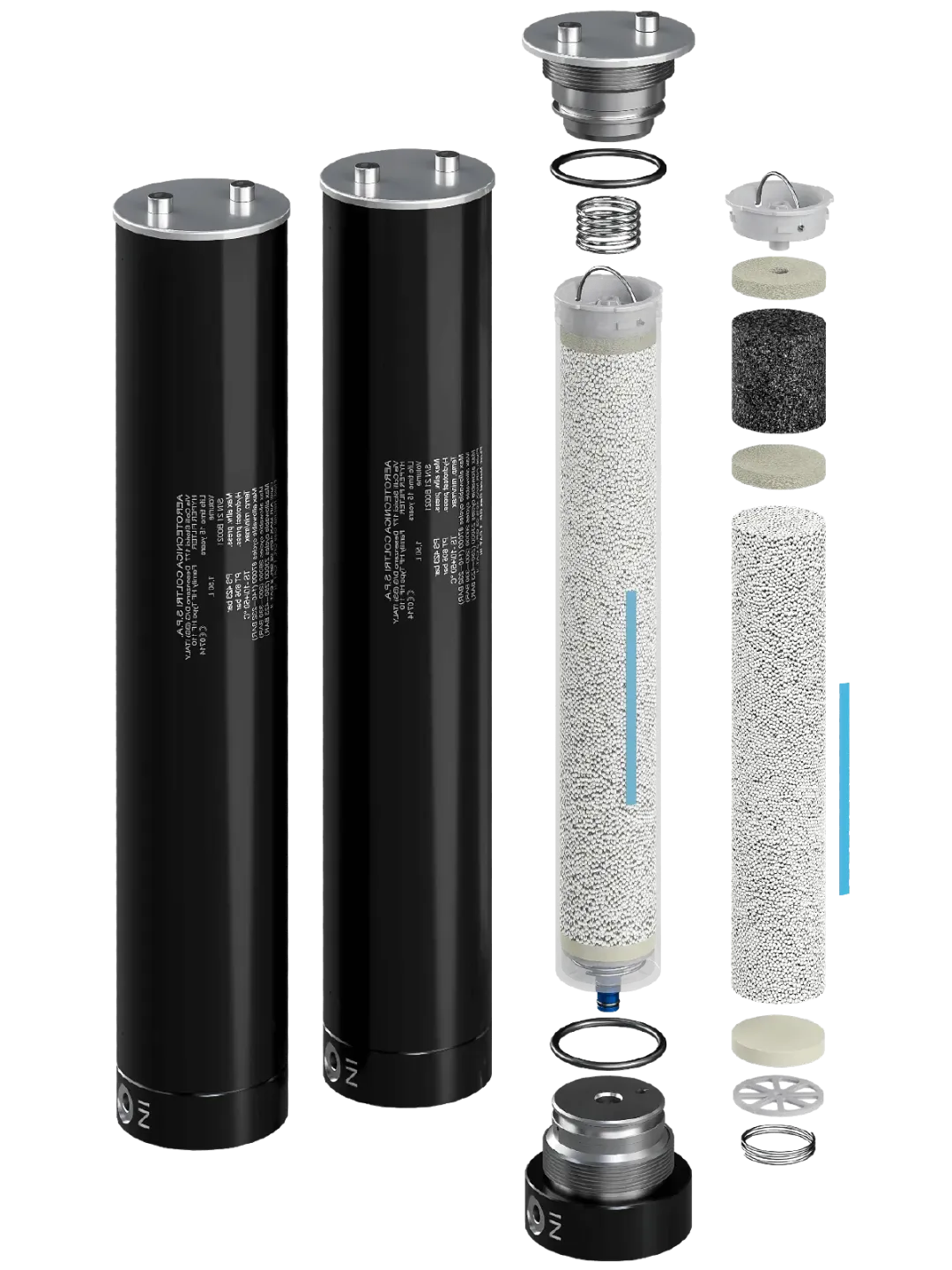

Dual PED-certified Hyperfilter filter system
Purification system on ''stand-alone'' structure
Automatic condensate drain
Oil sight glass
Oil pump
Frame color Black RAL 9005

Optional Equipment:

Remote filling panel single pressure with lever valve - stainless steel (chosen from DRV DIN 232 bar, DRV DIN 300 bar or DRV INT/YOKE 232 bar) (SC000327/I)
Remote filling panel double pressure with lever valve - stainless steel (STAINLESS STEEL
(chosen from DRV DIN 232 bar + DRV DIN 300 bar or DRV INT/YOKE 232 bar + DRV DIN 300 bar). Including Priority Panel.) (SC000331/I)
DIN 232 bar stainless steel fit for lever valve with safety pin (SC000936)
DIN 300 bar stainless steel fit for lever valve with safety pin (SC000937)
INT stainless steel fit for lever valve with safety pin (SC000935)
Presec Hyperfilter kit (Control unit/Filter cap/Filter cartridge molecular sieve and activated carbon) (99.0.L6S4.0065)
TORNADO refrigerator - dryer 420 bar (SC0001307)
Filling hose 3 m (SC000461/3000/AIR)
Filling hose 5 m (SC000461/5000/AIR)
Filling hose 10 m (SC000461/10000/AIR)
