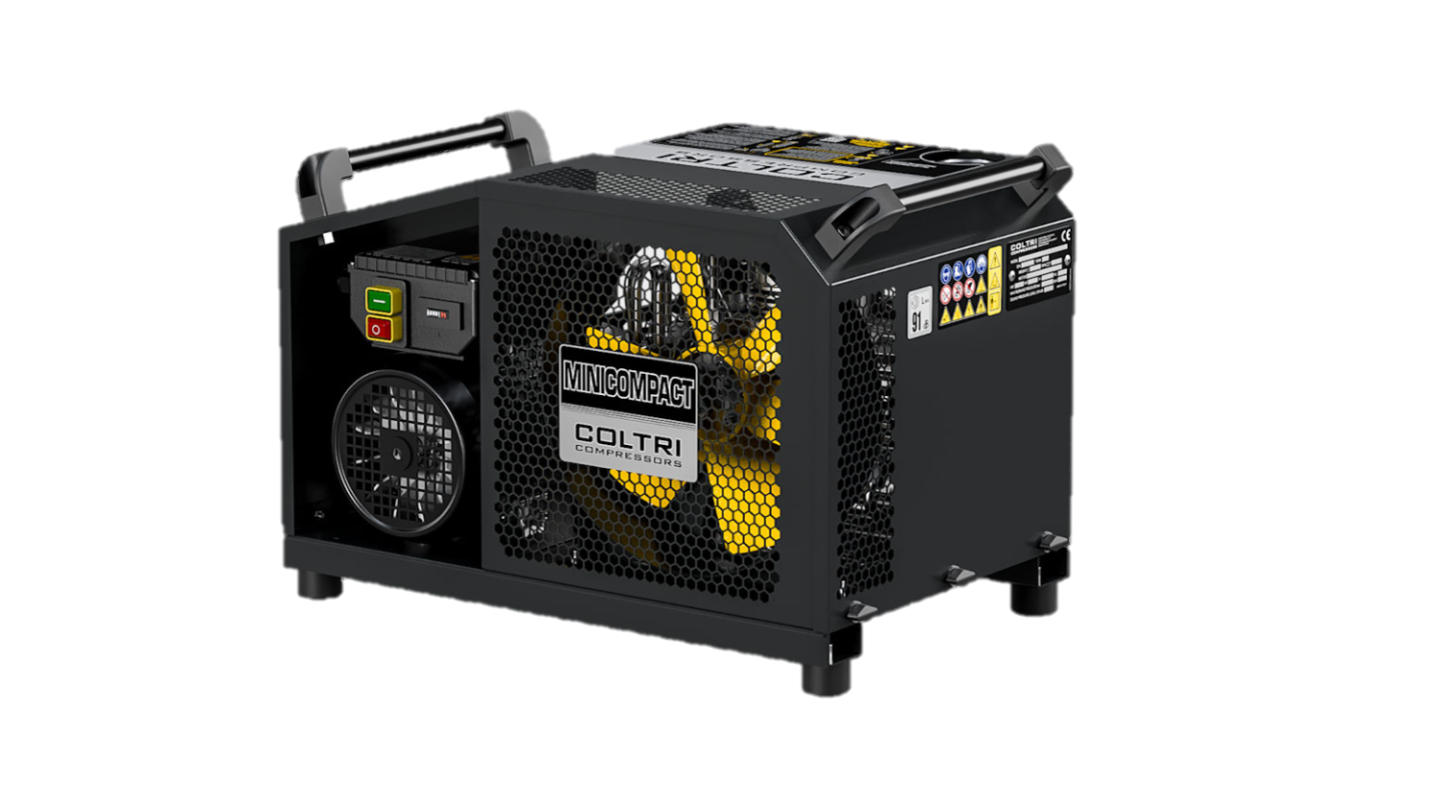

COLTRI compressor MINI COMPACT 100 ET
Inquiry for: COLTRI compressor MINI COMPACT 100 ET

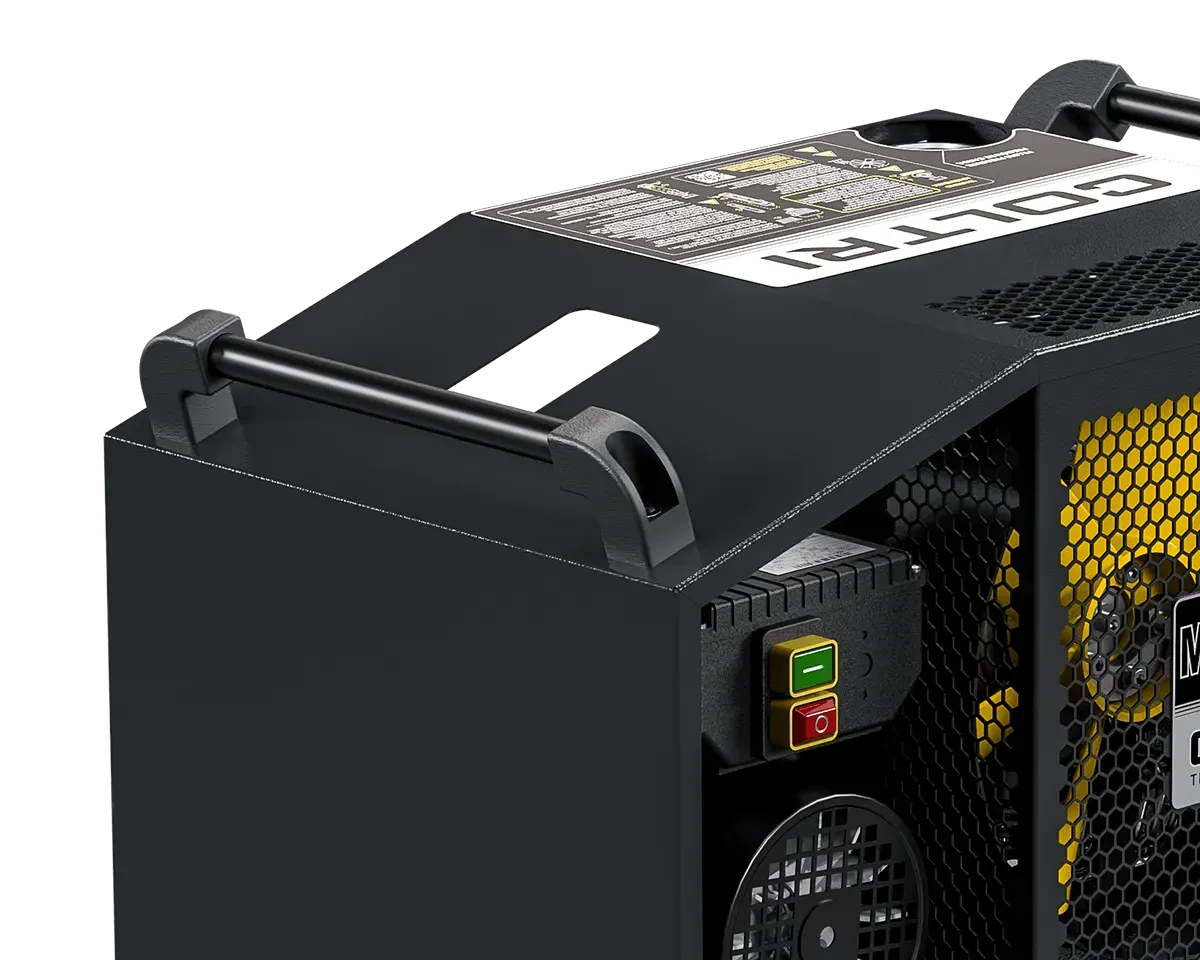

The compressors of the MINI COMPACT line are very popular in the naval sector thanks to the more robust reinforced frame.

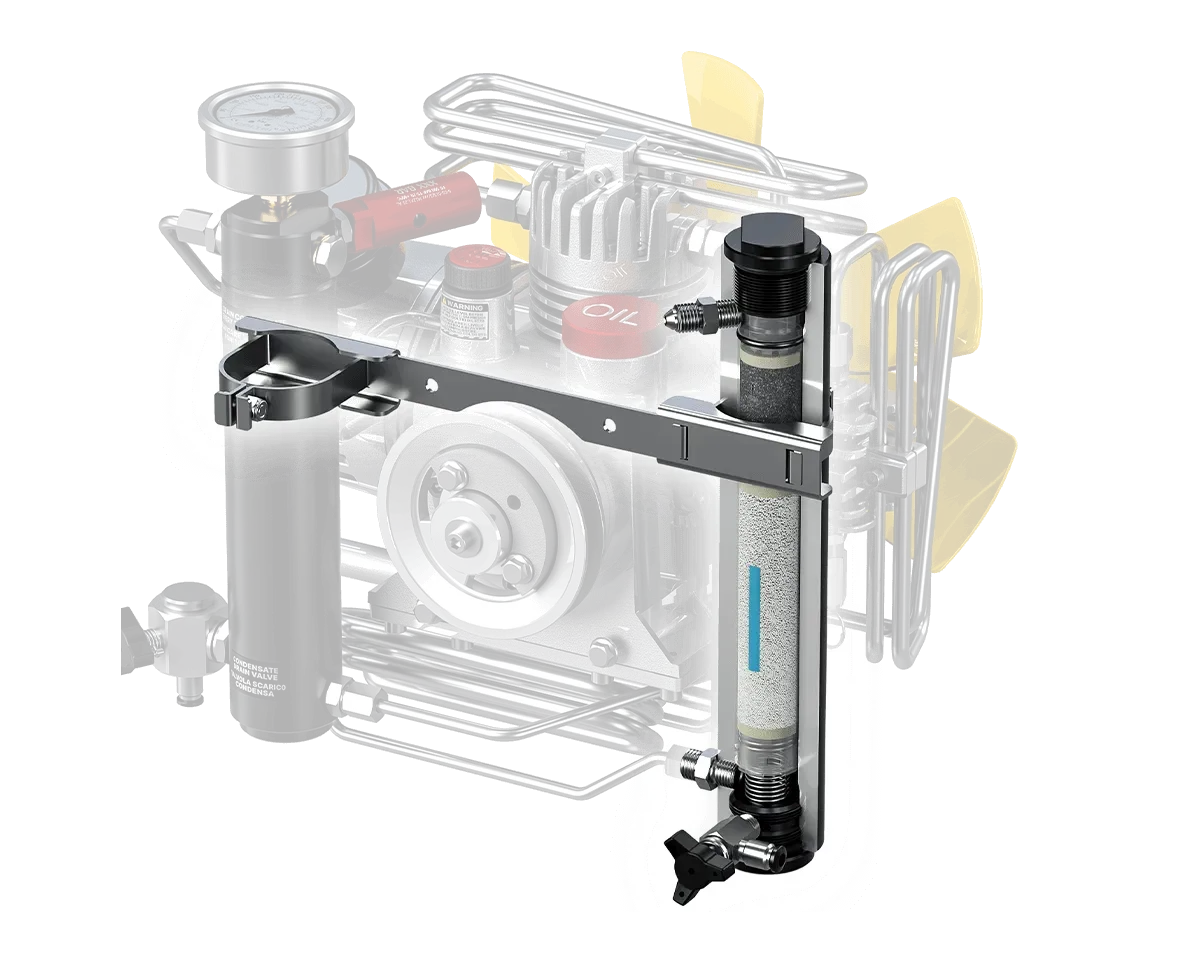

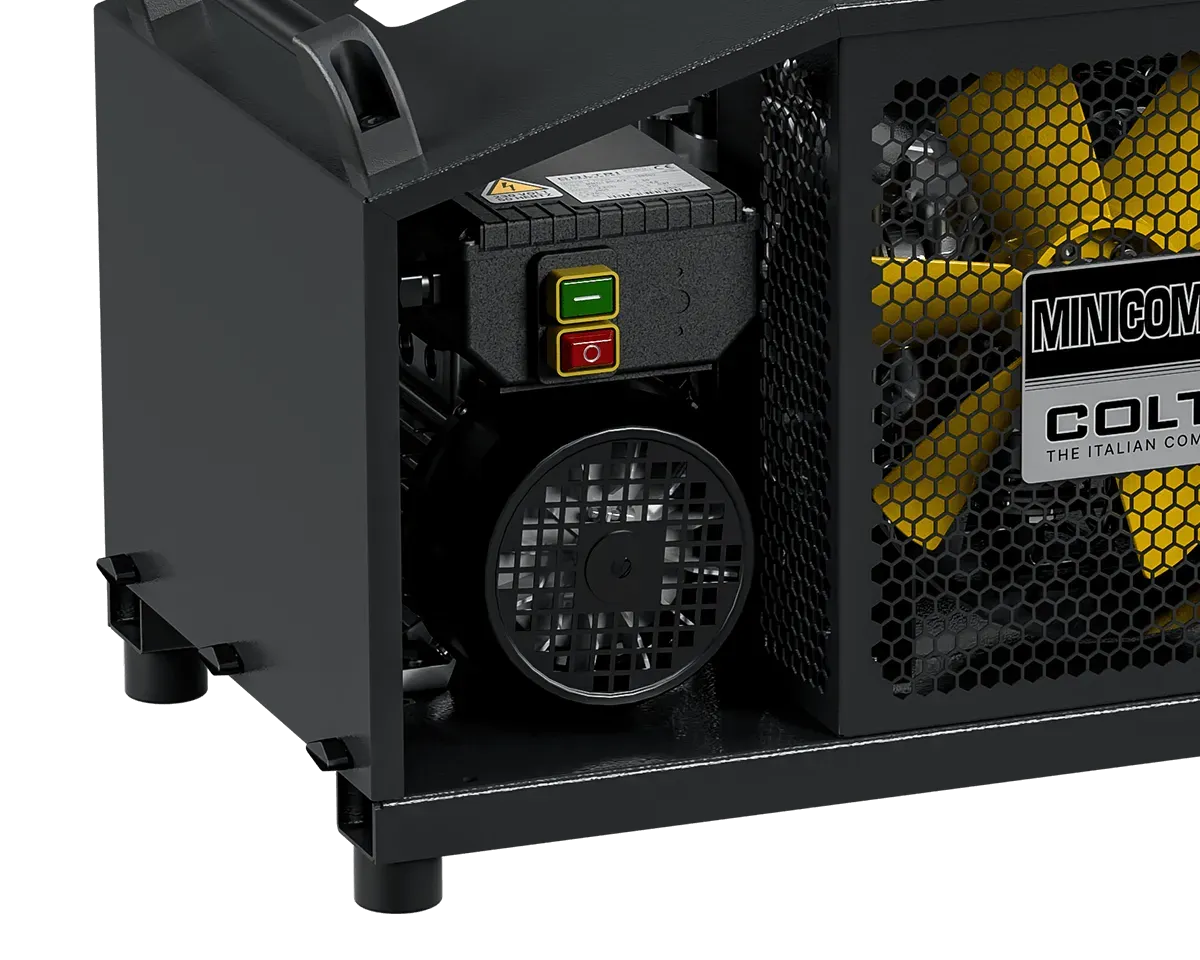

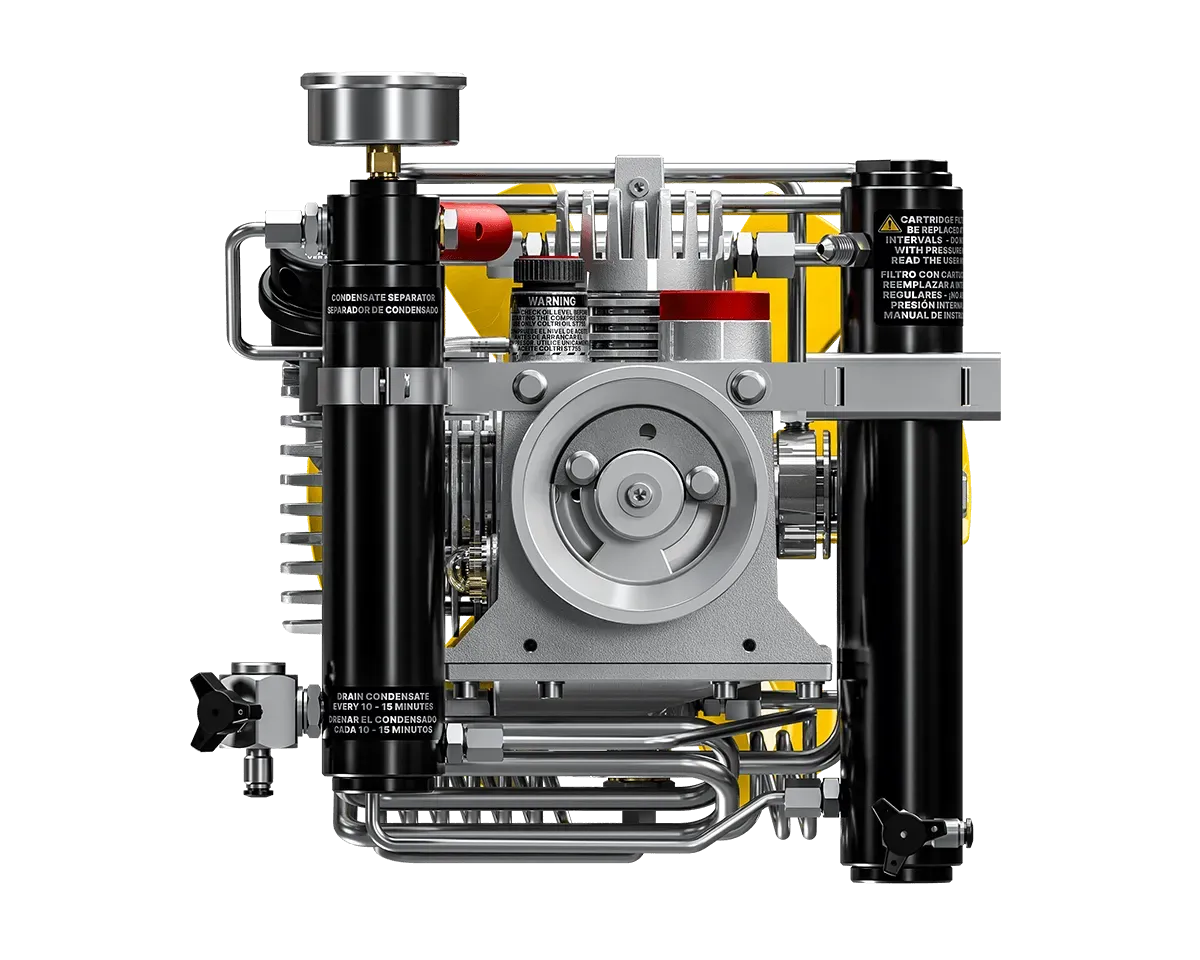

All equipped with MINI COMPACT pumping unit, they are available with petrol or electric motors (SH), both three-phase (ET) and single-phase (EM).
MINI COMPACT 100 ET – Technical Specifications
| Model | Code | Motor | Voltage / Frequency | Color |
|---|
| MINI COMPACT 100 ET | SC100130/MINIC/N | Three-phase | 400 V - 50 Hz | Black |
| MINI COMPACT 100 ET | SC100131/MINIC/N | Three-phase | 230 V - 50 Hz | Black |
| MINI COMPACT 100 ET | SC100132/MINIC/N | Three-phase | 230 V - 60 Hz | Black |
| MINI COMPACT 100 ET | SC100133/MINIC/N | Three-phase | 440 V - 60 Hz | Black |
Common Specifications (same for all models):
- Model: MINI COMPACT 100 ET
- Power: 3,0 kW
- Charging rate: 100 l/min (6.0 m³/h, 3.5 cfm)
- Filling time: 20 min
- Max pressure: 330 bar (4786 psi)

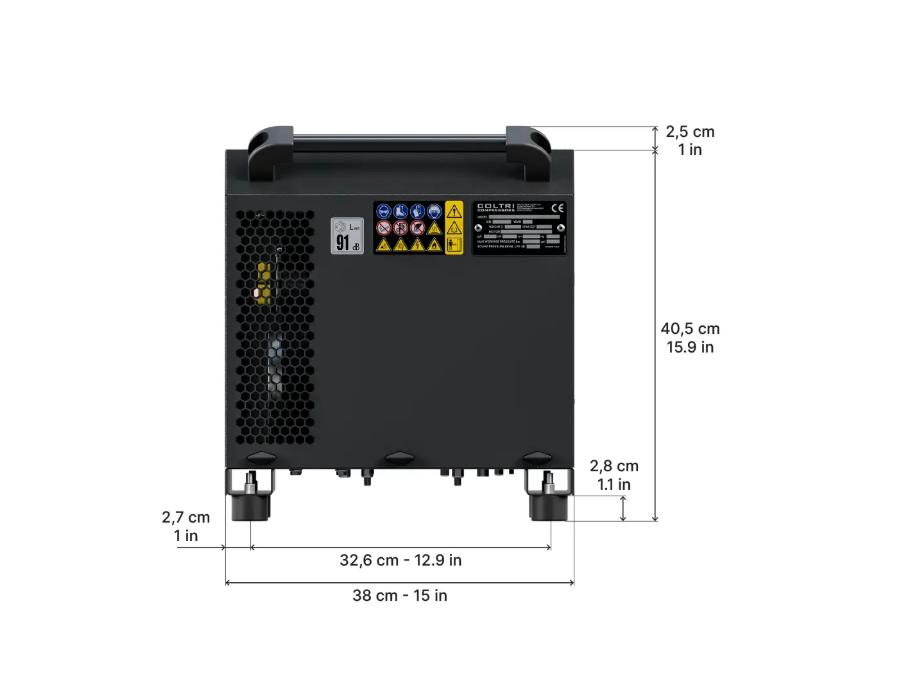

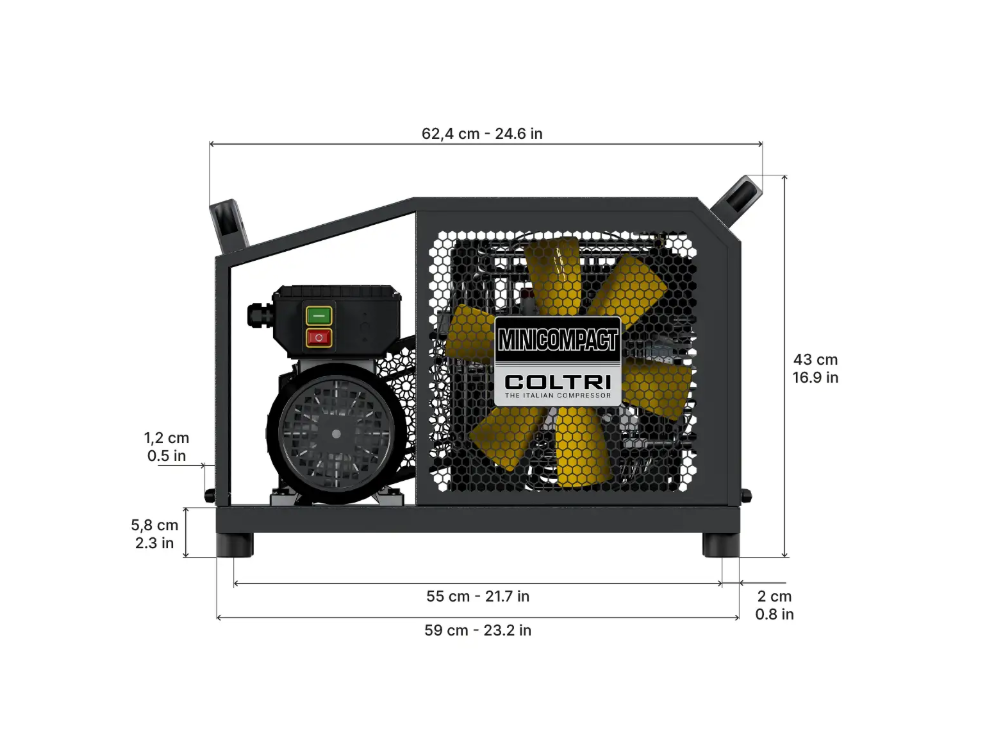

- Dimensions: 62,4 x 38 x 43 cm (24.5 x 15 x 16.9 in)
- Weight: 47 kg (103.6 lbs)
Standard equipment:
- 1 Filling Connection (DIN 232 / DIN 300 / INT/YOKE 232 BAR)
- Filling Hose 1.2 m
| OPTIONAL EQUIPMENT | MINI COMPACT 100 EM | MINI COMPACT 100 ET | MINI COMPACT 100 SH | Code |
|---|
| Autostop | ✓ | ✓ | ✓ | SC000521/232 - SC000521/300 |
| Automatic condensate drain | ✓ | ✓ | ✓ | SC000522 |
| C-monitor | ✓ | ✓ | ✓ | SC001200 |
| Remote intake kit 3 m | ✓ | ✓ | ✓ | HC010302 |
| Digital hour meter | X | X | ✓ | 13-04-0210 |
| Pressure maintaining valve (for use only with DRV) | ✓ | ✓ | ✓ | 6-05-018/VMP/R |
| Pressure reguator 300/200 bar | ✓ | ✓ | ✓ | SC000531 |
| DRV DIN 232 bar | ✓ | ✓ | ✓ | DRV232 |
| DRV DIN 300 bar | ✓ | ✓ | ✓ | DRV300 |
| DIN/INT adapter | ✓ | ✓ | ✓ | RE100350 |
| DRV INT/YOKE 232 bar | ✓ | ✓ | ✓ | DRVINT |
| Filling hose length 2 m | ✓ | ✓ | ✓ | SC000461/2000/AIR |
| Filling hose length 3 m | ✓ | ✓ | ✓ | SC000461/3000/AIR |
