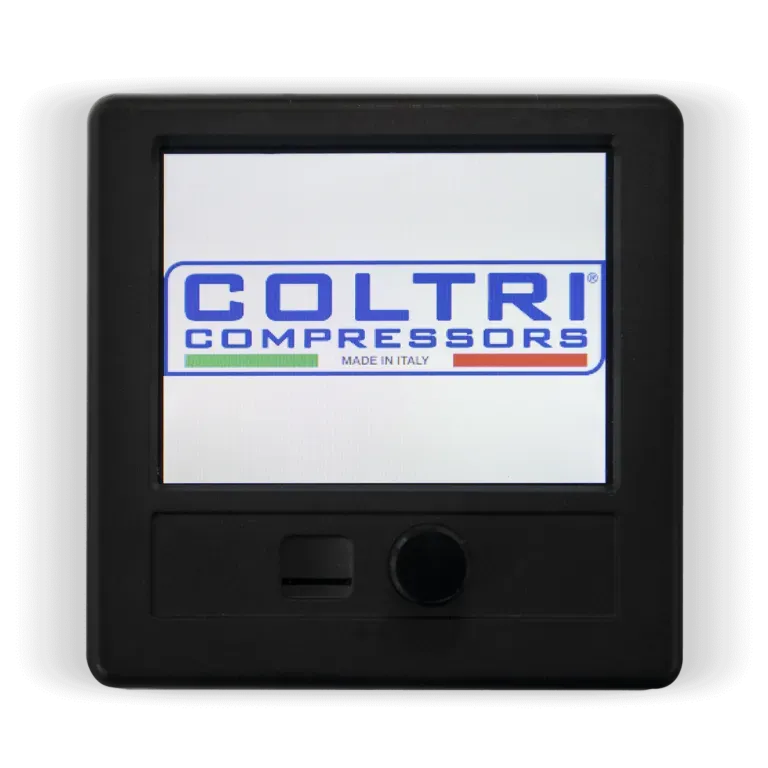

Coltri SAM MULTIGAS CO + CO2 + H2O

Available sensors:

• Oxygen O2
• Carbon dioxide CO2
• Carbon monoxide CO
• HumidityH2O
• Gas temperature
• Helium in the air

Choosing the SAM Multigas Analysis System cannot also install the Presec system.

Specifications:

• Input voltage: 10–35 V DC
• Internal battery: Lithium-ion rechargeable battery, 1 cell 1400 mAh, 3.7 V
• Sensors: Up to 6 sensors
• Output: Acoustic alarm
• Serial connection: 1 × RS232, transmission speed up to 115,000 baud; RS485 on request
• Measurement resolution: 24-bit bipolar A/D converter, drift with automatic temperature compensation
• Conversion rate: 10 ms
• Sampling time: 100 ms (minimum) per channel
• Signal measurement accuracy: 0.1% full scale ± ½ LSB
• Input device: Rotary knob with push function

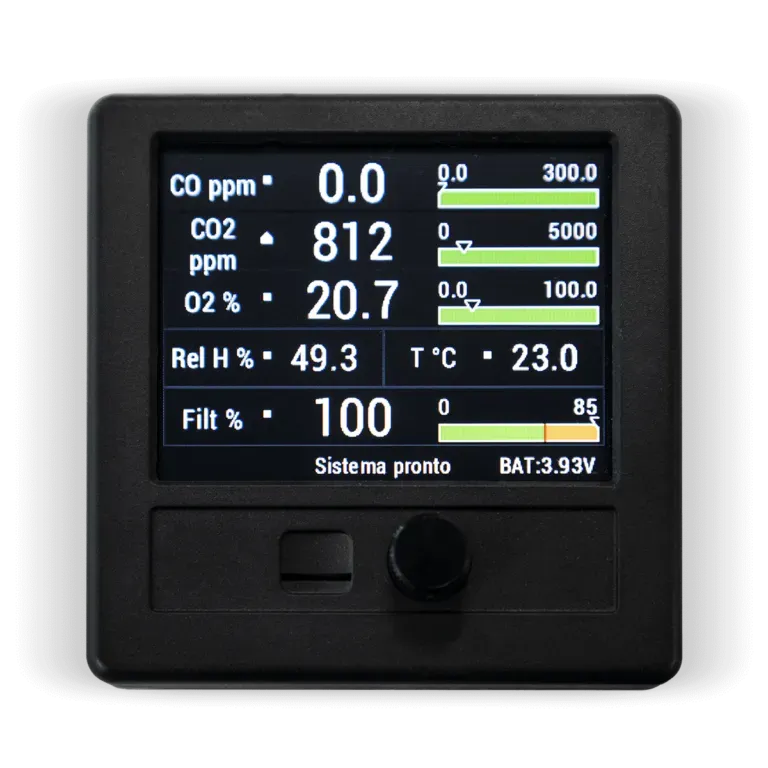

• Display: TFT 320 × 240 pixels, LED backlighting
• Display brightness: 600 nits (cd/m²)
• Memory: Micro SD card (reader/writer)
• Microprocessor: Cortex M4

AUDIBLE ALERT
The device features an audible warning alarm.

SERIAL INTERFACE
Standard RS232 interface for PC connection, allowing remote reading of measurements and programming of the instrument. Software available on request is required.

NON-VOLATILE MEMORY
SAM is equipped with non-volatile memory that retains configuration data and settings for up to 10 years without power.
