SKU: MM-T-MIX1000

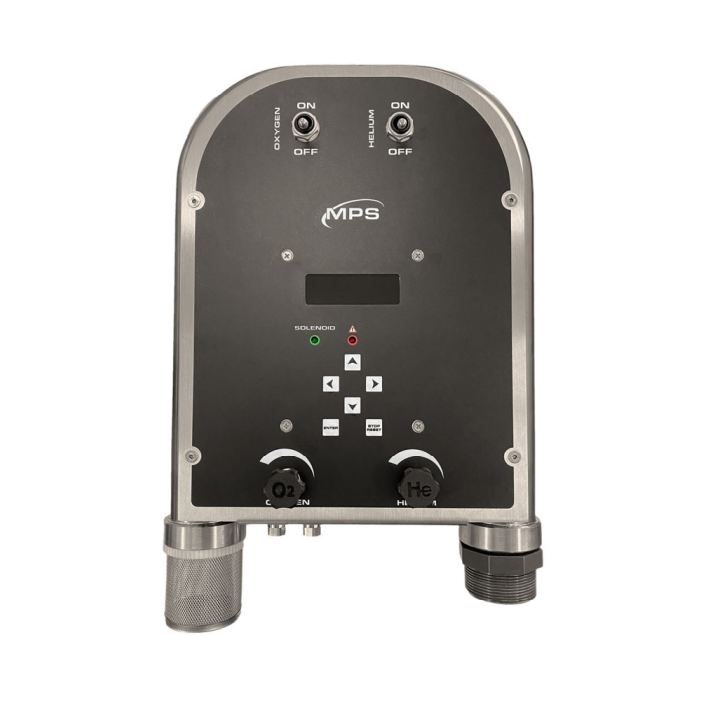

MPS gas mixer T-MIX 1000

3.860,00 €

Including VAT (25%)

Quantity

Add to cart

Systems with MPS static mixers enable the preparation of ternary (Trimix, Heliair) and binary (Heliox, Nitrox) gas mixtures.
They are easy to install and offer significant advantages due to their user-friendly design.
Their globally patented shape ensures mathematically predictable mixtures (via dedicated software), with minimal pressure loss.

Send inquiry

Applications

CCR Divers
Technical Divers

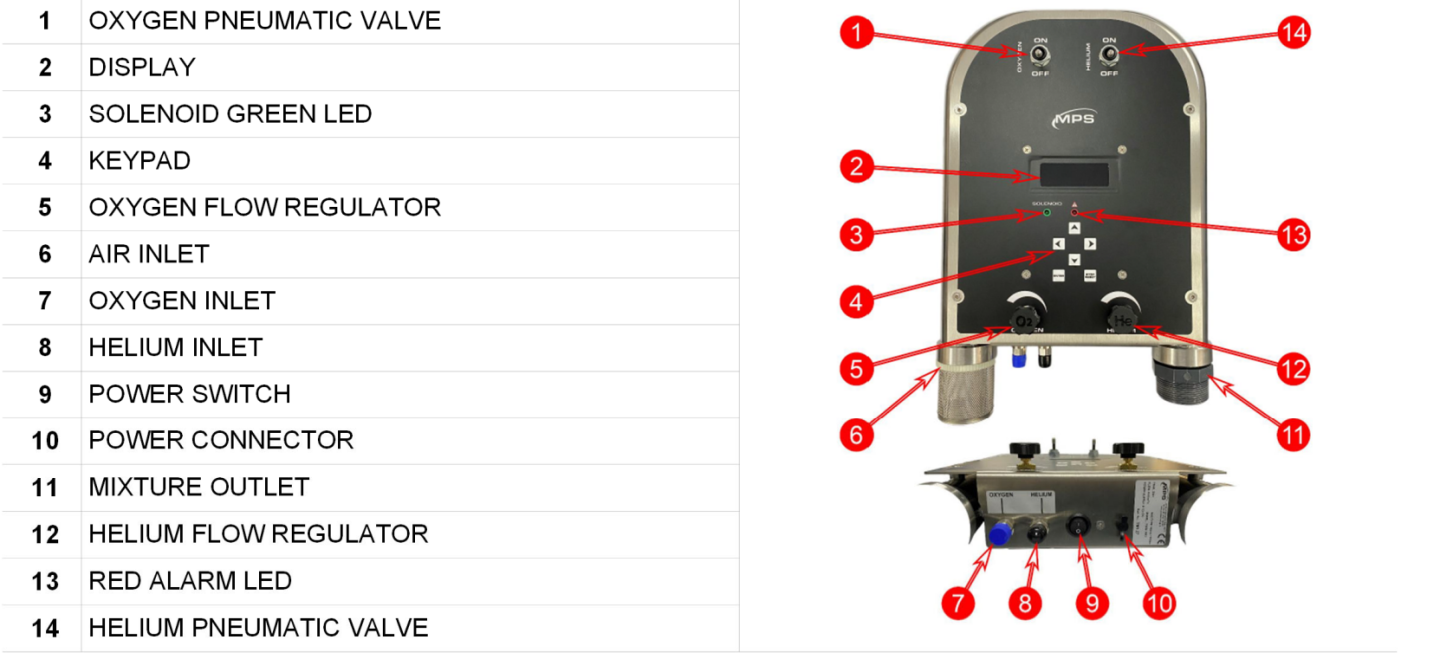

Technical data

POWER SUPPLY: 12 V DC
MAX FLOW: 1000 Lt/min (35.31 m3 /h)
GAS SUPPLY: O2 - He - Air - Ar
POSSIBLE MIXING FLOW: NITROX - TRIMIX - ARGON - SYNTETIC MIXTURE WITH PNEUMATIC LUNGE
MAX. O2 LEVEL UP TO 100%: PRESET 45%
O2 CONNECTION: Rapid Fitting 8 mm Tube - Max 10 bar (145 psi)
He CONNECTION: Rapid Fitting 8 mm Tube - Max 10 bar (145 psi)
MIXER CONNECTIONS: 2” (IN-OUT)
PRESSURE REDUCER O2 – He: Included
O2-He ELECTRIC SWITCH: Optional
PNEUMATIC STOP: Included
SOFT-WARE: NITROX - TRIMIX RELOAD SOFTWARE
DIMENSIONS: 395 x 260 x 115 mm (approx)

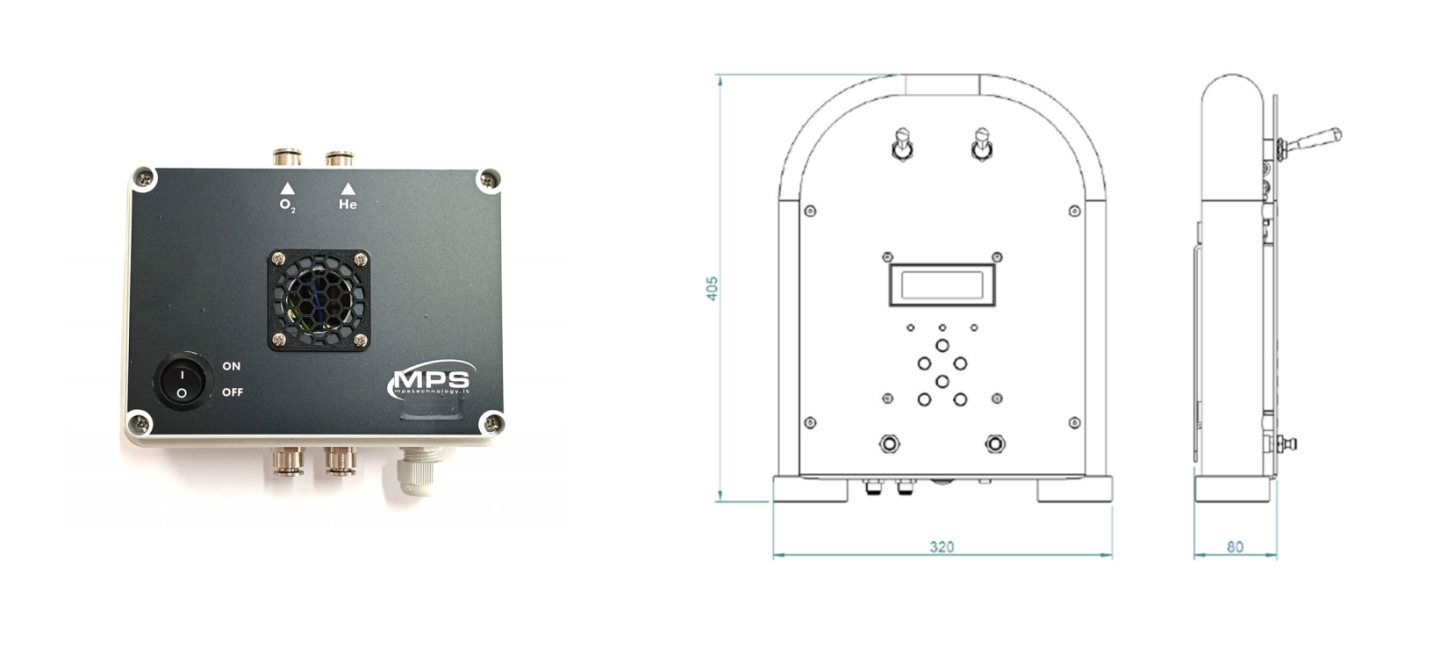

SOLENOID BOX

The mixer is supplied with a solenoid box that must be connected to the compressor. Before reaching the mixer, the oxygen and helium tubes must pass through this box.

The solenoid box contains two normally closed solenoid valves. These valves open only when connected to the compressor and the compressor is running. This setup prevents accidental gas flow into the tube and stops the gas supply at the end of the refill and the compressor stops.
In case of an emergency stop or a power failure, the gas supply is stopped, ensuring system safety.

The box includes a switch that disables the solenoid valves, preventing gas flow by keeping the valves closed. Always keep this switch in the OFF position when gas mixtures are not being produced.

Additionally, the processor is programmed to stop the oxygen flow if the oxygen concentration exceeds 45%, preventing potential damage to the compressor from operating with excessively high oxygen levels.
