SKU: Bm5

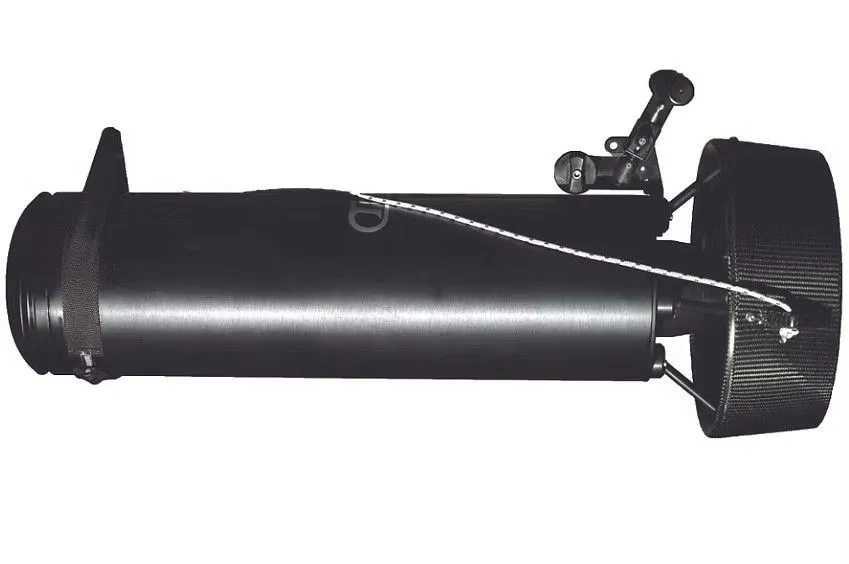

Teseo underwater scooter Bm5

Send inquiry

TESEO Bm5
Duration varies depending on the speed, the position and the equipment of diver, and is misured in continuos ignition.
Duration is specified at max. speed 100% - cruise speed 50% - min speed 30%.

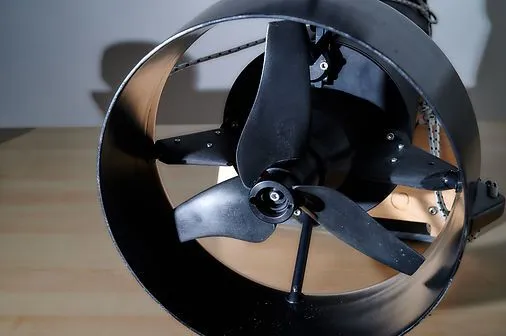

Maximum speed is with the aid of standard propeller with 3 blades and the load of an average diver with double tanks 12+12.
Way of use is choose with the aid of software “Pilota 5” and may be Linear or Sequential.
Neutral trim in fresh and salt water obtained by placing two different weights.

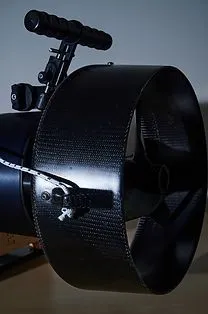

Standard Equipment: Torsion Damper, Propeller Quick Extraction, Carbon Prop Cover

Price is VAT and shipped excluded. Price is valid for EU Countries.
Price: €7,000 + VAT + shipping
Available on request.

MODEL	Bm5
*Use*	Technical

DIMENSIONS & WEIGHT
*Length*	900 mm (35.43″)
*Body Ø*	210 mm (8.27″)
*Prop Cover Ø*	335 mm (13.19″)
*Material*	Marine Aluminum + Carbon
*Total weight*	25 kg (55.12 lb)
*Weight without battery*	14.5 kg (31.97 lb)

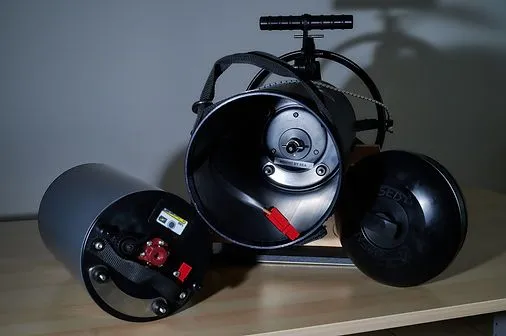

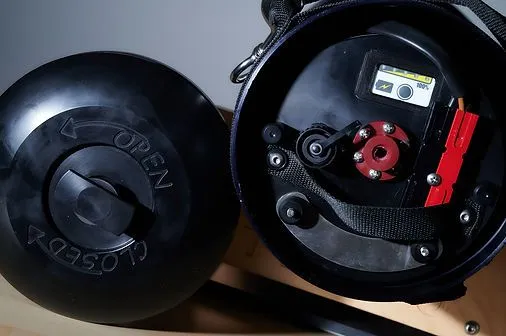

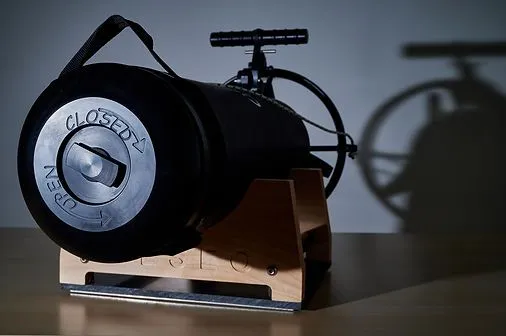

*Closure*	Central screw

BATTERY
*Battery Type*	Li‑ion
*Voltage*	43.2 V
*Nominal Capacity*	1814 Wh
*Power*	42 Ah
*Dry Battery*	Yes
*Cut‑off + Alarms*	Yes
*Residual Battery*	External Viewer/Battery Viewer
*Battery Charger*	90–240 V 50–60 Hz
*Charging Time*	6 h

PERFORMANCE
*Max Thrust*	400 N (90 lbf)
*Max Speed*	100 m/min (328 ft/min)
*Range (Max / Cruise / Min)*	125′ / 250′ / 400′
*Max Depth*	200 m (656.17 ft)
*Water Temperature*	–5 °C / +35 °C (23 °F / 95 °F)
