COLTRI COMOPRESSOR SUPER SILENT Electric

Send inquiry

Listen to its absolute silence

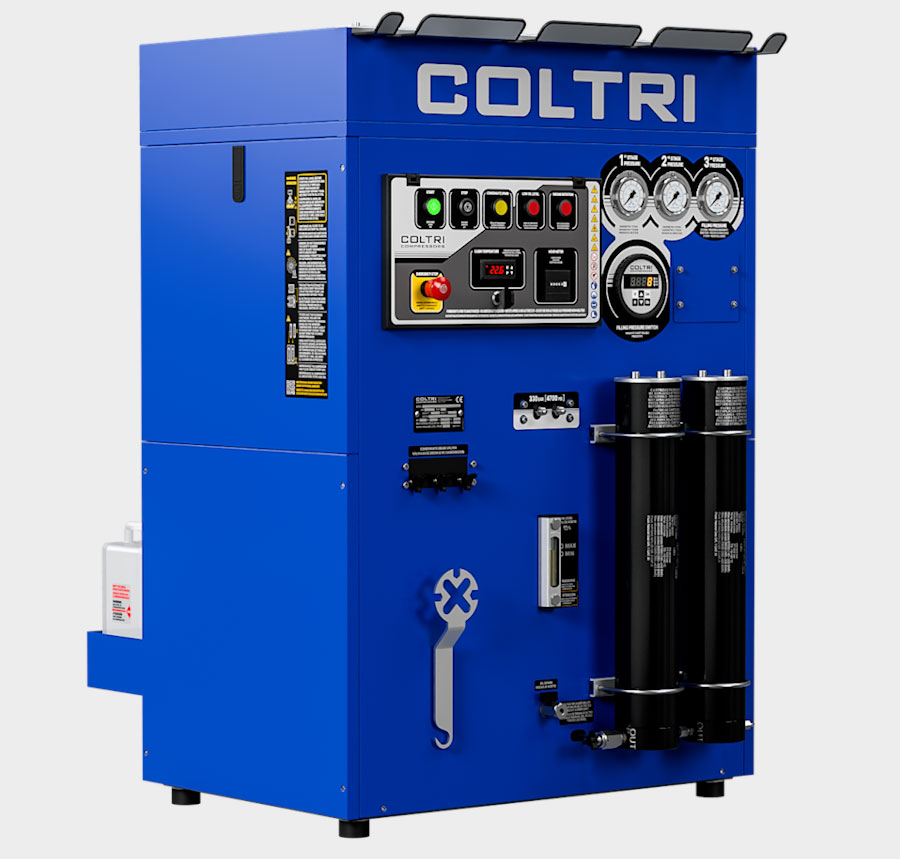

The model Super Silent TPS is specially designed to minimize noise. It features an enhanced cooling and sound insulation system and an efficient filtering system with two Hyperfilter. Powered by electric motor, it is equipped with four different pump units, all in TPS (Tropical Plus Superdry) version, and with an intuitive control panel. For longer filter life, the Tornado high-pressure dryer is recommended.

Simplicity comes as standard
Imagine having a compressor capable of great performance and endowed with extraordinary robustness. What would all this be without absolute simplicity in operating it? We believe that’s what innovation is for: to make it simpler.

And now for all the details

3-stage high pressure pumping unit

Aluminum monoblock
Forced lubrication with low-pressure gear pump
Suction filter: 10 um
Pipes, fittings and nuts made of AISI 316 stainless steel
Intermediate condensate separator after the second stage
Double-acting high-pressure final condensate separators
Safety valves after each compression stage
High heat-dispersion die-cast aluminum cylinders with nicasil barrel coating
Forged aluminum connecting rods
Forged steel crankshaft
Stainless steel second and third stage valves
Heavy-duty roller bearings
Hardened steel third stage with 5 segments made of special cast iron
Second and third stages with thrust pads to eliminate lateral forces on the pistons
Filter system Hyperfilter

Electric motor

One of the basic parts of the compressor: the motor transfers motion to the pumping unit through the belt. Single-phase or three-phase electric motor is available on this model from 5.5 to 7 ,5 kW.

Purification system Hyperfilter

Placed after the last compressor separator and before the pressure maintenance valve, the purification system Hyperfilter enables reliable treatment of the breathing air, according to DIN EN 12021¹ when using original filter cartridges. The separator present between the 2nd and 3rd stages of the purification circuit makes it possible to extract as much moisture as possible. The filtering capacity with inlet air at 20°C and 200 bar is 3,050 m³.

Electrical cabinet

ON/OFF switch with motor protection switch.
Electromechanical pressure switch that stops the compressor at the final pressure.
Drainage of all separators between individual stages and also of the final separator during compressor operation
Timer for automatic condensate drainage device.
Integrated no-load startup (automatic discharge each time the unit is turned off).
Condensate collection tank 5 liters, with silencer; capacity about 3 liters, for environmentally friendly disposal of condensate.
Interstage pressure gauges display the operating pressure for individual compression stages. This pressure information allows the tightness of the valves (inlet and outlet) of each stage to be checked and potential sources of failure to be quickly identified.

Frame

Silenced cab chassis designed and built for easy maintenance operations. Tilting motor carrier plate ensures constant V-belt tension. Compressor operation and maintenance are facilitated by important features and tools: oil level and drain reported externally, control console equipped with inter-stage gauges, internal temperature indicator, presence and wrong phase sequence alarm, oil shortage alarm, and run stop and manual condensate drain controls. Made of steel with scratch-resistant powder coating in RAL 5002 black.
