SKU: ERGO TPS EL.

COLTRI COMPRESSOR ERGO TPS Eletric

Send inquiry

High efficiency, compact format. Simplicity comes as standard

Ergo TPS retains the essential design of the line Ergo, but boosts its performance with an advanced pumping unit. A compact and powerful solution designed for those looking for the best even in small spaces.

Ergo TPS represents the best answer to those who want small-sized breathing air compressors while maintaining high performance. Equipped with several TPS (Tropical Plus Superdry) pumping units, ERGO TPS is powered by an electric motor.

Imagine having a compressor capable of great performance and endowed with extraordinary robustness. What would all this be without absolute simplicity in operating it? We believe that’s what innovation is for: to make it simple

And now for all the details

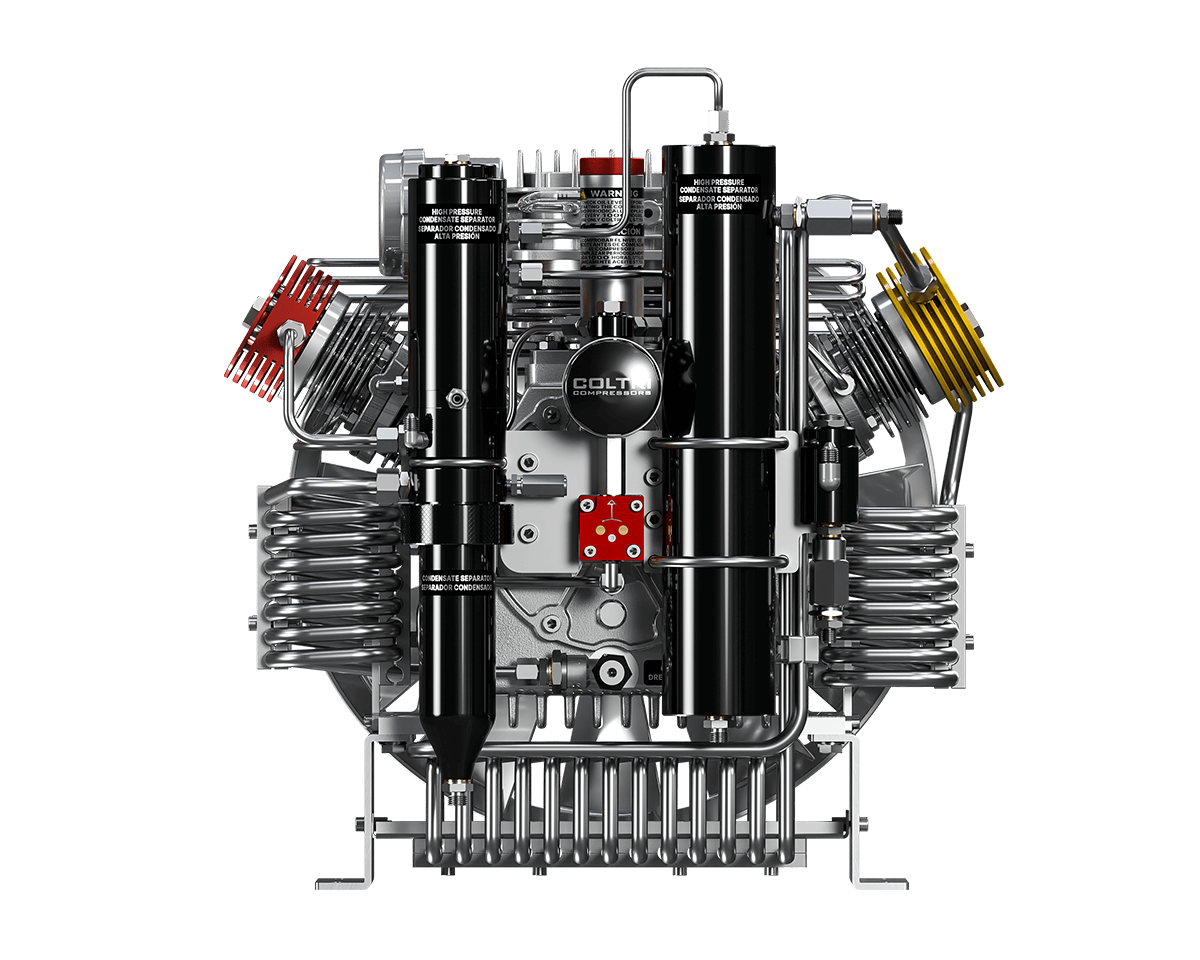

3-stage high pressure pumping unit

Aluminum monoblock
Forced lubrication with low-pressure gear pump
Suction filter: 10 um
Pipes, fittings and nuts made of AISI 316 stainless steel
Intermediate condensate separator after the second stage
Double-acting high-pressure final condensate separators
Safety valves after each compression stage
High heat-dispersion die-cast aluminum cylinders with nicasil barrel coating
Forged aluminum connecting rods
Forged steel crankshaft
Stainless steel second and third stage valves
Heavy-duty roller bearings
Hardened steel third stage with 5 segments made of special cast iron
Second and third stages with thrust pads to eliminate lateral forces on the pistons
Filter system Hyperfilter

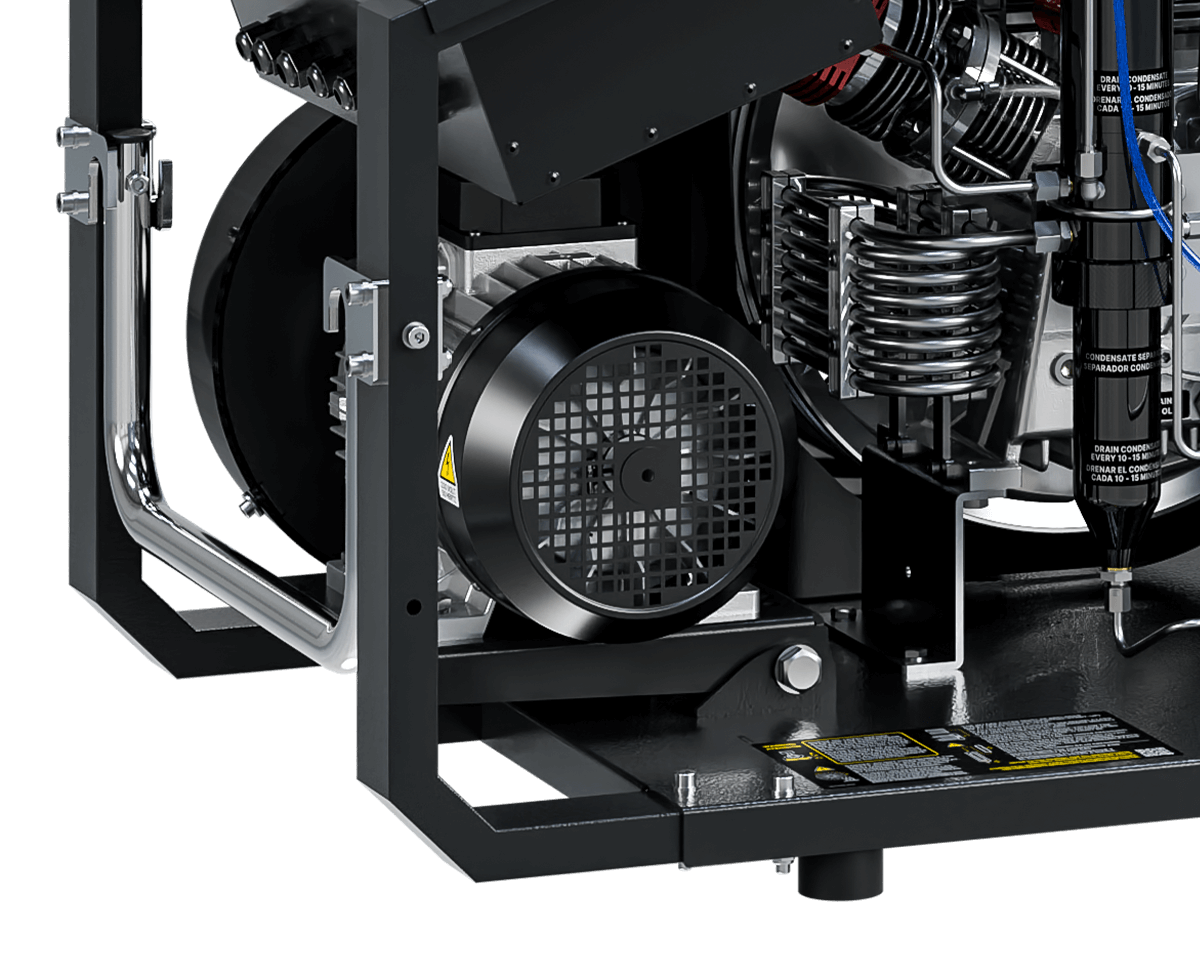

Electric motor

One of the basic parts of the compressor: the motor transfers motion to the pumping unit through the belt. Single-phase or three-phase electric motor is available on this model from 5.5 to 7 ,5 kW.
