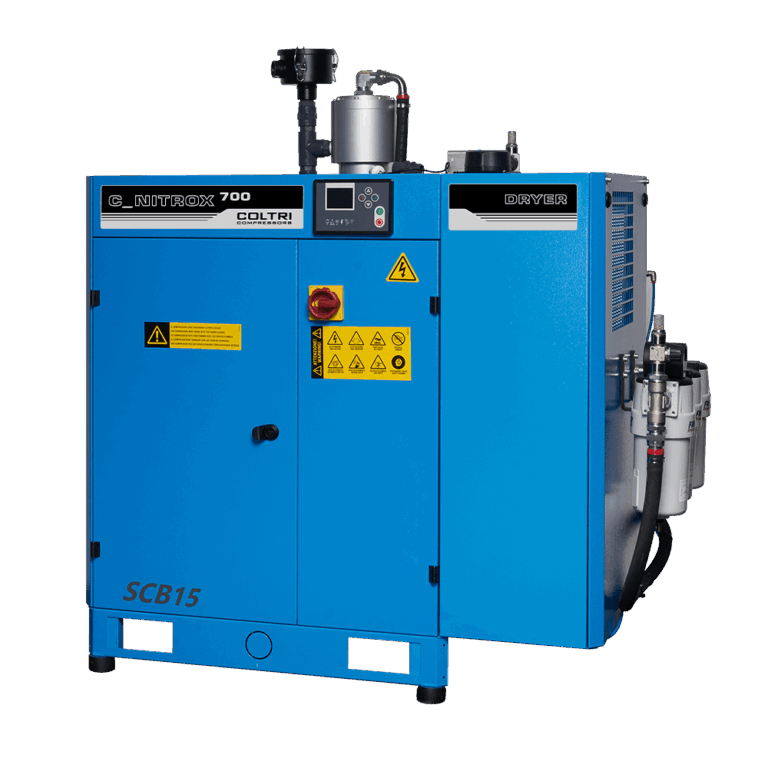

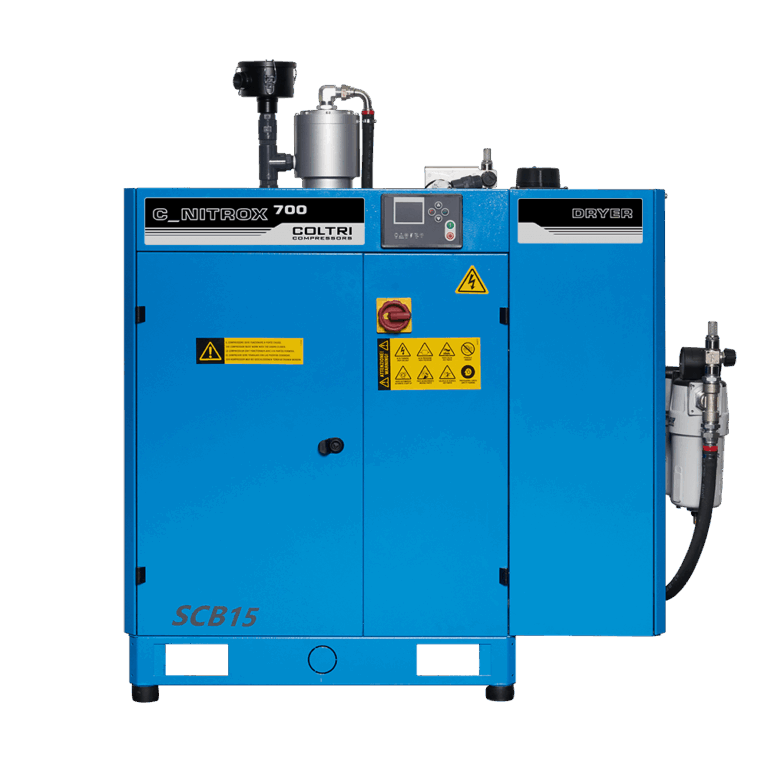

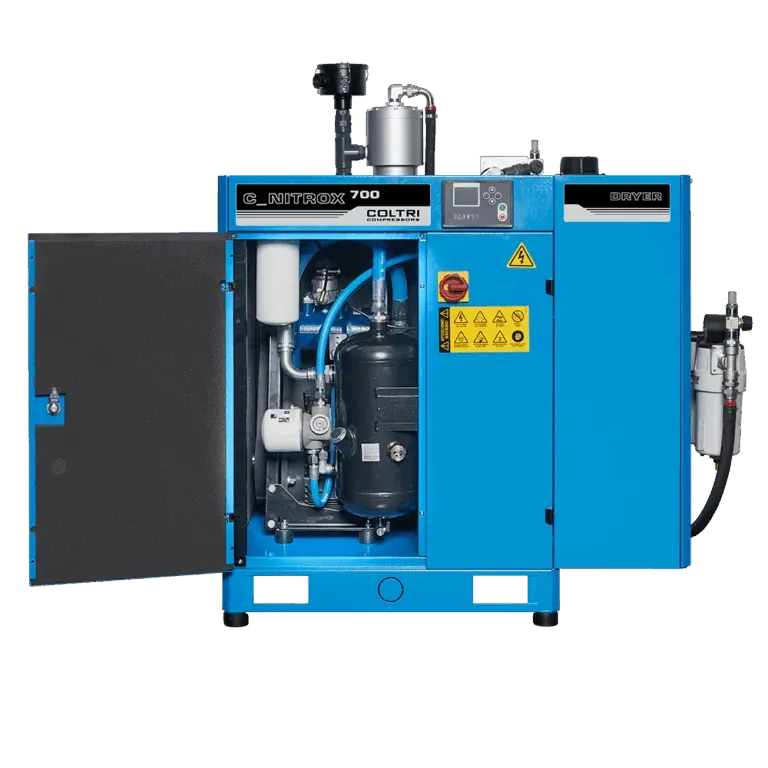

COLTRI COMPRESSOR C-NITROX 700

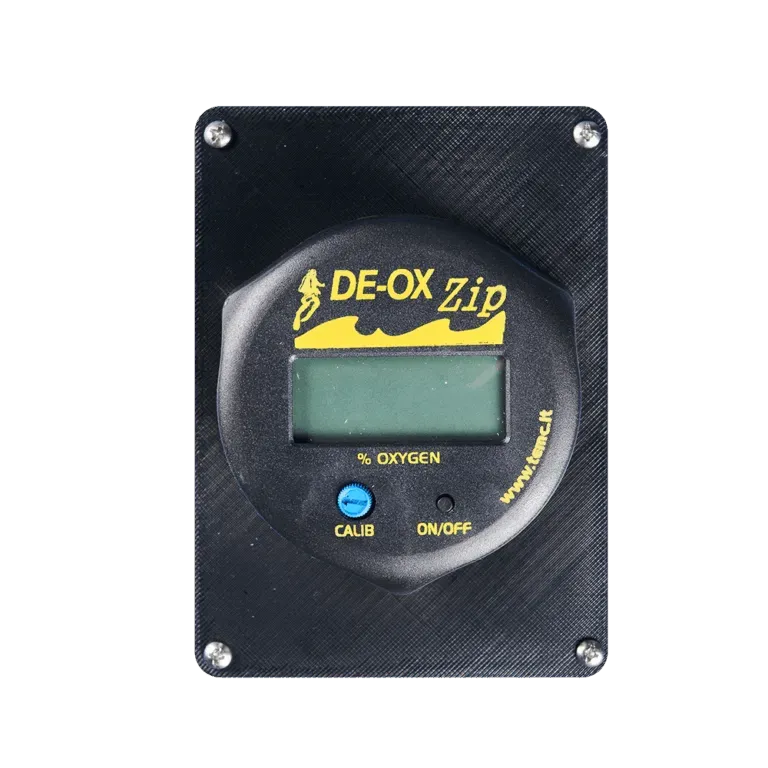

C-NITROX 700 is a Heavy Duty industrial screw compressor that delivers air at a pressure of 12 bar to an OXYSEP 7-15-40 OXYGEN membrane that separates nitrogen and oxygen, up to a maximum of 40 percent oxygen. The enriched air can be compressed to 232 bar in conjunction with a high-pressure compressor. The percentage of oxygen obtained at the outlet can be adjusted up to 40% by means of a valve accessible directly on the top of the compressor. The oxygen analyzer allows the correct percentage to be verified by adjusting it using the appropriate valve.

Standard Equipment

• Electrical cabinet

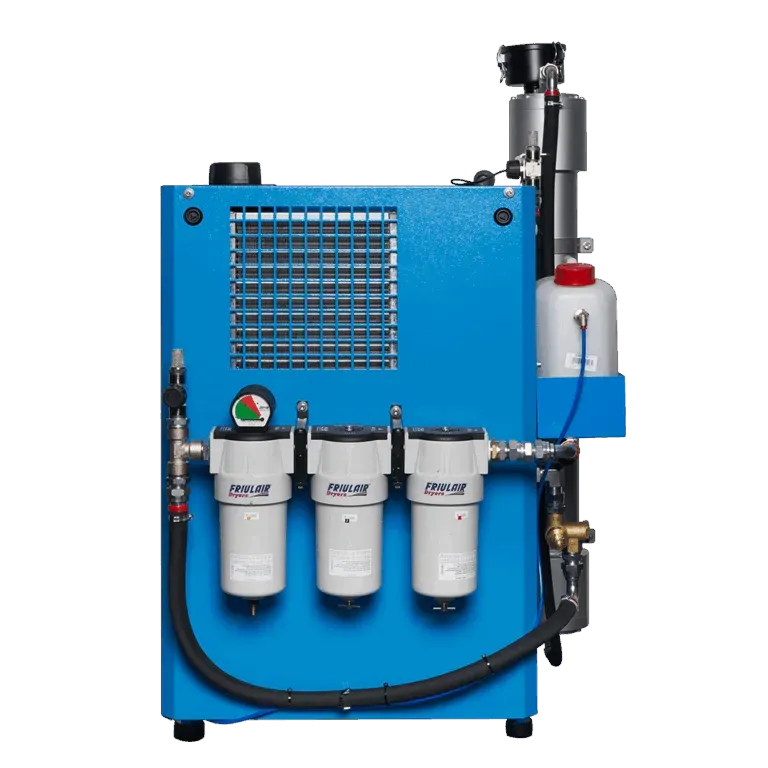

• Automatic condensate drain
• 2 analyzers
• Thermostat
• 1 OXYSEP 7-15-40 OXYGEN Membrane

Notes: operating pressure 232 bar / when using compressors with lower flow rates, the maximum oxygen percentage is always guaranteed.

Engine:
Electric three-phase 400 V - 50 Hz

Scope:
2.000 l/min - 120 m3/h - 70.6 CFM

Operating pressure:
10 bar - 145 PSI

Net weight (appr.):
296 kg - 652.5 lb

Dimensions (W x D x H):
117 x 78 x 129 cm - 46 x 30.7 x 50.7 in
