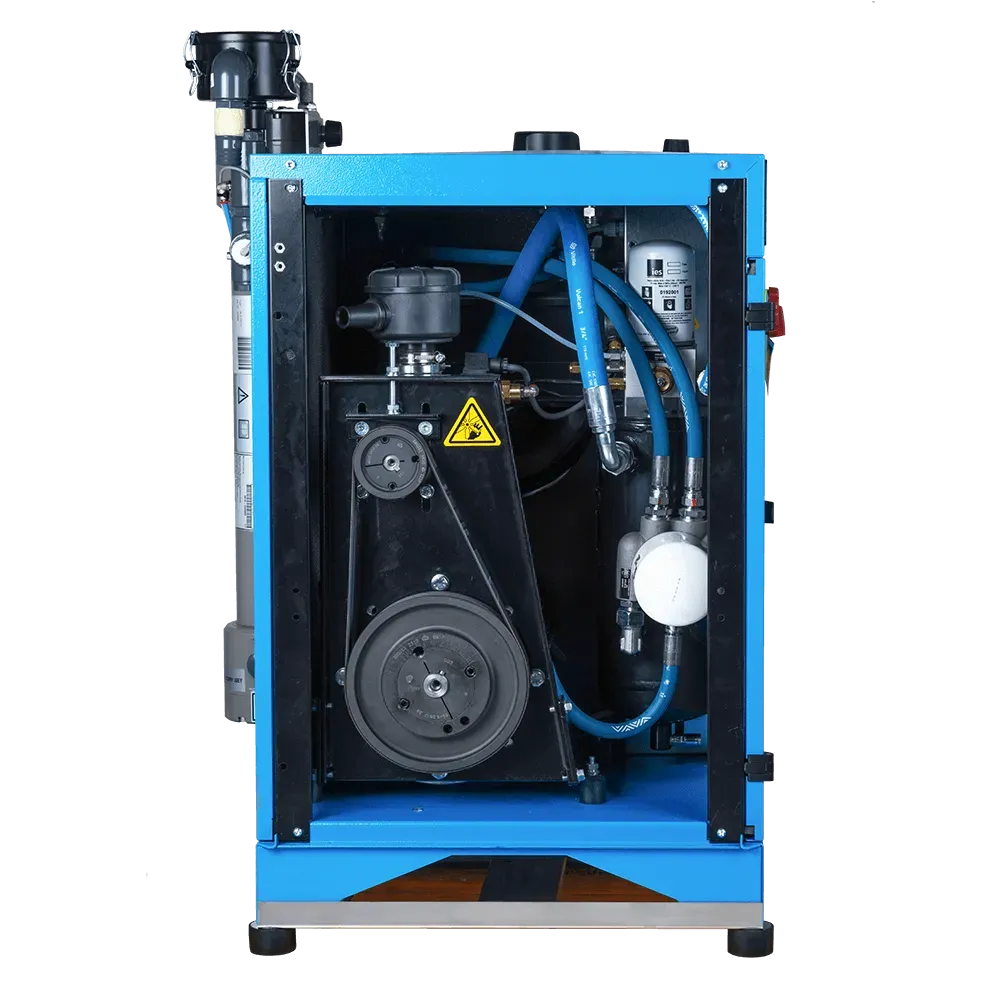

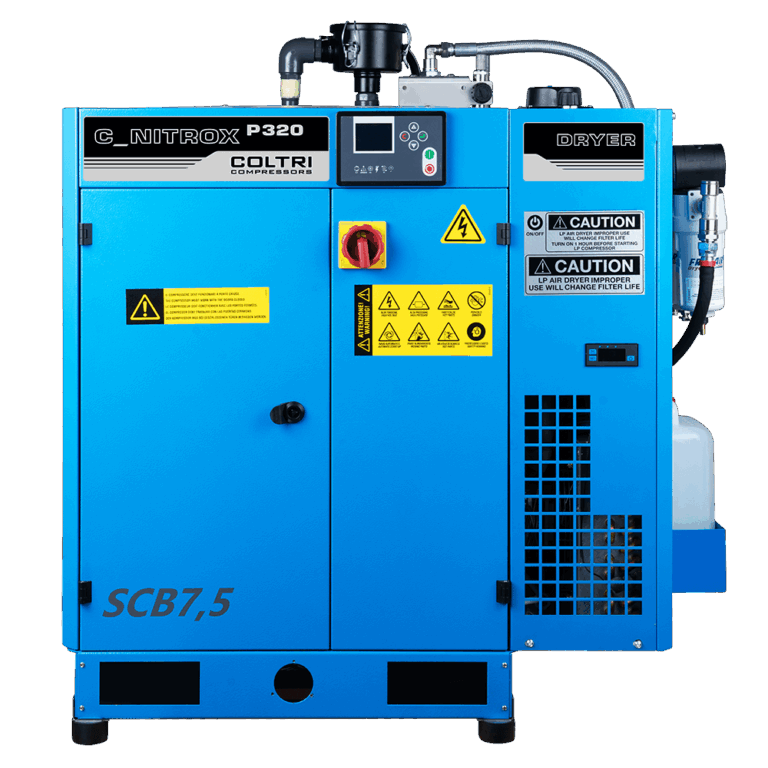

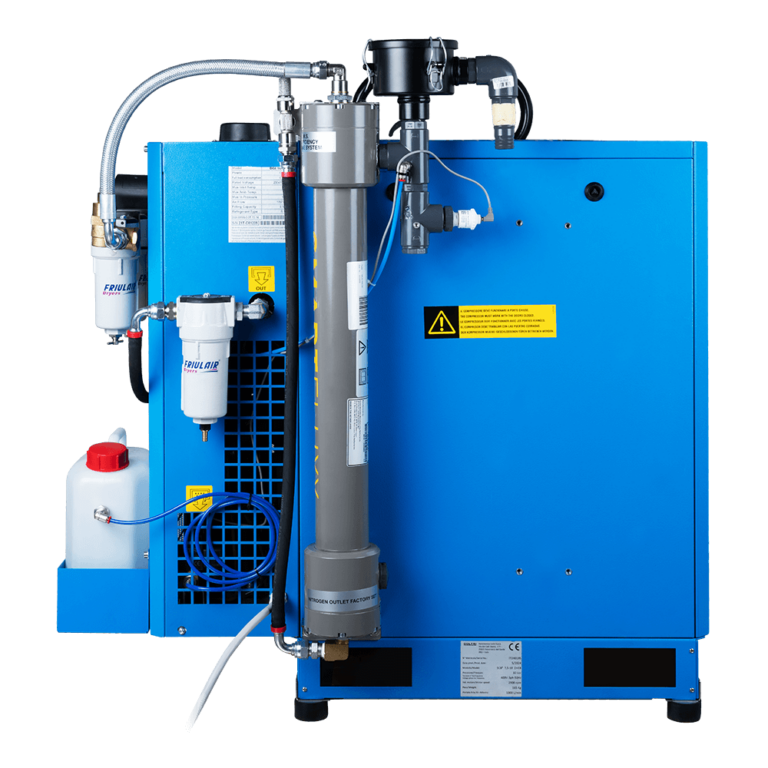

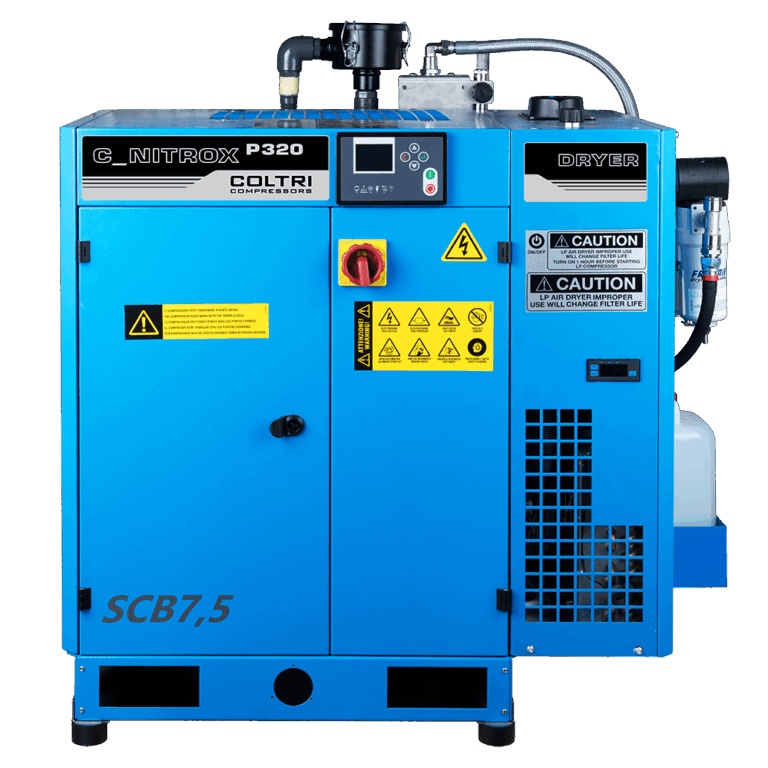

COLTRI COMPRESSOR C-NITROX P320

C-NITROX P320 is a Heavy Duty industrial screw compressor that delivers air at a pressure of 10 bar to a Parker membrane that separates nitrogen and oxygen, up to a maximum percentage of 36 percent oxygen. The enriched air can be compressed to 232 bar in conjunction with a high-pressure compressor. The percentage of oxygen obtained at the outlet can be adjusted up to 36% by means of a valve accessible directly on the top of the compressor. The oxygen analyzer allows the correct percentage to be verified by adjusting it using the appropriate valve.

Standard Equipment

• Electrical cabinet
• Automatic condensate drain
• 2 analyzers
• Thermostat
• 1 Parker membrane

Notes: operating pressure 232 bar / when using compressors with lower flow rates, the maximum oxygen percentage is always guaranteed.

Engine:
Electric three-phase 400 V - 50 Hz

Scope:
1.070 l/min - 64.2 m3/h - 37.7 CFM

Operating pressure:
10 bar - 145 PSI

Net weight (appr.):
228 kg - 502 lb

Dimensions (W x D x H):
101 x 75 x 123 cm - 39.7 x 29.5 x 48.4 in
