COLTRI compressor C-NITROX 700
Inquiry for: COLTRI compressor C-NITROX 700
COLTRI' s NITROX Line consists of Heavy Duty industrial screw compressors that deliver air at a pressure of 10 bar towards a membrane that separates nitrogen and oxygen up to a maximum percentage of 40% of oxygen.
The enriched air can be compressed to 232 bar in combination with a high pressure compressor.
The percentage of oxygen obtained at the outlet can be adjustedup to 40% thanks to a valve accessible directly on the top of the compressor.

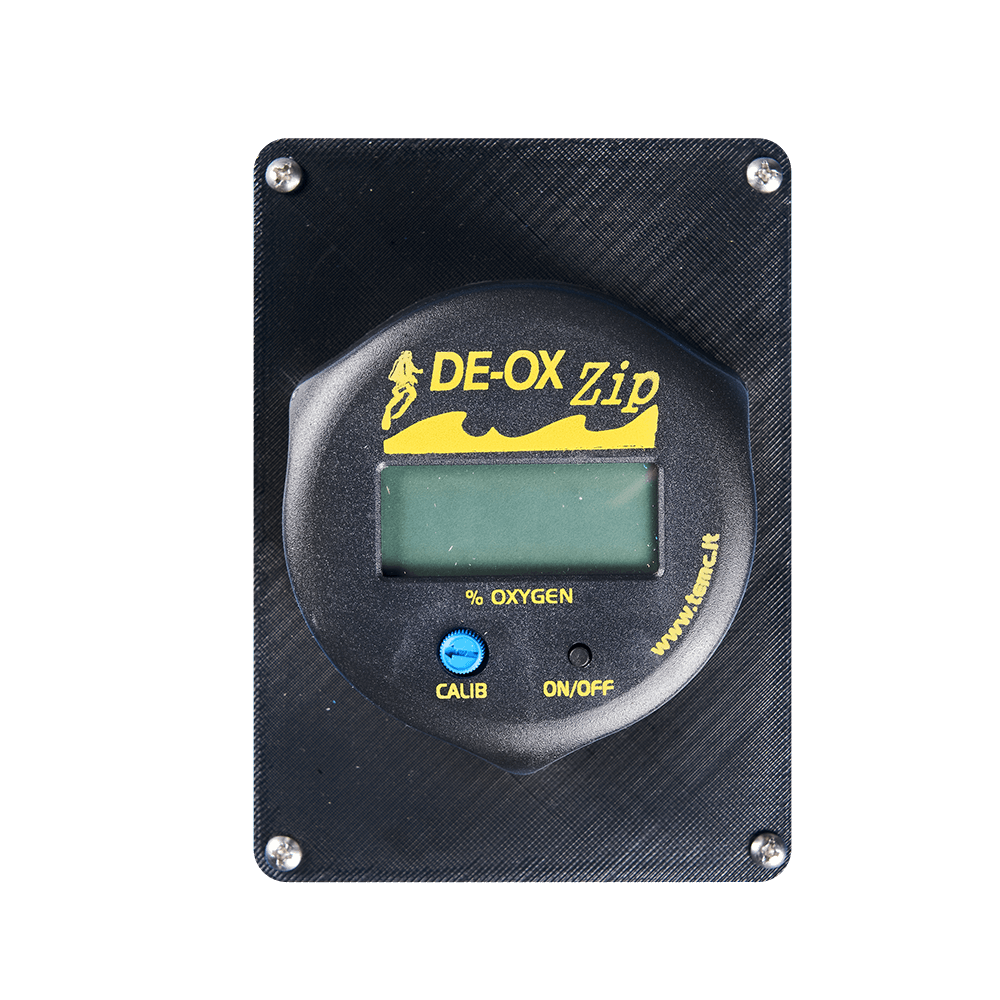

The oxygen analyzer allows you to check the correct percentage, adjusting it through the appropriate valve.
C-NITROX 700 – Technical Specifications
| Model (Code) | Drive | Power | Charging rate | Working pressure |
|---|
| C-NITROX 700 (SC000827/700) | Three-phase 230 V 60 Hz | 15 kW | 2000 l/min 120 m³/h 70.6 cfm | 12 bar 175 psi |
| C-NITROX 700 (SC000826/700) | Three-phase 400 V 50 Hz | 15 kW | 2000 l/min 120 m³/h 70.6 cfm | 12 bar 175 psi |
| C-NITROX 700 (SC000828/700) | Three-phase 440 V 60 Hz | 15 kW | 2000 l/min 120 m³/h 70.6 cfm | 12 bar 175 psi |
Dimensions: 17 x 78 x 129 cm (46 x 30.7 x 50.7 in); Weight: 296 kg (652.5 lbs)
Standard Equipment:
- Electric switchboard
- Inside cabin temperature thermostat with automatic shutdown
- Automatic condensate drain
- 2 analyzer - on LP and HP compressor
Oxygen percentage:
| Model | % O₂ | Flow Rate |
|---|
| C-NITROX P320 | 36% | 315 L/min |
| C-NITROX 400 Analyzer | 40% | 315 L/min |
| C-NITROX 700 | 40% | 450 / 650 L/min |
