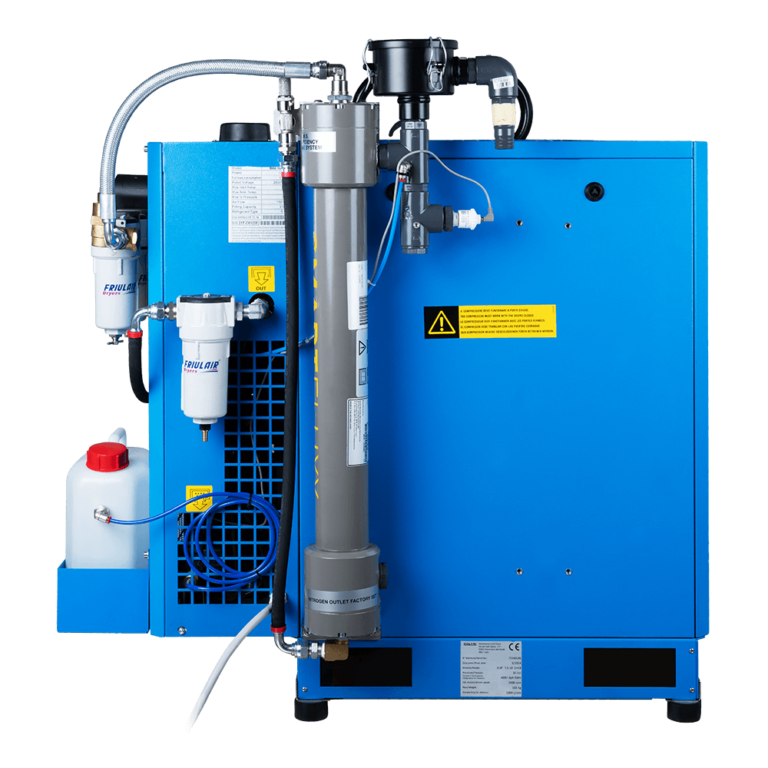

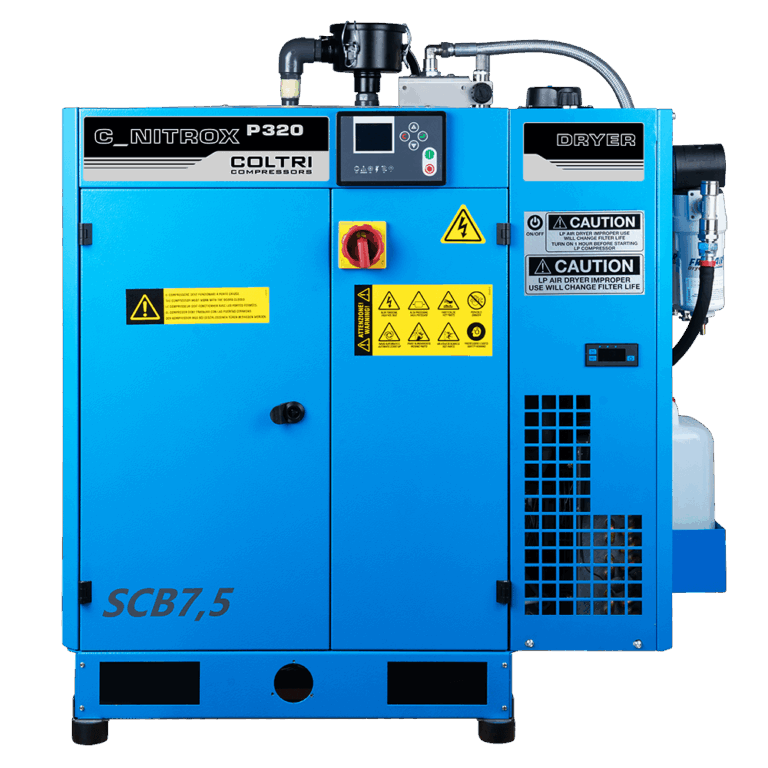

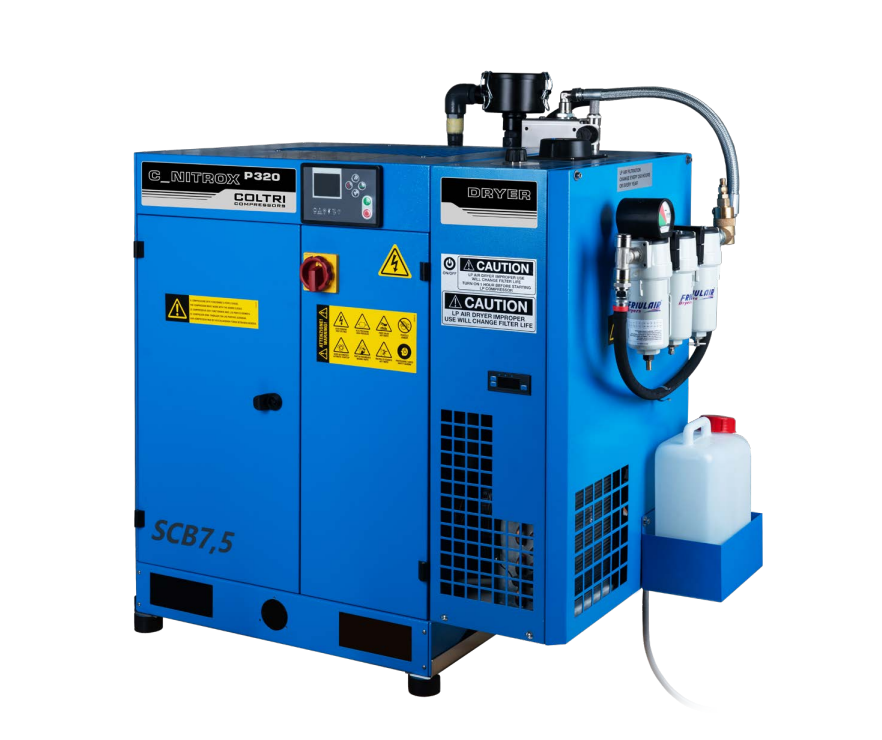

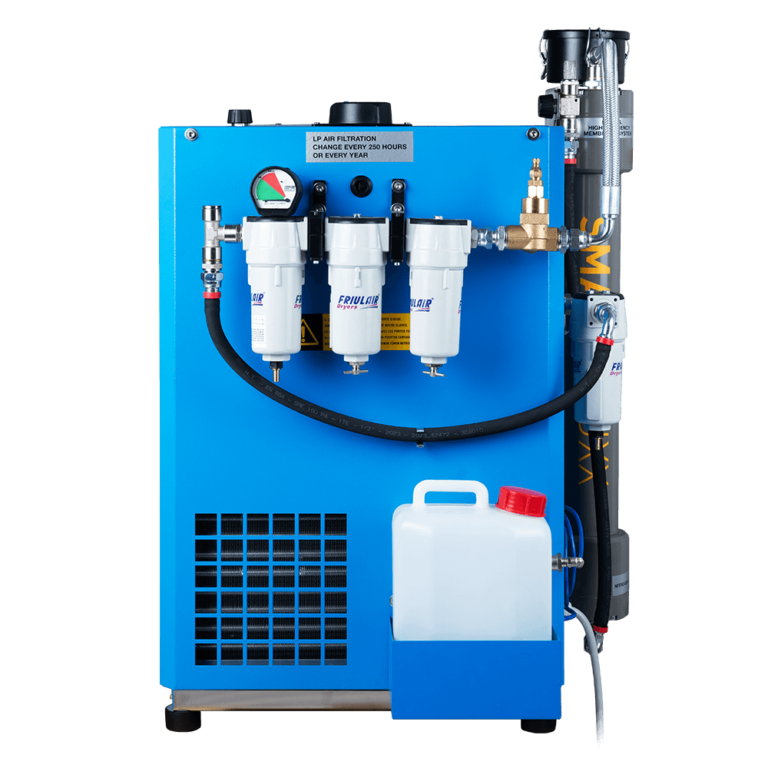

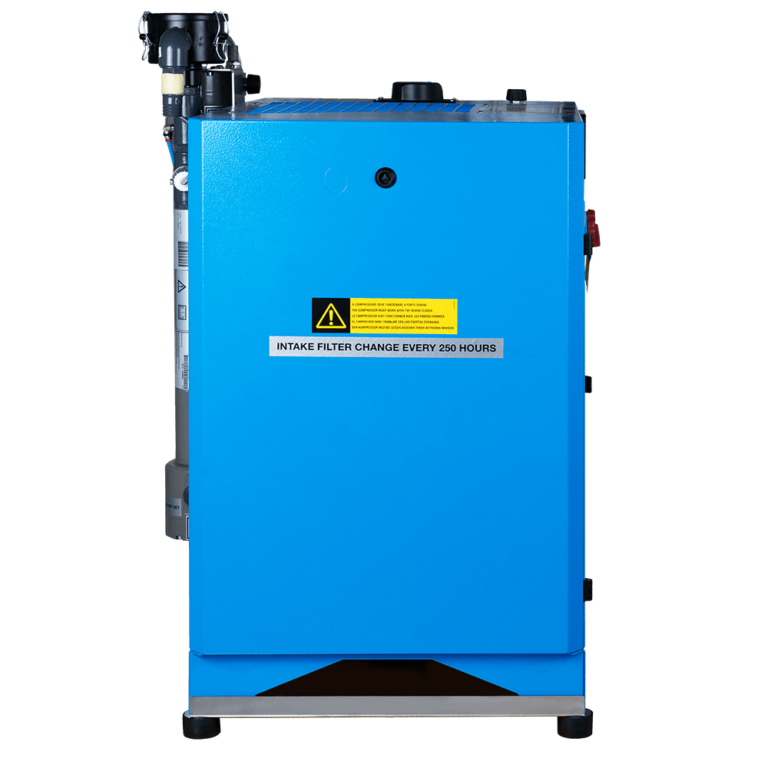

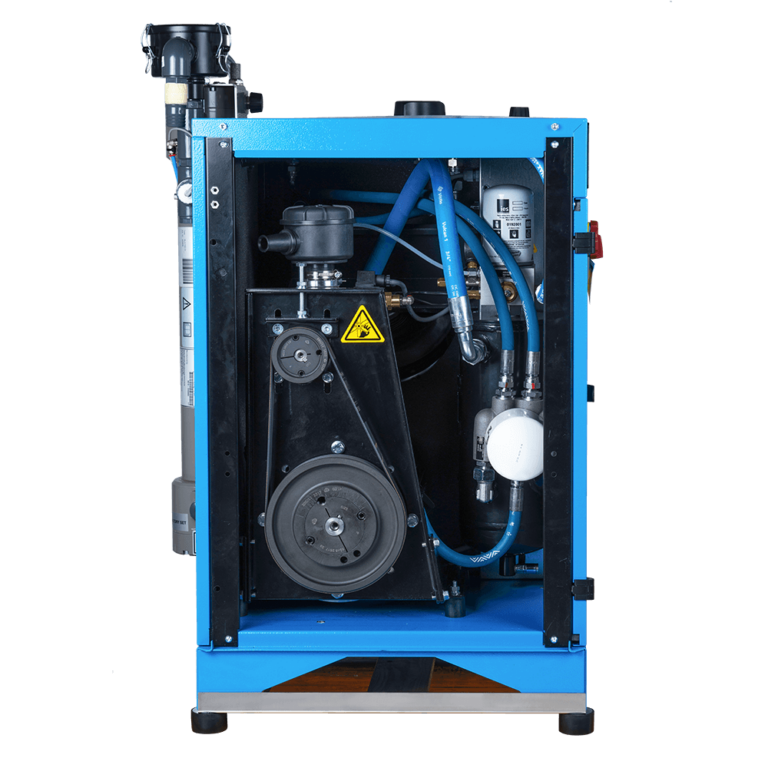

COLTRI compressor C-NITROX P320
Inquiry for: COLTRI compressor C-NITROX P320
COLTRI' s NITROX Line consists of Heavy Duty industrial screw compressors that deliver air at a pressure of 10 bar towards a membrane that separates nitrogen and oxygen up to a maximum percentage of 40% of oxygen.
The enriched air can be compressed to 232 bar in combination with a high pressure compressor.
The percentage of oxygen obtained at the outlet can be adjustedup to 40% thanks to a valve accessible directly on the top of the compressor.
The oxygen analyzer allows you to check the correct percentage, adjusting it through the appropriate valve.
C-NITROX P320 – Technical Specifications
| Model (Code) | Drive | Power | Charging rate | Working pressure |
|---|
| C-NITROX P320 (SC000827/320) | Three-phase 230 V 60 Hz | 7.5 kW | 1070 l/min 64.2 m³/h 37.7 cfm | 10 bar 145 psi |
| C-NITROX P320 (SC000826/320) | Three-phase 400 V 50 Hz | 7.5 kW | 1070 l/min 64.2 m³/h 37.7 cfm | 10 bar 145 psi |
| C-NITROX P320 (SC000828/320) | Three-phase 440 V 60 Hz | 7.5 kW | 1070 l/min 64.2 m³/h 37.7 cfm | 10 bar 145 psi |

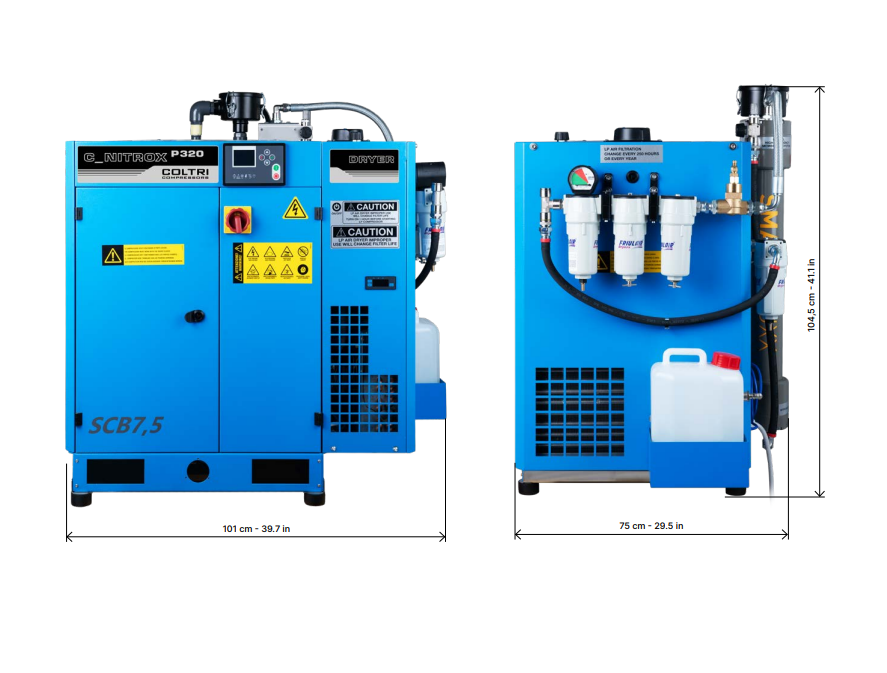

Dimensions: 101 x 75 x 104.5 cm (39.7 x 29.5 x 41.1 in); Weight: 205 kg (452 lbs)
Standard Equipment:
- Electric switchboard
- Inside cabin temperature thermostat with automatic shutdown
- Automatic condensate drain
- 2 analyzer - on LP and HP compressor
Oxygen percentage:
| Model | % O₂ | Flow Rate |
|---|
| C-NITROX P320 | 36% | 315 L/min |
| C-NITROX 400 Analyzer | 40% | 315 L/min |
| C-NITROX 700 | 40% | 450 / 650 L/min |
