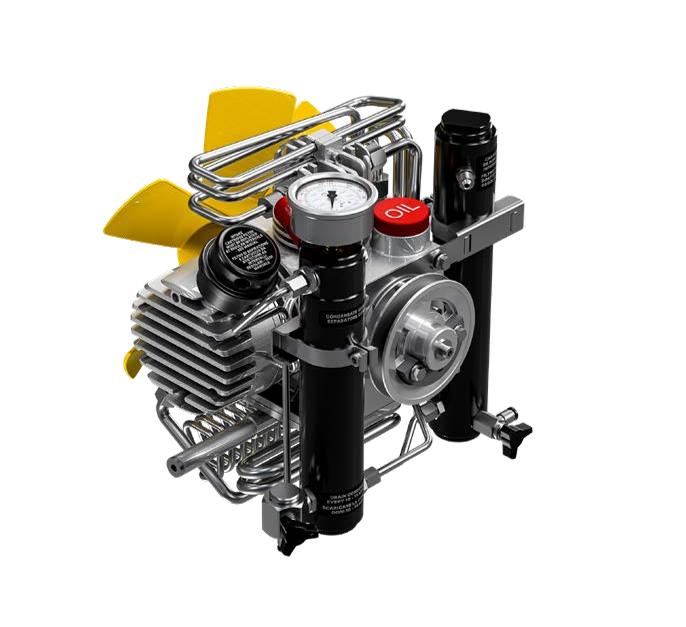

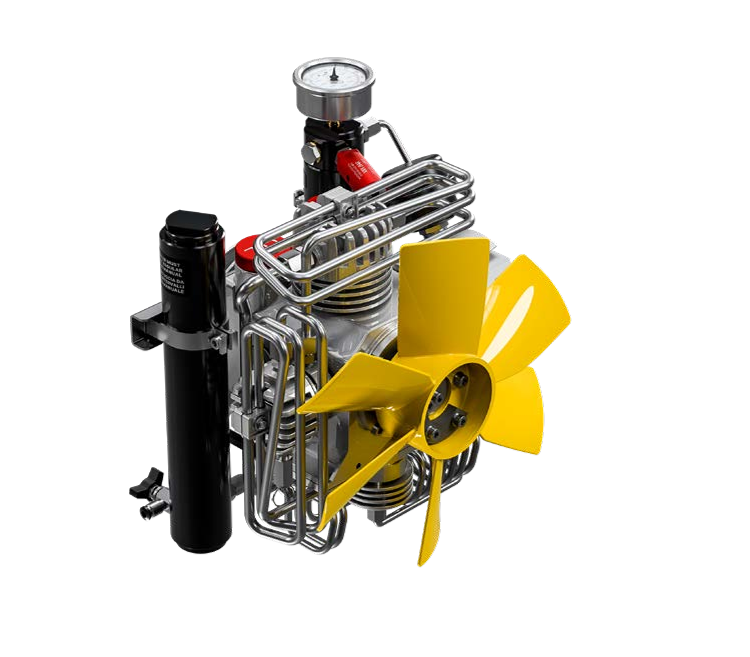

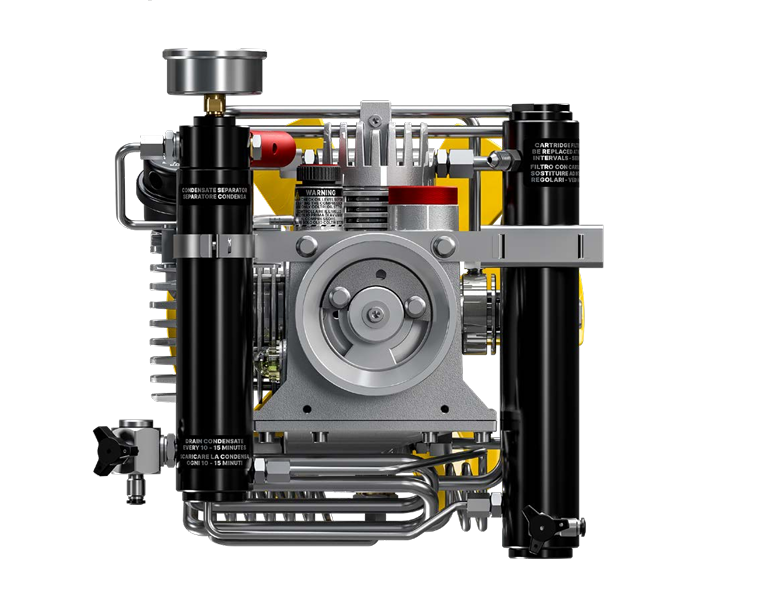

Coltri pumping unit MCH 6 with filter & separator
It is not possible to add the selected quantity of this product to the cart
Inquiry for: Coltri pumping unit MCH 6 with filter & separator
Coltri pumping units are built on over 60 years of experience, combining proven engineering with modern manufacturing technology. Designed and produced entirely in-house, each component meets high standards of precision, reliability, and durability.
Thanks to continuous innovation and strict quality control, these units deliver efficient performance and long service life, making them a dependable choice for professional use.
| Charging rate
Measured during 10 liters cylinder filling from 0-200 bar tolerance +/- 5% at + 20 ° C ambient temperature. | 100 l/min – 3.5 m³/h – 3.5 cfm |
| Nominal pressure | 230 bar / 330 bar |
| Max working pressure | 330 bar |
| Speed RPM | 2,500 rpm |
| Max speed | 2,800 rpm |
| Min speed | 1,400 rpm |
| Number of stages | 4 |
| Number of cylinders | 4 |
| Cylinder bore – 1st stage | 78 mm (3.07 in) |
| Cylinder bore – 2nd stage | 38 mm (1.49 in) |
| Cylinder bore – 3rd stage | 19 mm (0.74 in) |
| Cylinder bore – 4th stage | 9.7 mm (0.38 in) |
| Stroke | 13.5 mm (0.53 in) |
| Direction of rotation | Right – clockwise (from flywheel side) |
| Drive type | V-belt (A type) |
| Intermediate pressure – 1st stage | ~4.5 bar (65.2 psig) |
| Intermediate pressure – 2nd stage | ~16 bar (232 psig) |
| Intermediate pressure – 3rd stage | ~75 bar (1,087 psig) |
| Oil amount | 360 ml (12.1 fl oz) |
| Max intake pressure | 1.3 bar (18.8 psig) |
