SKU: MG060039SD111F3.

MPS booster C1X Sport

5.388,00 €

Including VAT (25%)

Quantity

Select product options (MAX OUTLET PRESSURE) so it can be added to cart.

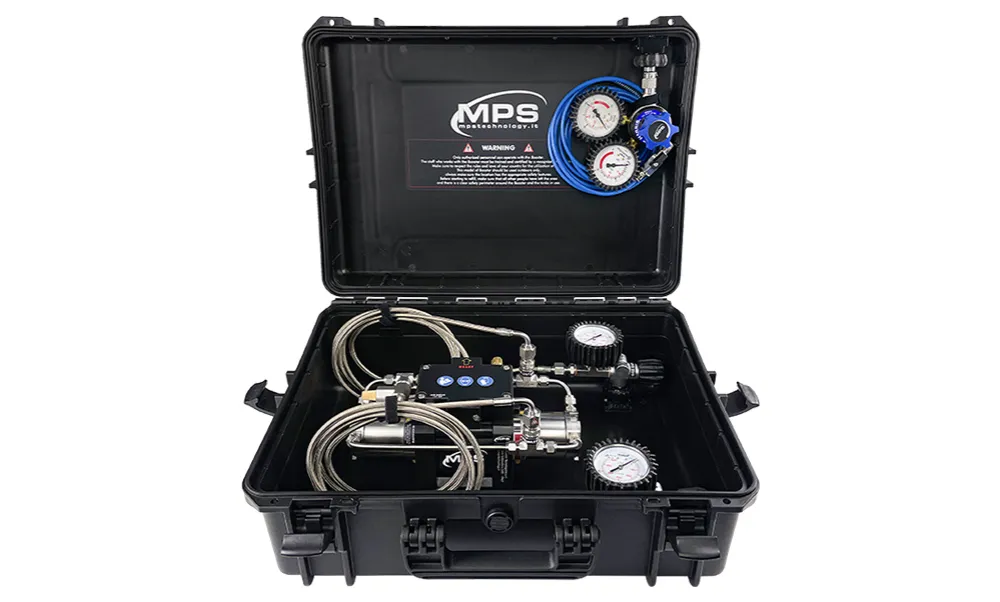

AIR DRIVEN PORTABLE GAS BOOSTER
DOUBLE ACTING - SINGLE STAGE
The new Sport line is designed to be the most portable, lightest and most complete filling system ever created.
The C1X is built with an innovative system that significantly reduces air consumption during the filling operation.

Send inquiry

Applications

CCR Divers
Technical Divers
Small groups of Divers

Benefits

Annual HP maintenance, BP maintenance every 5 years
Robustness and reliability
Protection of the operator
Double steel braided hoses with Teflon coating to ensure oxygen compatibility and no deposit on the hose
Delivered complete and ready to use

Technical data

TRASMISSION RATIO: 1:39
DISPLACEMENT: 2x8 cm3 (0.4882 in3)
MIN SUCTION PRESSURE: 5 bar (70 psi)
MAX DRIVE AIR PRESSURE: 6 bar (85 psi) / 8 bar (115 psi)
MAX OUTLET PRESSURE: 230 bar (3336 psi) / 310 bar (4500 psi)
AIR DRIVE INLET CONNECTION: Micro Quick Connection 1/4”
AIR DRIVE HOSE LENGHT: 3 m
GAS INLET CONNECTION: 3 m SST Braid Hose, Filter, Valve with Purge, 63 mm 0-400 Bar Gauge, DIN 300
GAS OUTLET CONNECTION: 3 m SST Braid Hose, Valve with Purge, 63 mm 0-400 Bar Gauge, DIN 300 or M26x2
WEIGHT: 8.0 kg (17.64 lb)
DIMENSIONS (LxWxH): 555 x 428 x H211 mm
SERVICE: OXYGEN SERVICE
