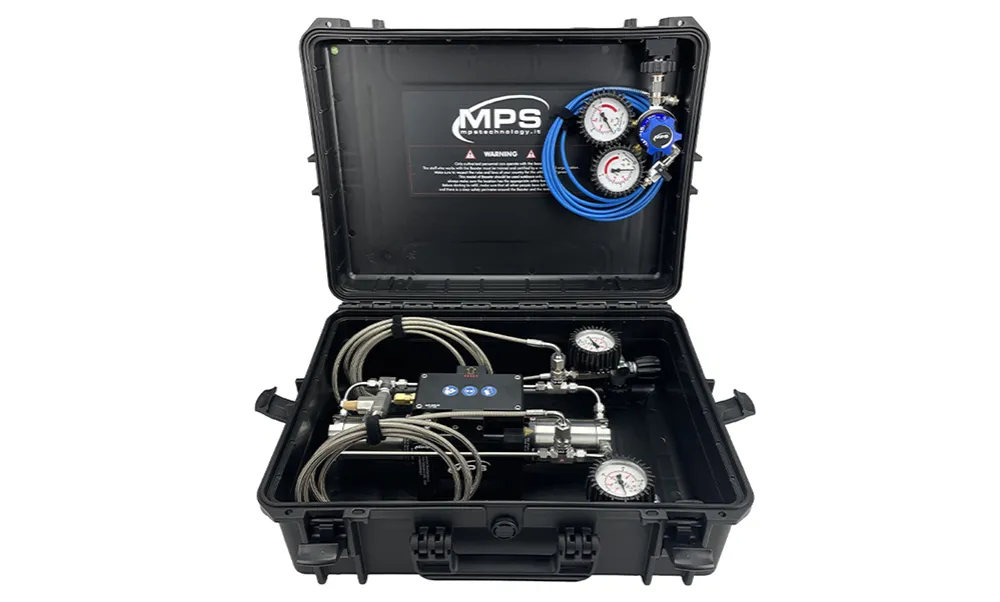

MPS booster C2X Sport

Applications

• CCR Divers
• Technical Divers
• Large groups of Divers

Benefits

• Annual HP maintenance, BP maintenance every 5 years
• Robustness and reliability
• Protection of the operator
• Double steel braided hoses with Teflon coating to ensure oxygen compatibility and no deposit on the hose
• Delivered complete and ready to use

Technical data

• TRASMISSION RATIO: 1:25
• DISPLACEMENT: 2 x 19 cm3 (2 x 1.16 in3)
• MIN SUCTION PRESSURE: 5 bar (70 psi)
• DRIVE AIR PRESSURE: 8 bar (115psi) / 10 bar (145 psi)
• MAX OUTLET PRESSURE: 230 bar (3336 psi) / 310 bar (4500 psi)
• AIR DRIVE PRESS. REGULATOR: HP and LP gauges, Speed Adj. Valve, 3 m Tube with Mi.Quick Conn. 1/4”, DIN 300
• AIR DRIVE INLET CONNECTION: Micro Quick Connection 1/4”
• GAS INLET CONNECTION: 3 m SST Braid Hose, Filter, Valve, Purge, 63 mm 0-400 Bar Gauge, DIN 300 con.
• GAS OUTLET CONNECTION: 3 m SST Braid Hose, Valve , Purge, 63 mm 0-400 Bar Gauge, DIN 300 or M26x2
• WEIGHT: 14.2 kg (31.31 lb)
• DIMENSIONS (LxWxH): 555 x 428 x H211 mm
• SERVICE: OXYGEN SERVICE

Models

• CODE: MG040025SD122H1.230 - C2X Sport- 230 bar (3336 psi)
• CODE: MG040025SD122H1.310 - C2X Sport - 310 bar (4500 psi)
