SKU: .SC002033/TPS

COLTRI compressor ERGO TPS 270 EM

12.788,00 €

Including VAT (25%)

Send inquiry

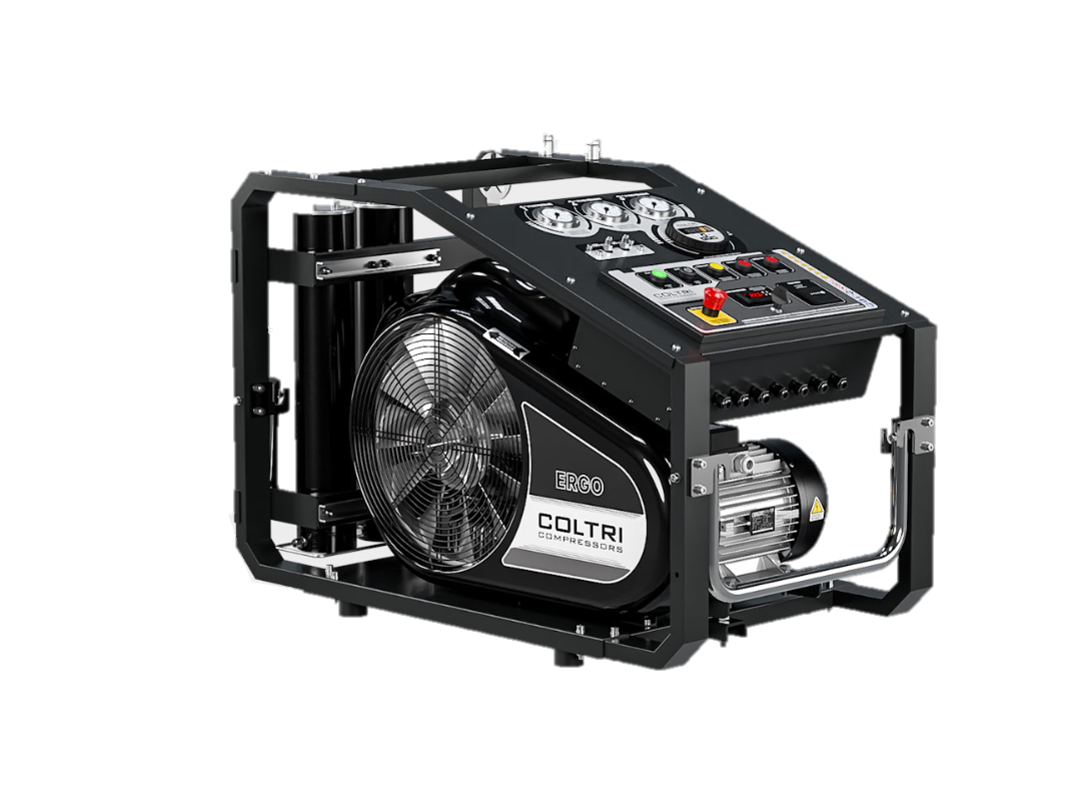

Ergo TPS retains the essential design of the line Ergo, but boosts its performance with an advanced pumping unit. A compact and powerful solution designed for those looking for the best even in small spaces.

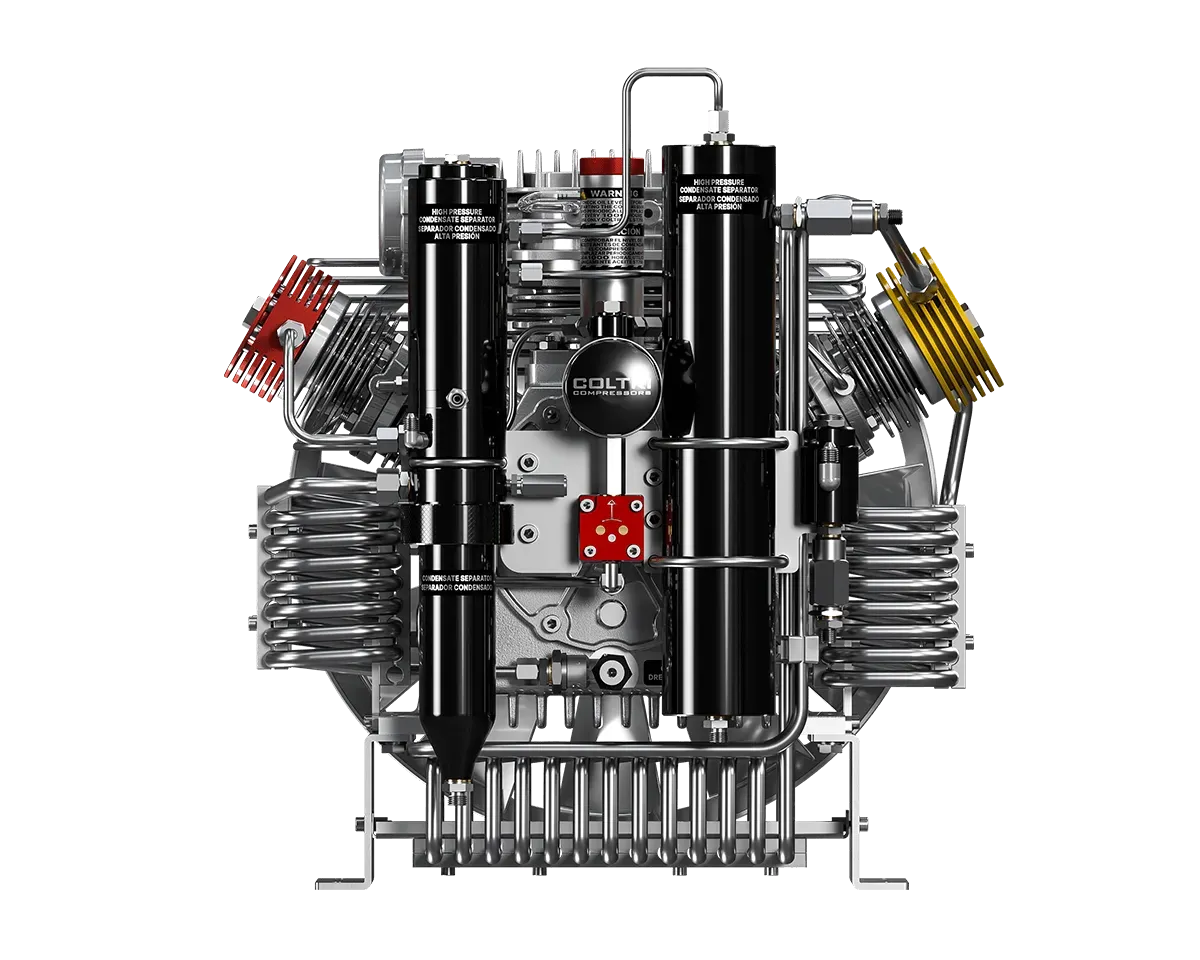

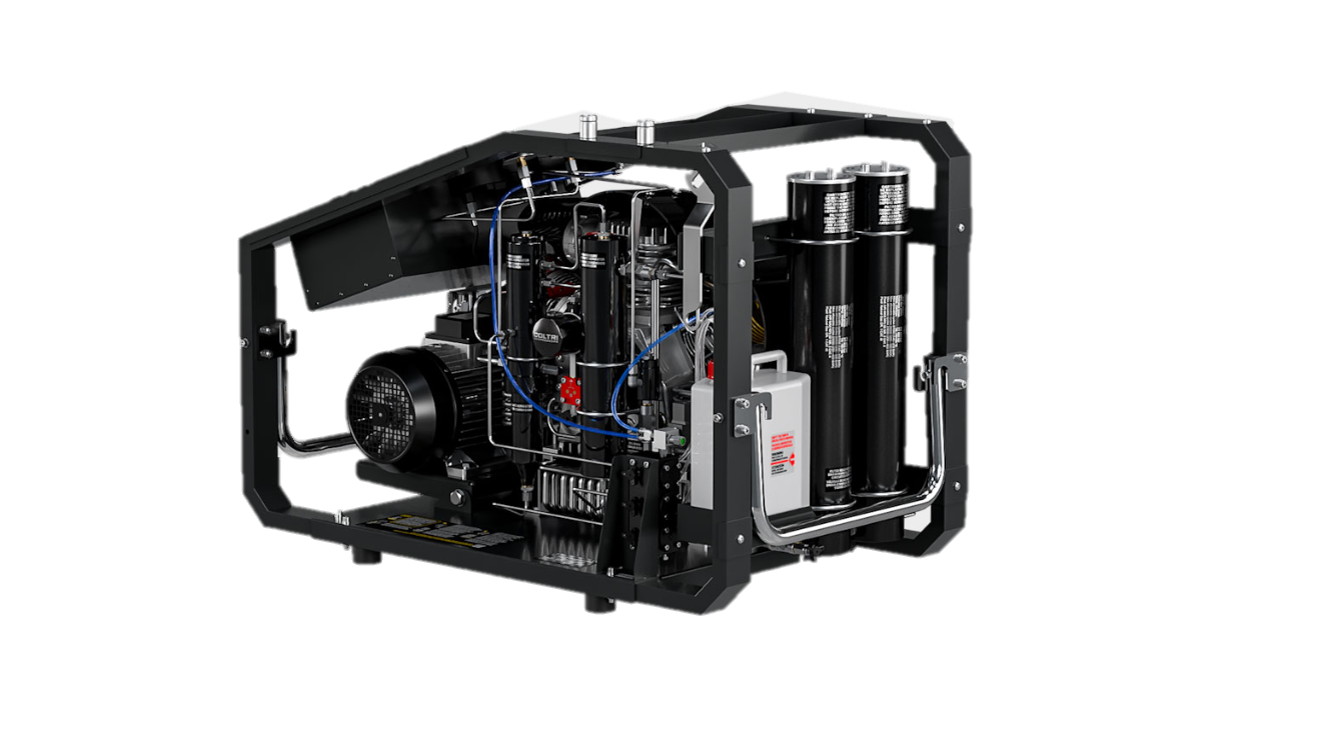

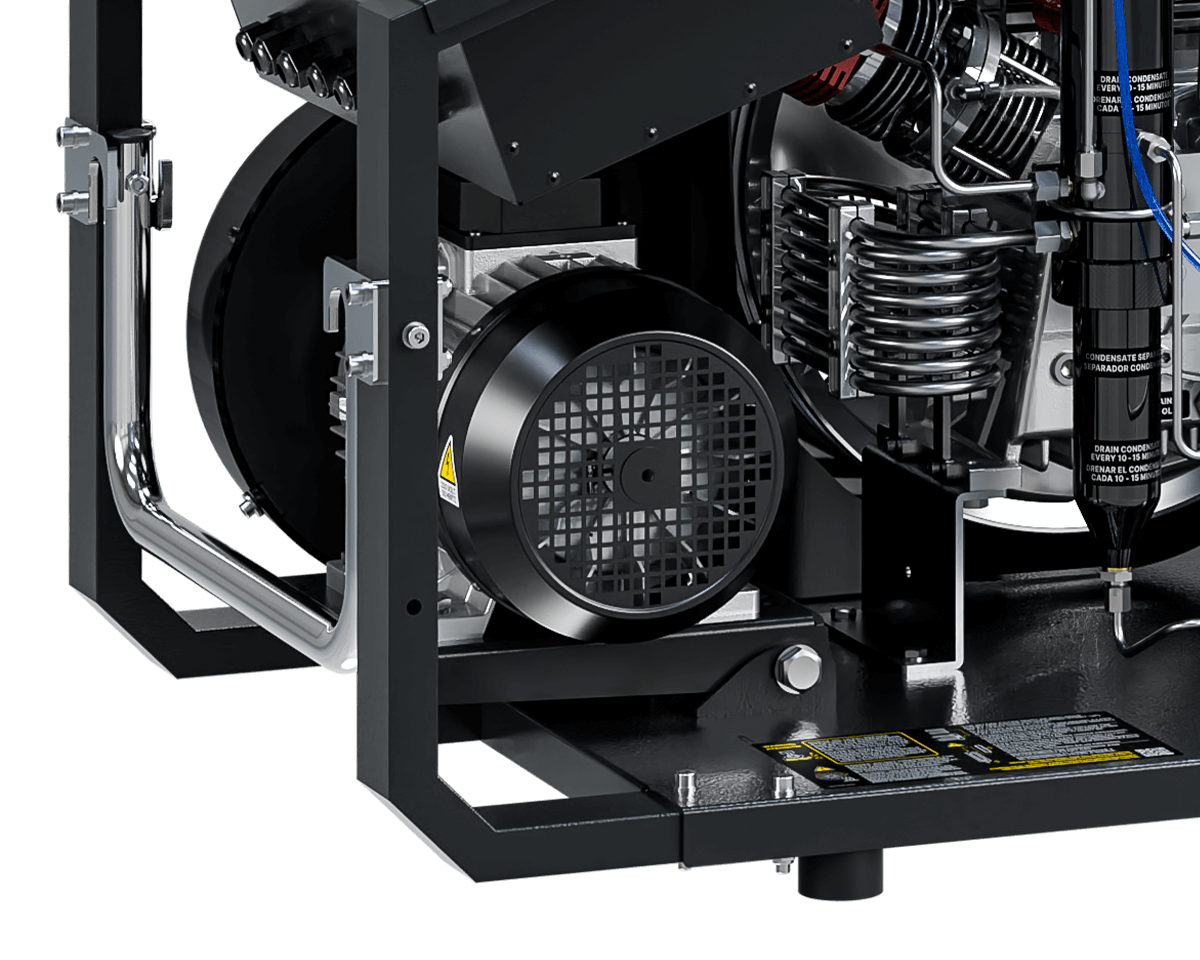

Ergo TPS represents the best answer to those who want small-sized breathing air compressors while maintaining high performance. Equipped with several TPS (Tropical Plus Superdry) pumping units, ERGO TPS is powered by an electric motor.

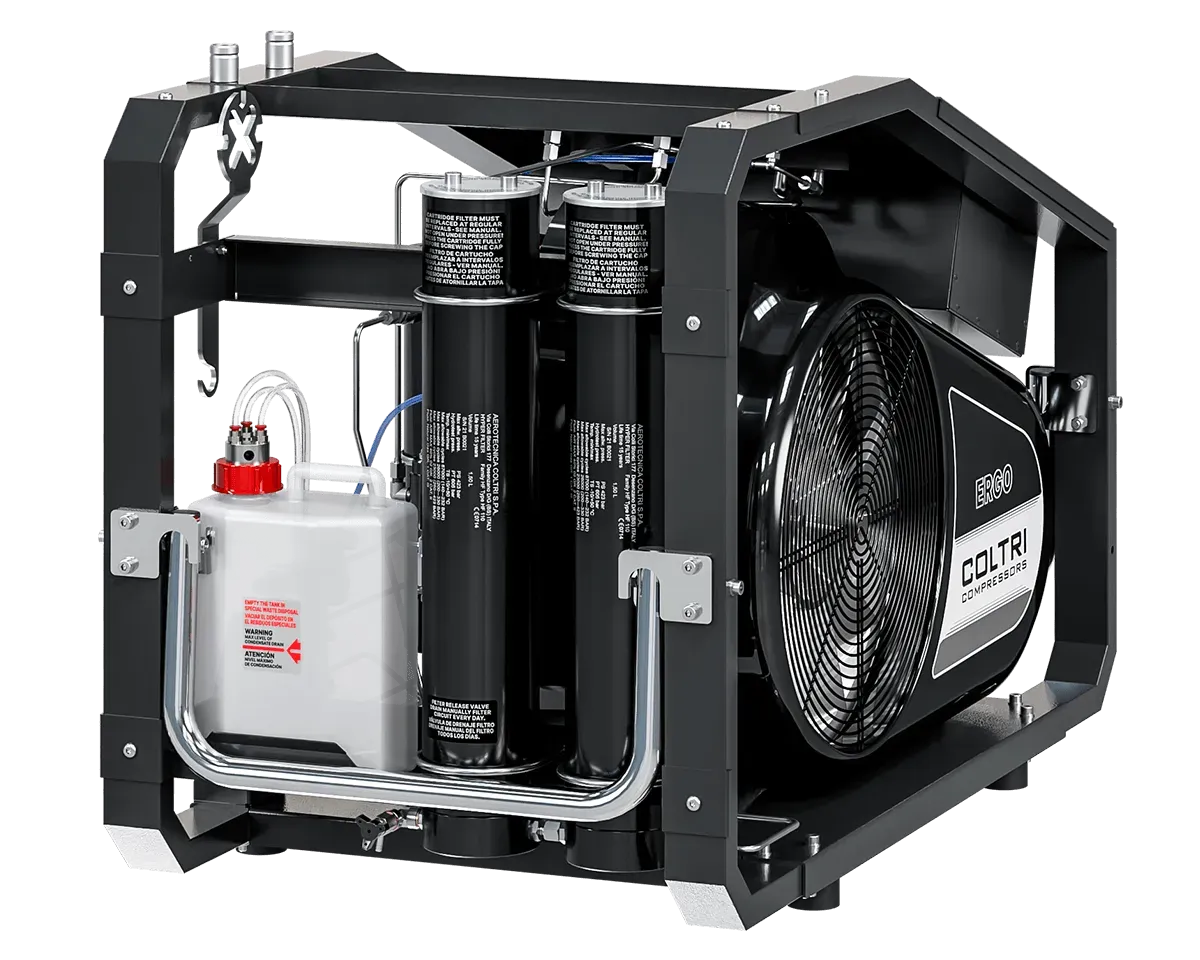

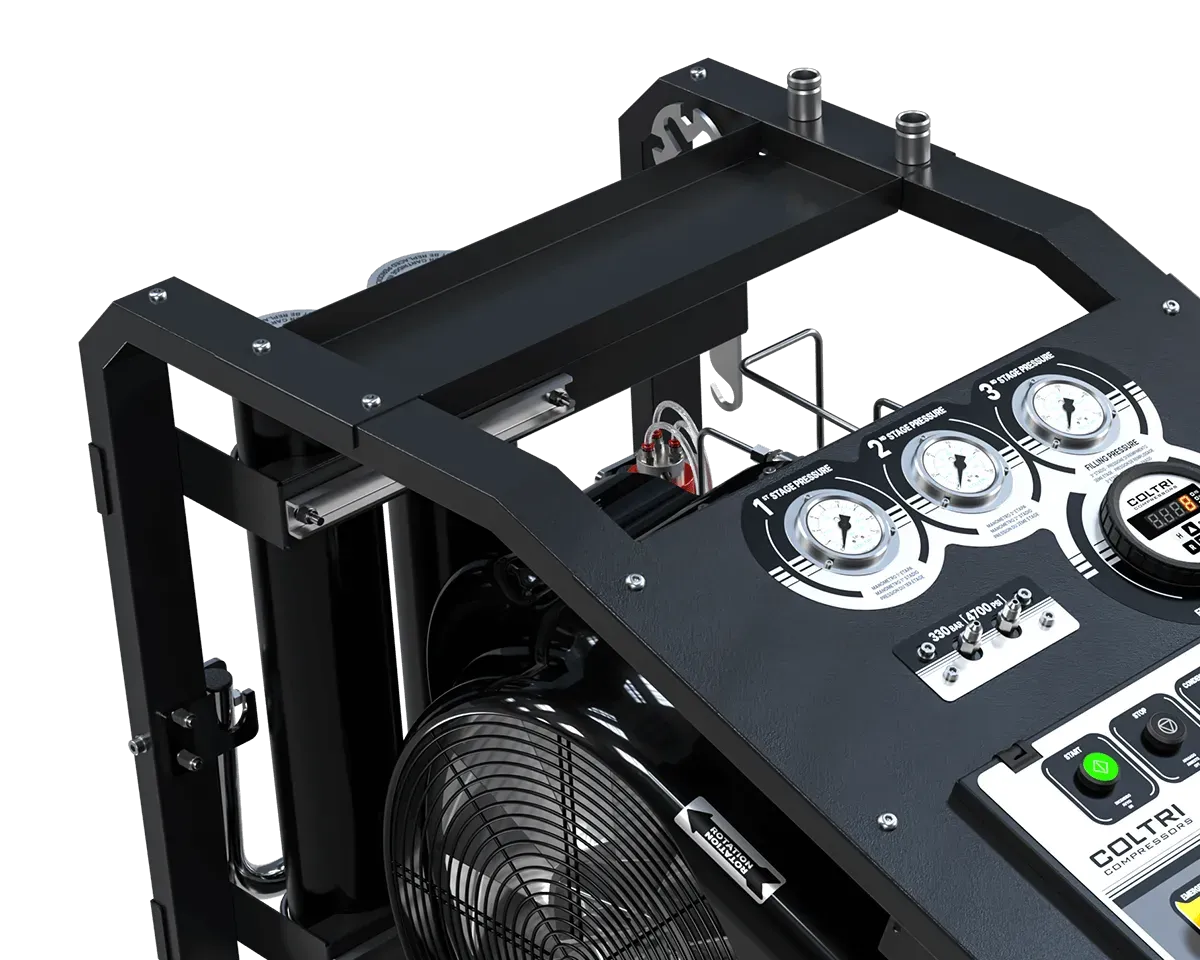

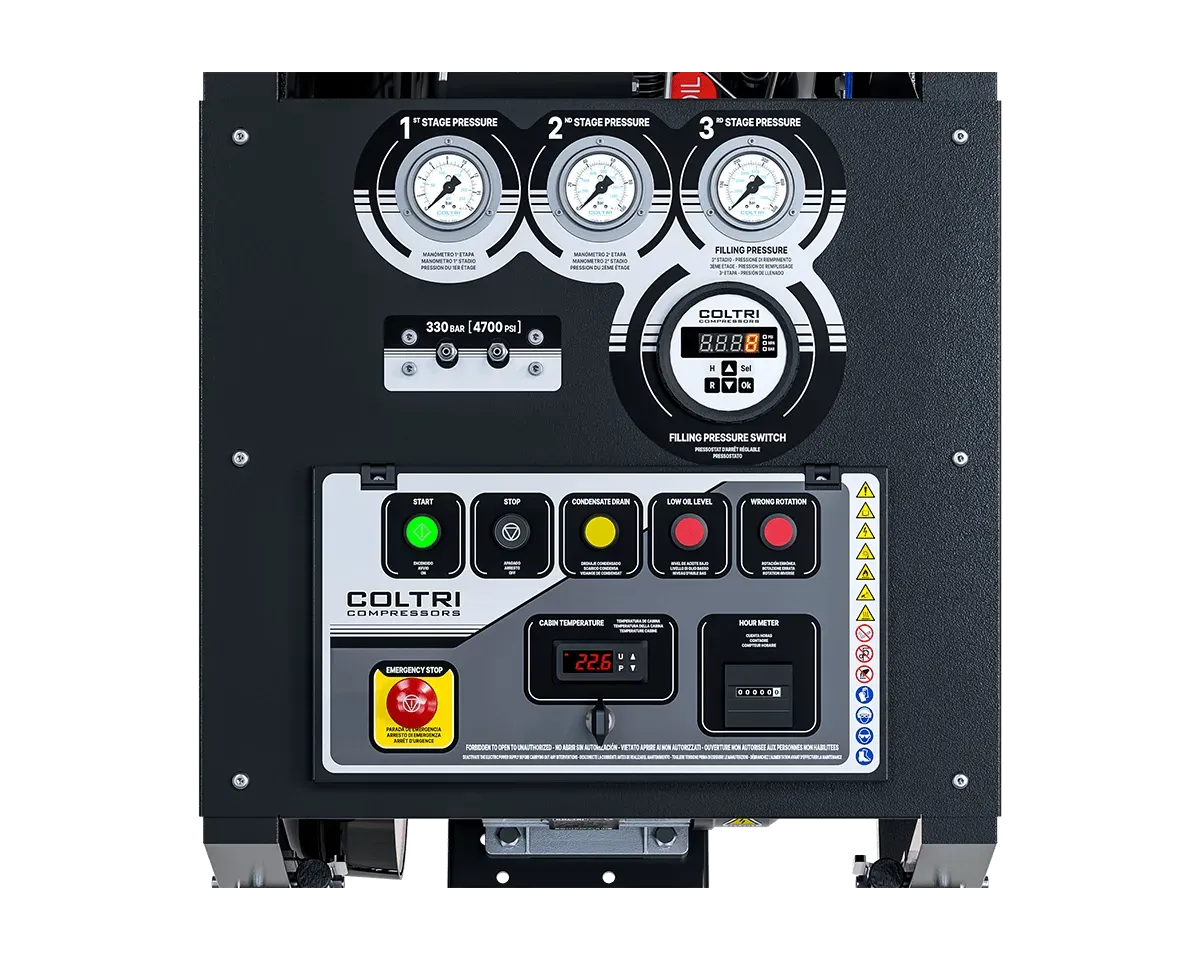

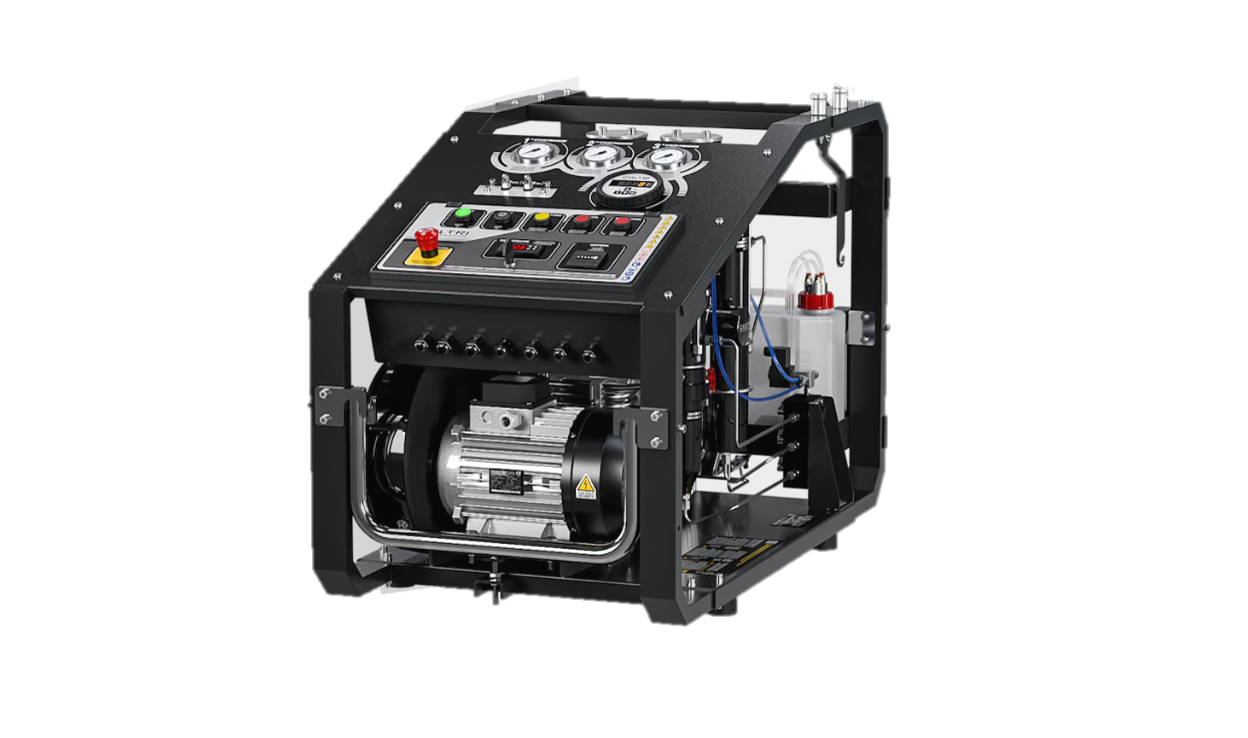

It has a panel with a monitoring system complete with pressure gauges, autostop with adjustable electronic pressure switch, automatic condensate drainage, and rotation direction control. It is also equipped with two high-pressure hose connections and an increased filtration system with two Hyperfilter.
Optionally, the remote charging panel can be added.

Air purity and quality are two indispensable features of our compressors. The air you breathe from Coltri compressors complies with EN 12021:2014 standards: that’s why with them you can work, have fun, practice in absolute safety.

ERGO TPS 270 EM – Technical Specifications

Code: SC002033/TPS
Drive and Motor powers: Single-phase, 230 V - 60 Hz, 5.5 kW
Color: Black
Charging rate: 270 l/min (16.2 m³/h, 9.5 cfm)
Fillling time: 6.40 min
Wornikg press. max.: 300 bar (4351 psi)

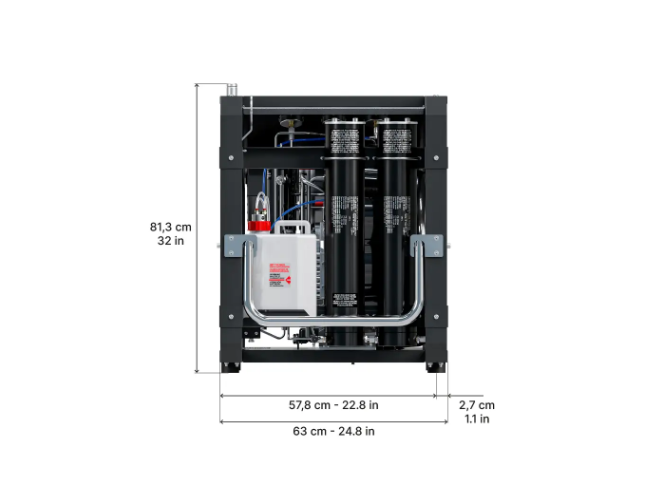

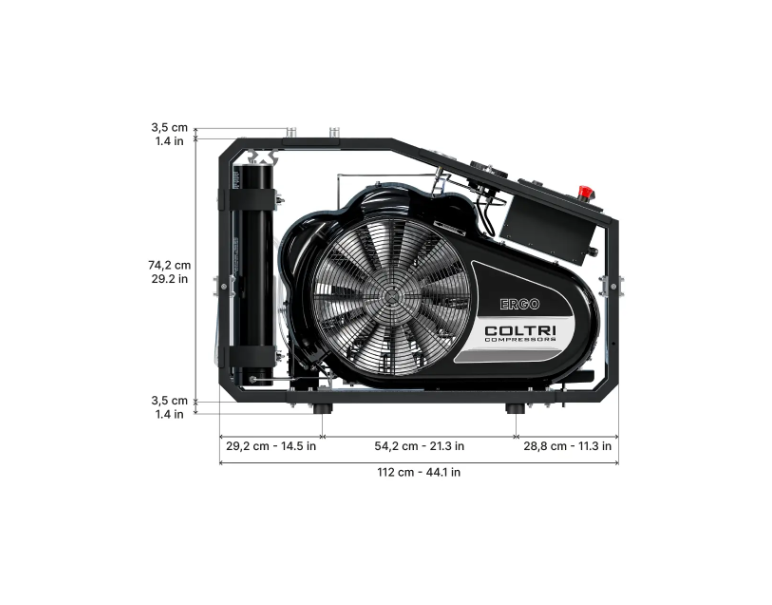

Dimensions: 112 x 63 x 77 cm (44.1 x 24.8 x 30.3 in)
Weight: 184 kg (406 lbs)

Standard Equipment:

2 Filling connections (DIN 232, DIN 300 or INT/YOKE 232 bar)
2 Filling hoses 1.2 m long
Pressure holding valve
Pressure gauges - interstage control

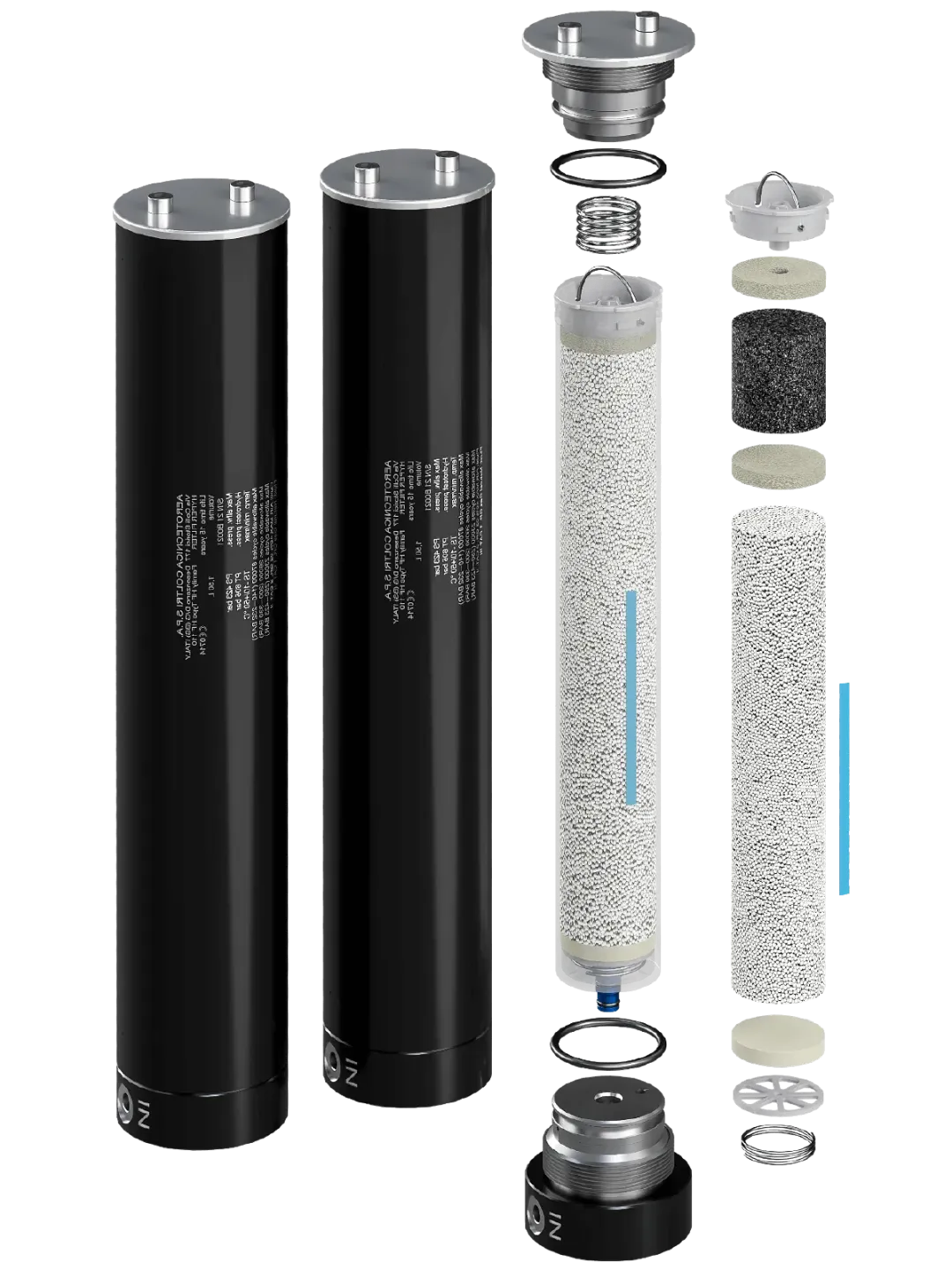

Dual PED-certified Hyperfilter filter system
Inside cabin temperature thermostat with automatic shutdown
Automatic condensate drain
Phase controller that prohibits revers rotation
Pressure switch with automatic shutdown
Oil level control with automatic shutdown
Oil pump with filter and pressure gauge
Handles
Frame color Black RAL 9005

Optional Equipment:

C-MONITOR (SC001200)
Remote filling panel single pressure with lever valve - stainless steel (chosen from DRV DIN 232 bar, DRV DIN 300 bar or DRV INT/YOKE 232 bar) (SC000327/I)
Remote filling panel double pressure with lever valve - stainless steel (STAINLESS STEEL
(chosen from DRV DIN 232 bar + DRV DIN 300 bar or DRV INT/YOKE 232 bar + DRV DIN 300 bar). Including Priority Panel.) (SC000331/I)
DIN 232 bar stainless steel fit for lever valve with safety pin (SC000936)
DIN 300 bar stainless steel fit for lever valve with safety pin (SC000937)
INT stainless steel fit for lever valve with safety pin (SC000935)
Presec Hyperfilter kit (Control unit/Filter cap/Filter cartridge molecular sieve and activated carbon) (99.0.L6S4.0065)
Filling hose 3 m (SC000461/3000/AIR)
Filling hose 5 m (SC000461/5000/AIR)
Filling hose 10 m (SC000461/10000/AIR)
Wheels kit (99.0.T4S5.0005)
