SKU: .SC000/TPS

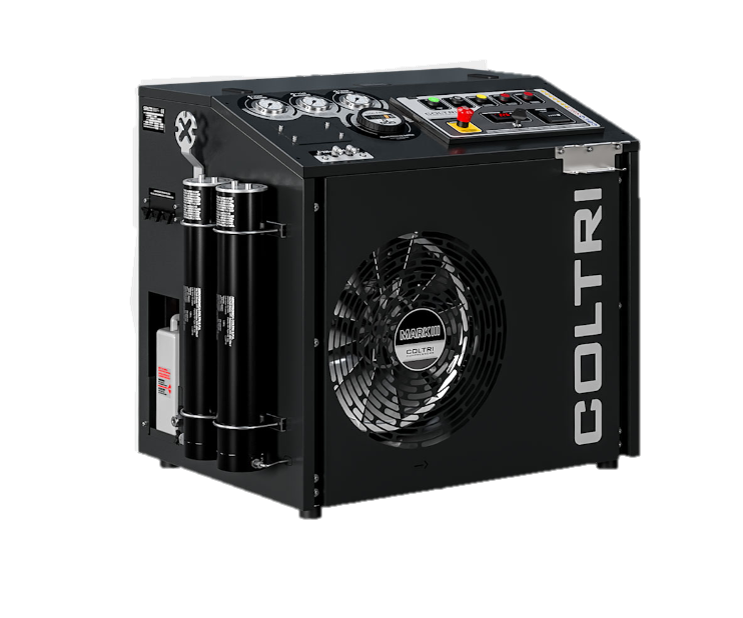

COLTRI compressor MARK III SILENT TPS 235/315/345 ET

12.625,00 €

Including VAT (25%)

Pump group flow rate

Quantity

Select options

Select product options (Pump group flow rate) so it can be added to cart.

The MARK Ⅲ SILENT TPS range is ideal for intensive use in hot, poorly ventilated environments or in tropical countries.

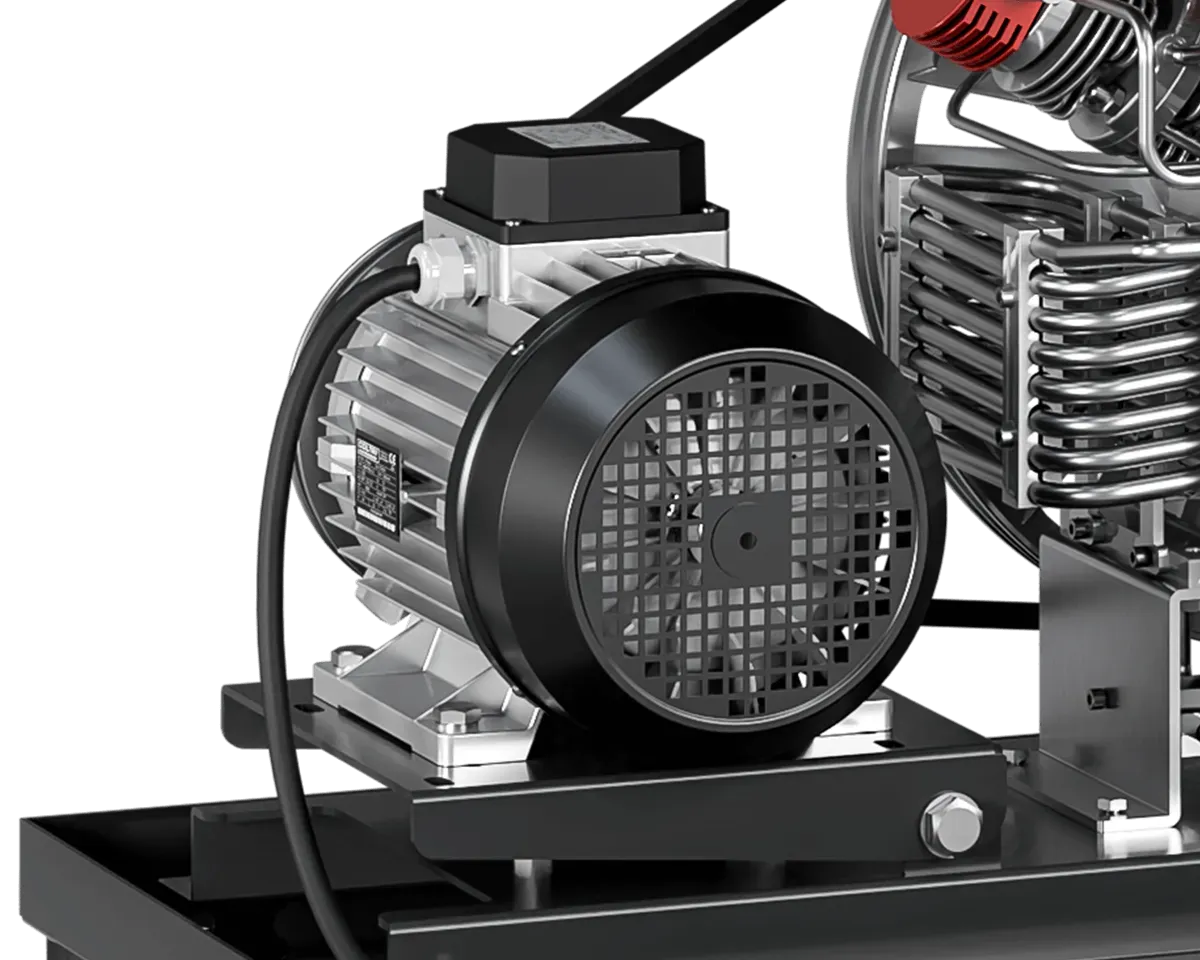

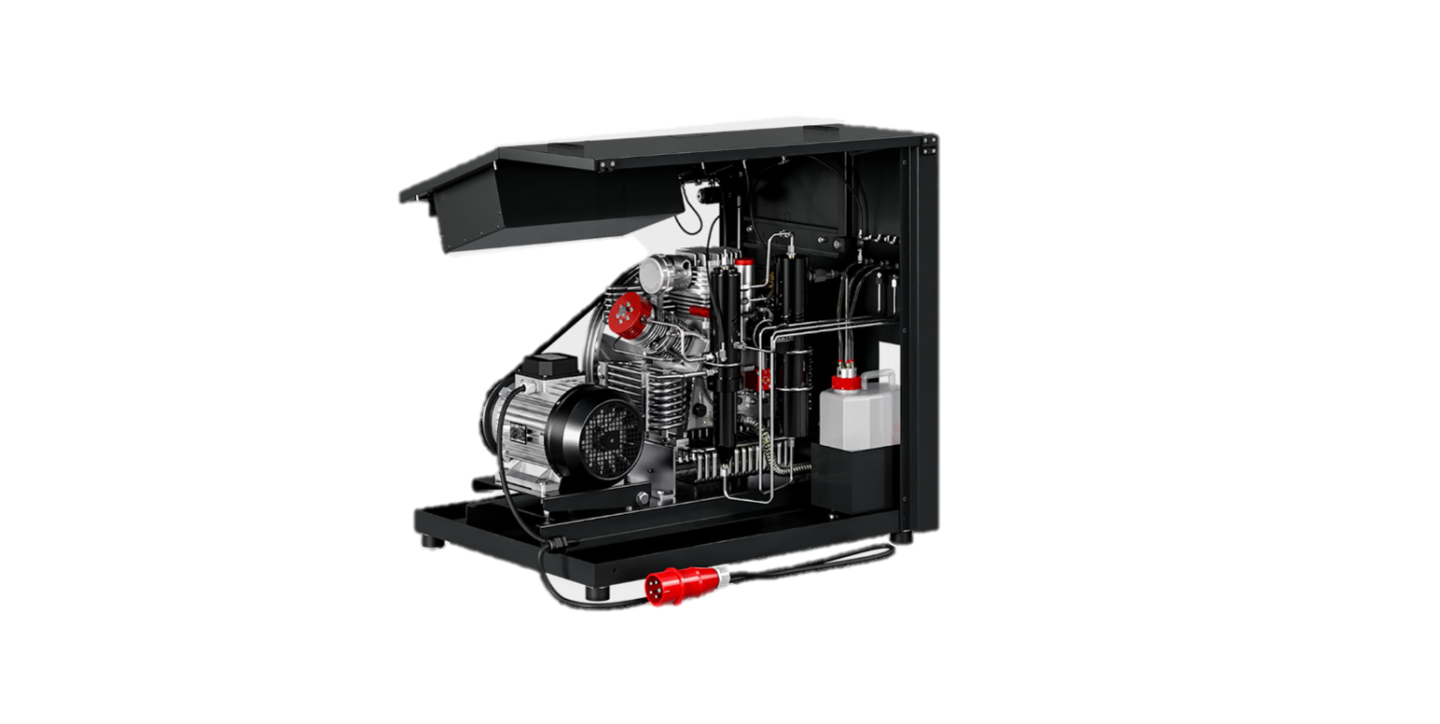

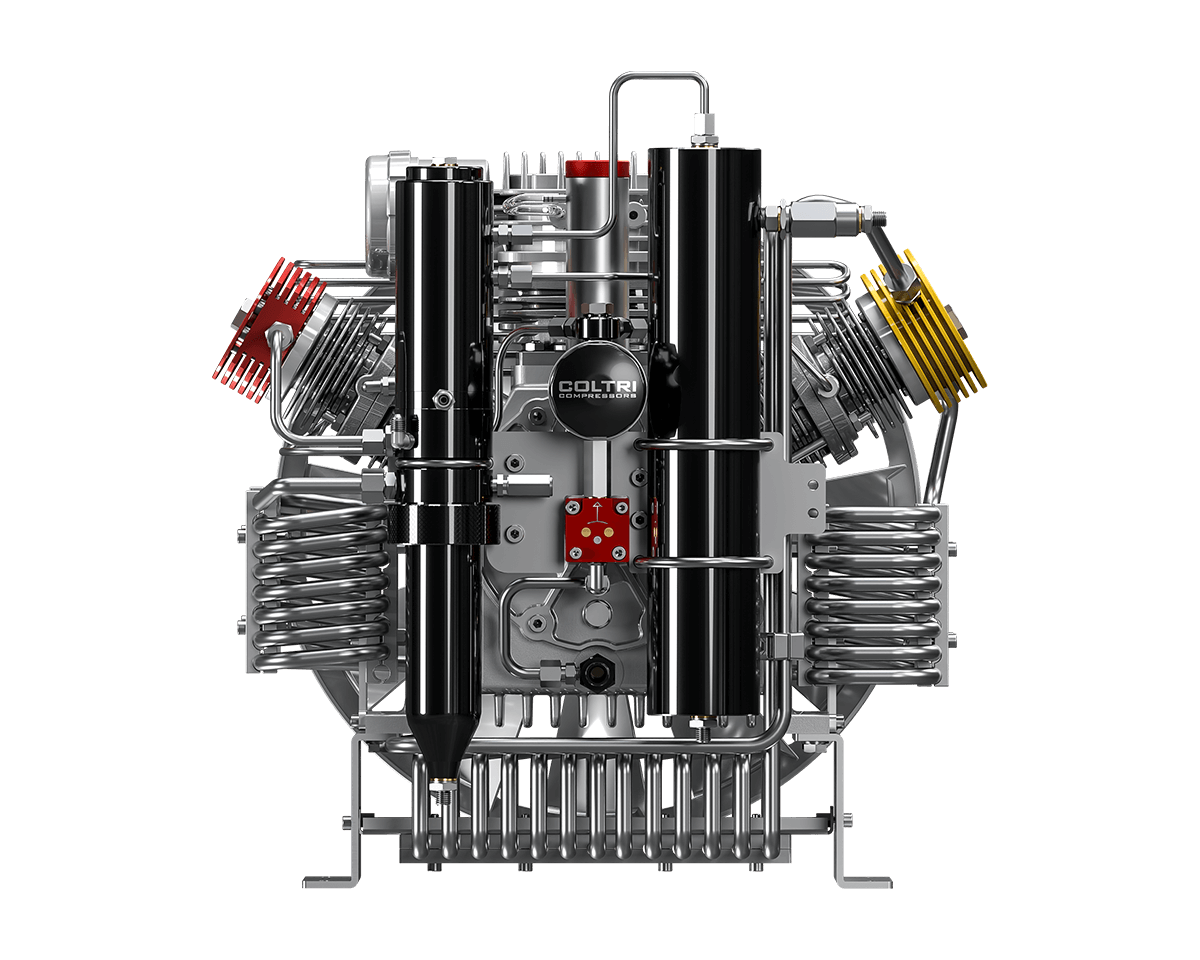

Designed with an improved cooling system and a filtering system with two Hyperfilters, these compressors are powered by an electric motor and equipped with four different pumping units, all in TPS (Tropical Plus Superdry) version.

Air purity and quality are two indispensable features of our Coltri Compressors. The air you breathe from the compressors Coltri complies with EN 12021:2014 standards: that’s why with them you can work, have fun, practice in absolute safety.

MARK III SILENT TPS 235/315/345 ET – Technical Specifications

Model (Code)	Drive & Motor	Power	Charging Rate	Filling Time	Working Pressure	Weight
MARK III SILENT TPS 235 ET (.SC000200/TPS)	Three-phase 400 V 50 Hz	4 kW	235 L/min 14.1 m³/h 8.3 CFM	8.30 min	330 bar 4786 psi	181 kg 399 lbs
MARK III SILENT TPS 235 ET (.SC000218/TPS)	Three-phase 230 V 50 Hz	4 kW	235 L/min 14.1 m³/h 8.3 CFM	8.30 min	330 bar 4786 psi	181 kg 399 lbs
MARK III SILENT TPS 235 ET (.SC000104/TPS)	Three-phase 230 V 60 Hz	4 kW	235 L/min 14.1 m³/h 8.3 CFM	8.30 min	330 bar 4786 psi	181 kg 399 lbs
MARK III SILENT TPS 235 ET (.SC000209/TPS)	Three-phase 440 V 60 Hz	4 kW	235 L/min 14.1 m³/h 8.3 CFM	8.30 min	330 bar 4786 psi	181 kg 399 lbs
MARK III SILENT TPS 315 ET (.SC000272/TPS)	Three-phase 400 V 50 Hz	5.5 kW	315 L/min 18.9 m³/h 11.1 CFM	6.20 min	330 bar 4786 psi	191 kg 421 lbs
MARK III SILENT TPS 315 ET (.SC000103/TPS)	Three-phase 230 V 50 Hz	5.5 kW	315 L/min 18.9 m³/h 11.1 CFM	6.20 min	330 bar 4786 psi	191 kg 421 lbs
MARK III SILENT TPS 315 ET (.SC000254/TPS)	Three-phase 230 V 60 Hz	5.5 kW	315 L/min 18.9 m³/h 11.1 CFM	6.20 min	330 bar 4786 psi	191 kg 421 lbs
MARK III SILENT TPS 315 ET (.SC000271/TPS)	Three-phase 440 V 60 Hz	5.5 kW	315 L/min 18.9 m³/h 11.1 CFM	6.20 min	330 bar 4786 psi	191 kg 421 lbs
MARK III SILENT TPS 345 ET (.SC000291/TPS)	Three-phase 400 V 50 Hz	7.5 kW	345 L/min 20.7 m³/h 12.2 CFM	5.40 min	330 bar 4786 psi	191 kg 421 lbs
MARK III SILENT TPS 345 ET (.SC000292/TPS)	Three-phase 230 V 50 Hz	7.5 kW	345 L/min 20.7 m³/h 12.2 CFM	5.40 min	330 bar 4786 psi	191 kg 421 lbs
MARK III SILENT TPS 345 ET (.SC000293/TPS)	Three-phase 230 V 60 Hz	7.5 kW	345 L/min 20.7 m³/h 12.2 CFM	5.40 min	330 bar 4786 psi	191 kg 421 lbs
MARK III SILENT TPS 345 ET (.SC000294/TPS)	Three-phase 440 V 60 Hz	7.5 kW	345 L/min 20.7 m³/h 12.2 CFM	5.40 min	330 bar 4786 psi	191 kg 421 lb

Common Specifications (same for all models):

Model: MARK III SILENT TPS 235/315/345 ET (''Elettrico Trifase'' → three-phase electric)

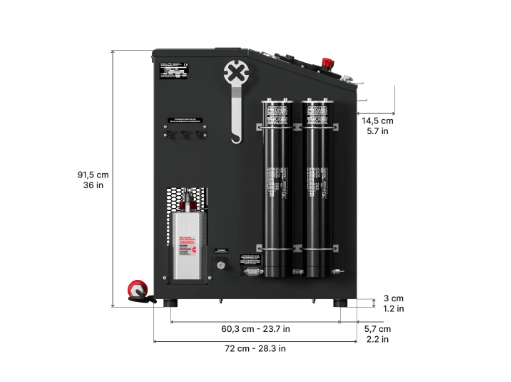

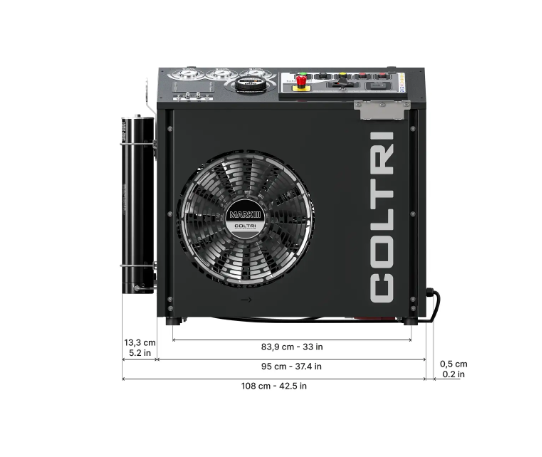

Dimensions: 112 x 73 x 91 cm (44.1 x 28.7 x 35.8 in)
Color: Black

Standard Equipment:

2 Filling connections (DIN 232, DIN 300 or INT/YOKE 232 bar)
2 Filling hoses 1.2 m long
Pressure holding valve

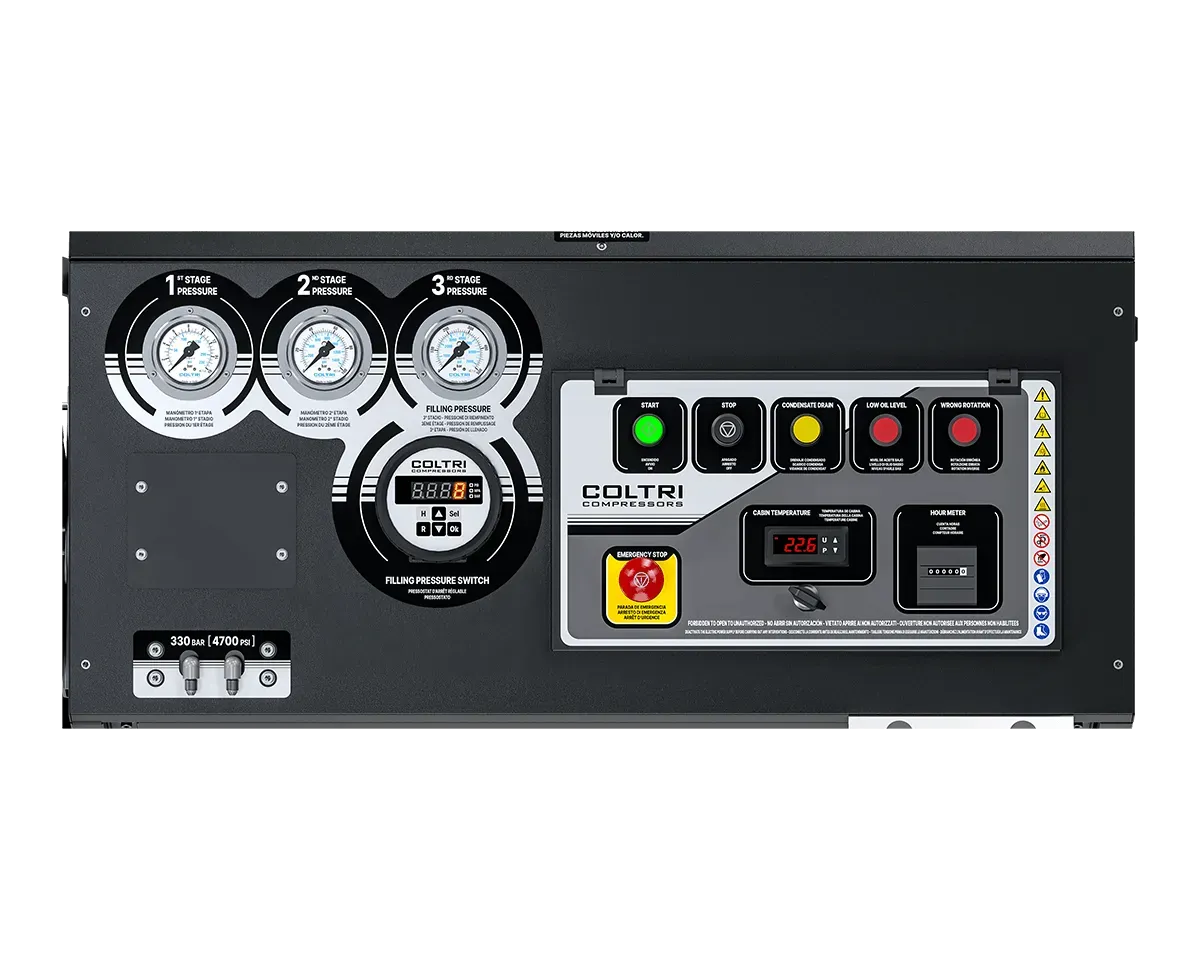

Pressure gauges - interstage control

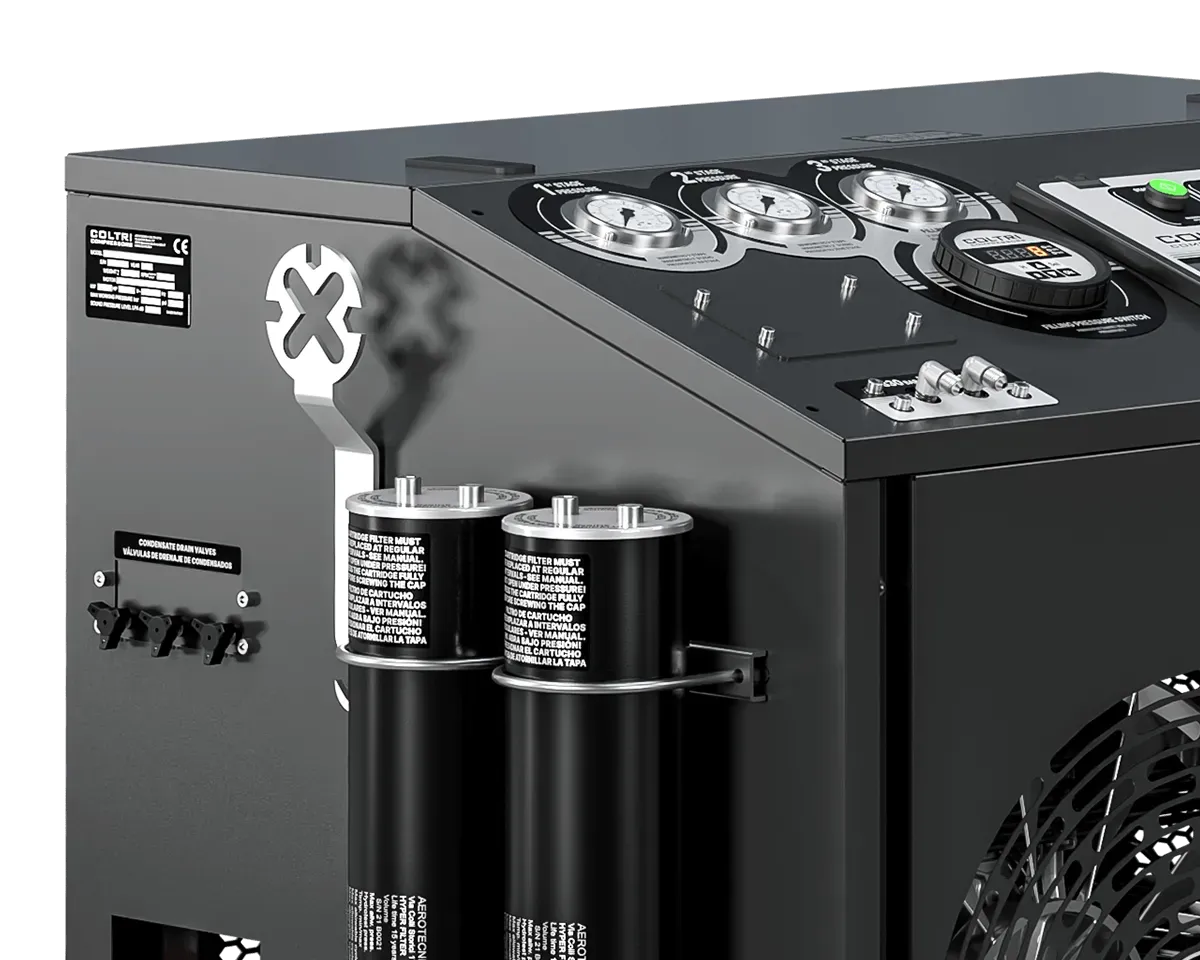

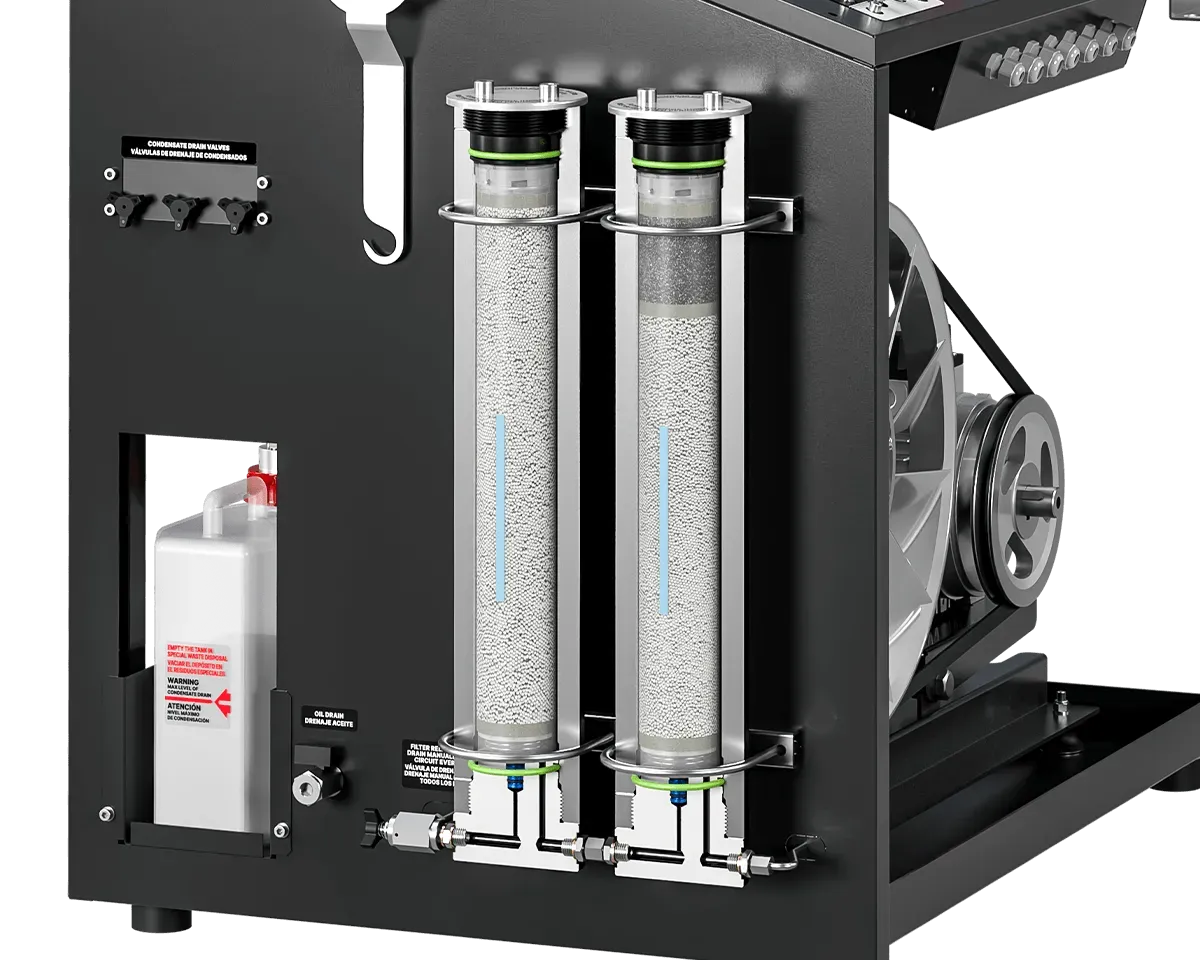

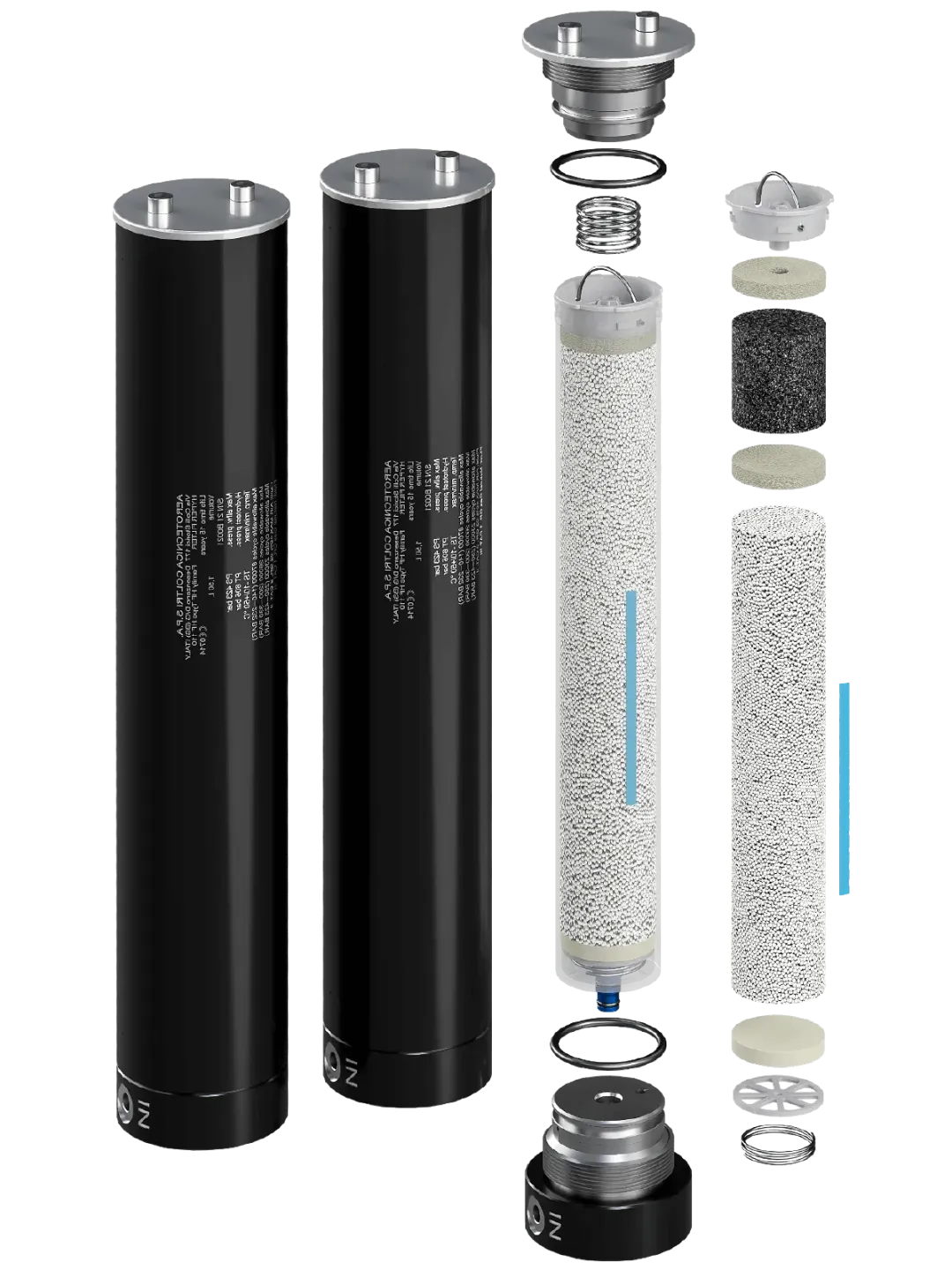

Dual PED-certified Hyperfilter filter system
Inside cabin temperature thermostat with automatic shutdown
Automatic condensate drain
Phase controller that prohibits revers rotation
Pressure switch with automatic shutdown
Oil level control with automatic shutdown
Oil pump with filter and pressure gauge
Frame color Black RAL 9005

Optional Equipment:

Remote filling panel single pressure with lever valve - stainless steel (chosen from DRV DIN 232 bar, DRV DIN 300 bar or DRV INT/YOKE 232 bar) (SC000327/I)
Remote filling panel double pressure with lever valve - stainless steel (STAINLESS STEEL
(chosen from DRV DIN 232 bar + DRV DIN 300 bar or DRV INT/YOKE 232 bar + DRV DIN 300 bar). Including Priority Panel.) (SC000331/I)
DIN 232 bar stainless steel fit for lever valve with safety pin (SC000936)
DIN 300 bar stainless steel fit for lever valve with safety pin (SC000937)
INT stainless steel fit for lever valve with safety pin (SC000935)
Presec Hyperfilter kit (Control unit/Filter cap/Filter cartridge molecular sieve and activated carbon) (99.0.L6S4.0065)
SAM MULTIGAS - CO + CO2 + H2O (SC000727/A)
SAM MULTIGAS - CO + CO2 + H2O with VOC (SC000727/B)
Filling hose 3 m (SC000461/3000/AIR)
Filling hose 5 m (SC000461/5000/AIR)
CO SAFEGUARD Carbon monoxide analyzer (99.0.O9S4.0005)
