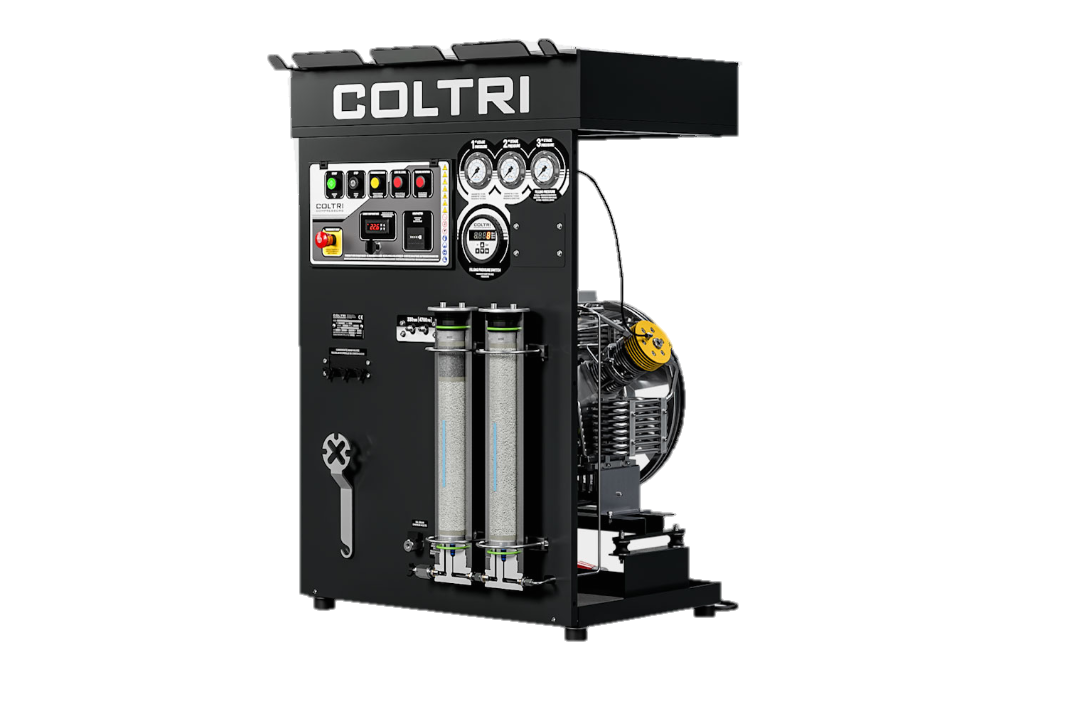

COLTRI compressor SUPER SILENT TPS 235/315 ET
Inquiry for: COLTRI compressor SUPER SILENT TPS 235/315 ET

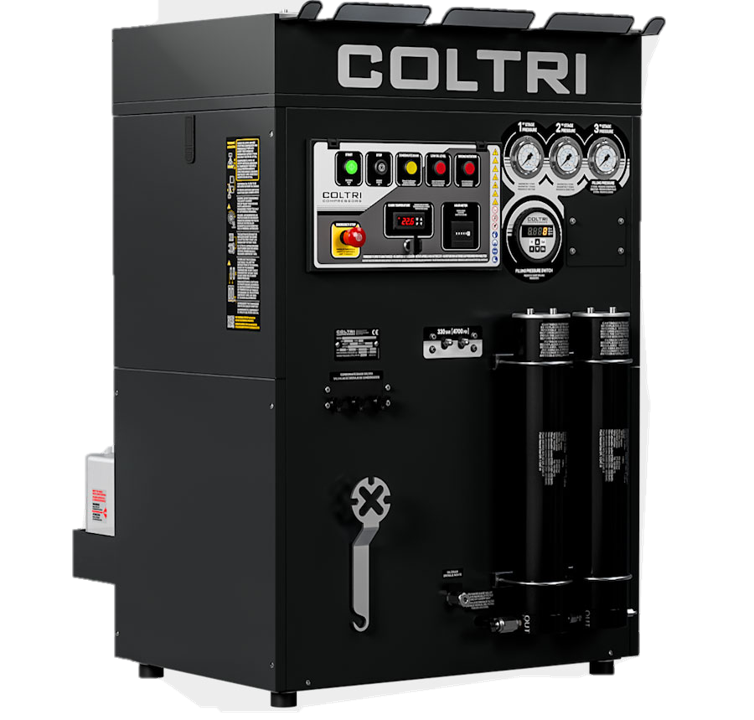

The TPS version of the SUPER SILENT pushes the limits of the line, combining quietness and optimized performance. A compressor designed for those seeking the ultimate in technology, with minimal acoustic impact.

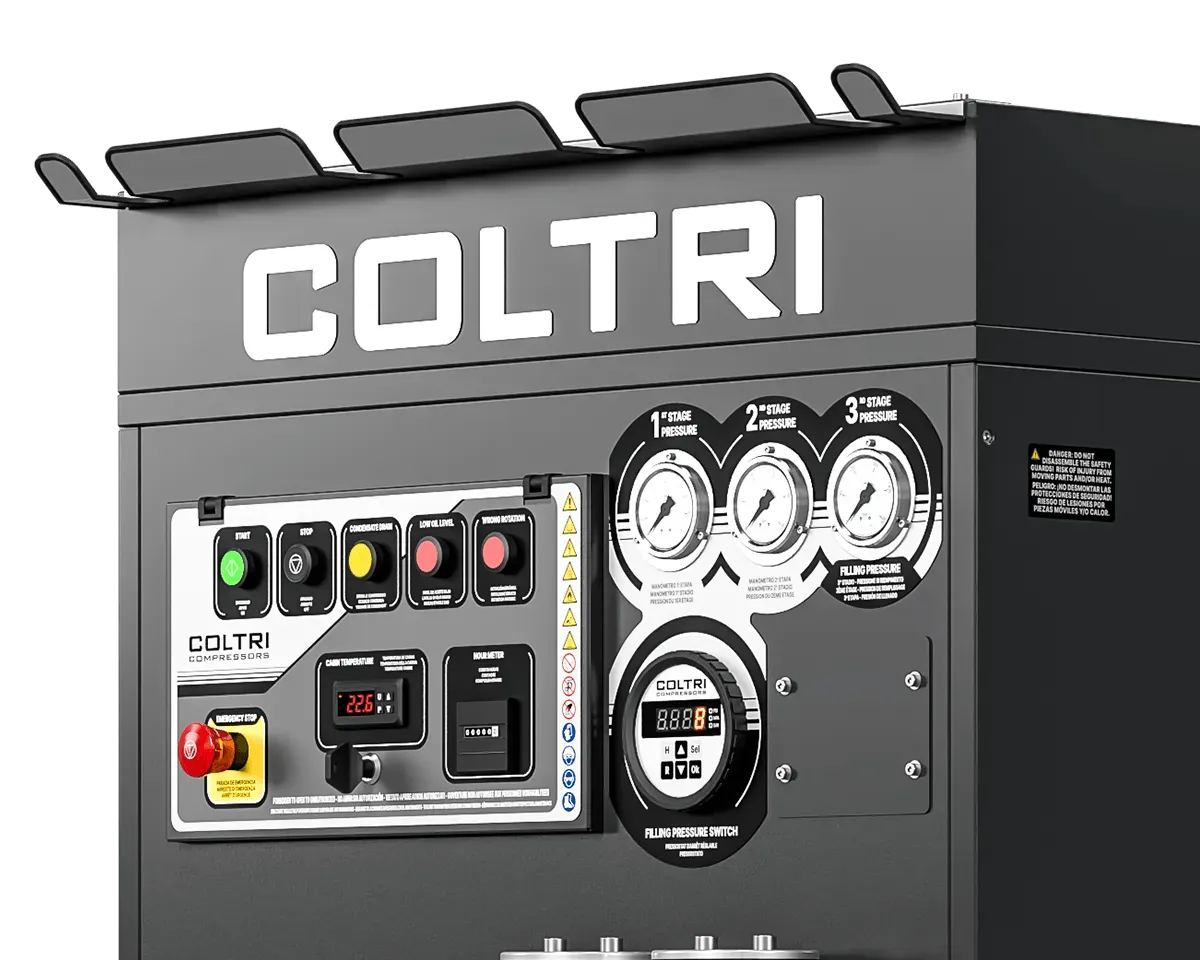

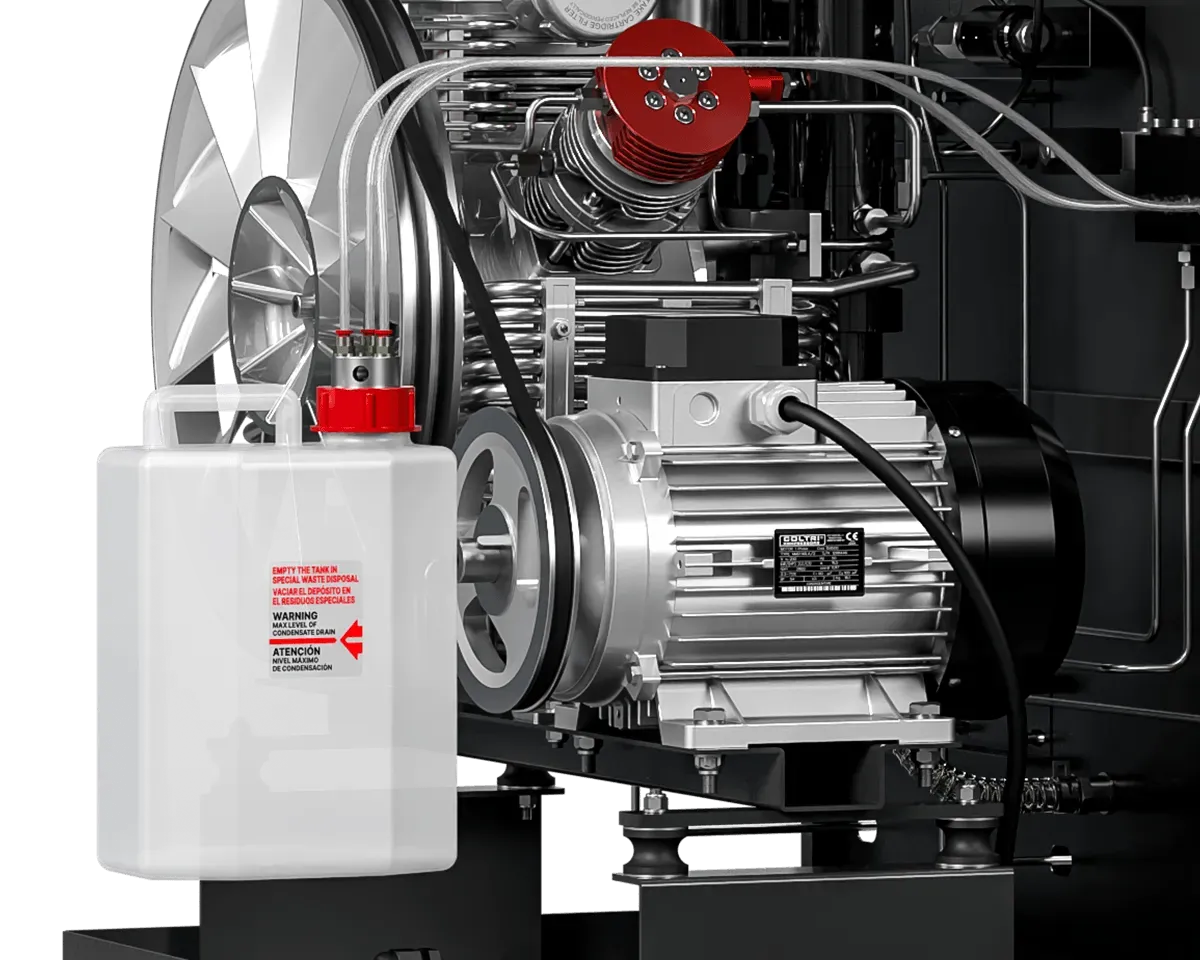

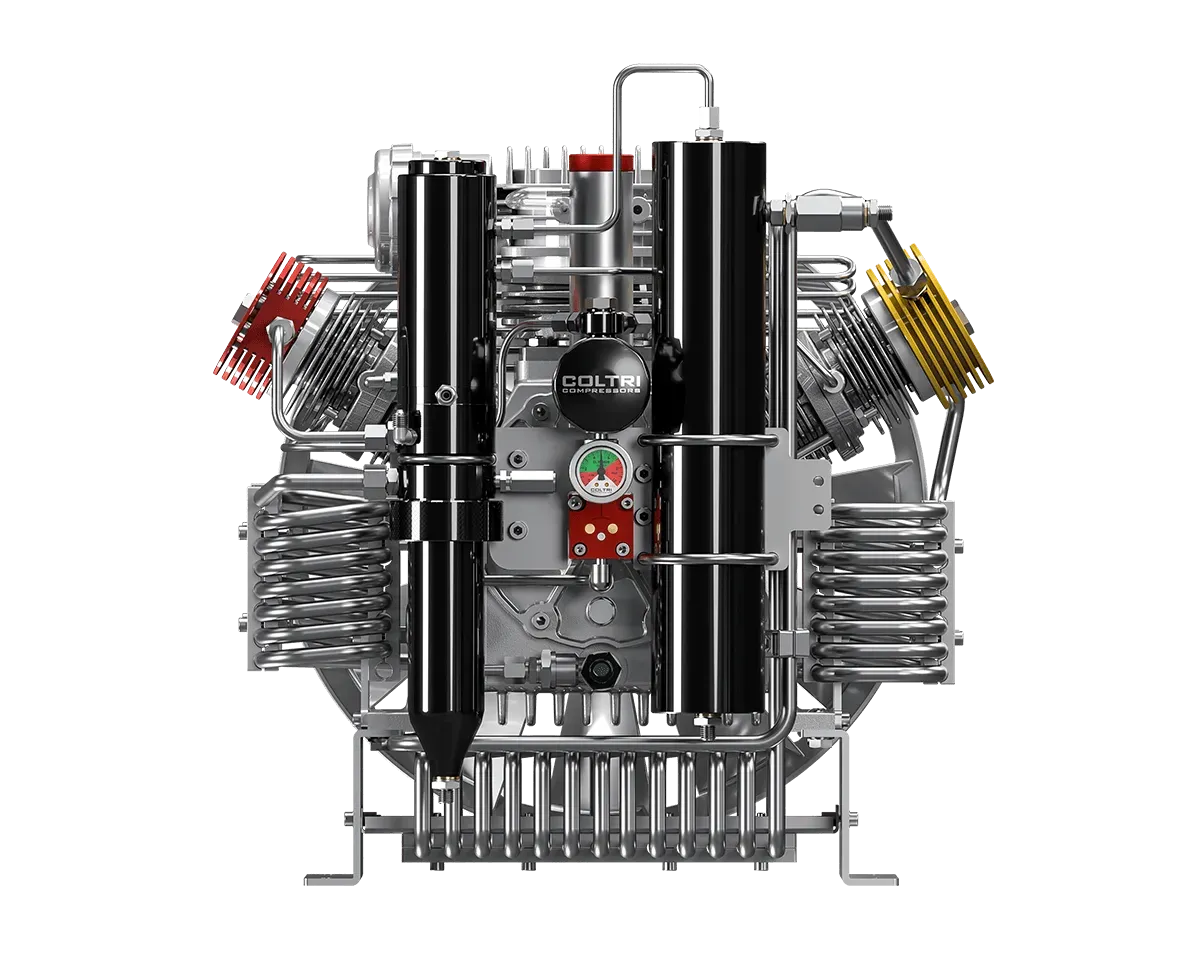

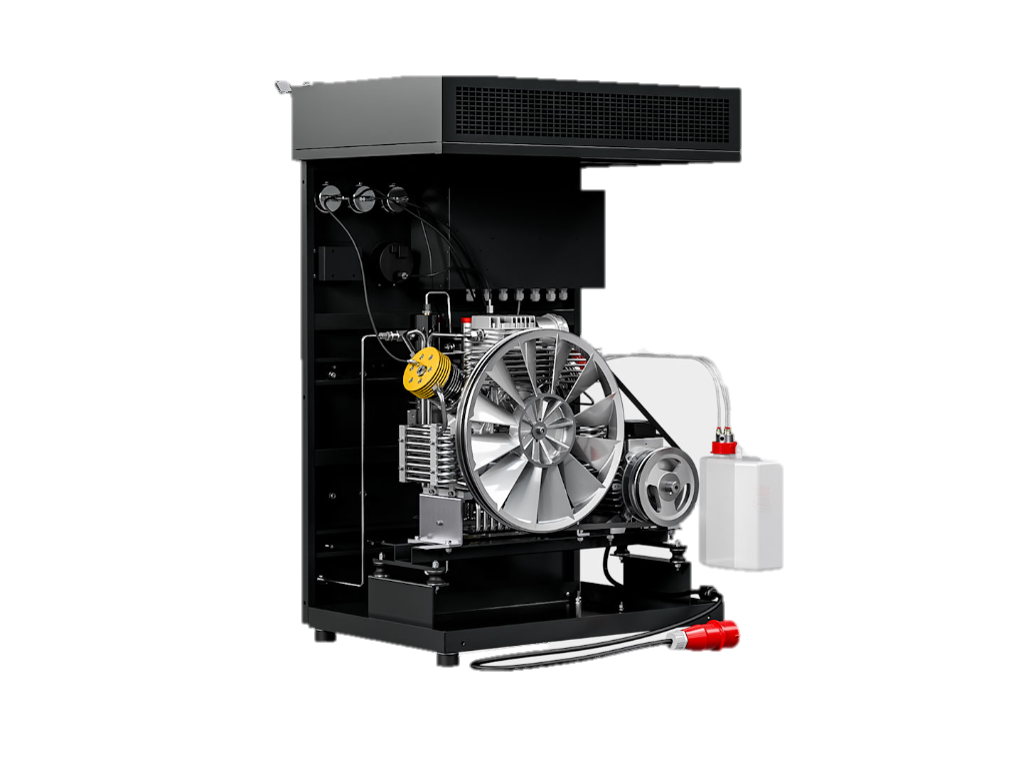

The model Super Silent TPS Is specially designed to minimize noise. It is equipped with an enhanced cooling and sound insulation system and an efficient filtration system with two Hyperfilters. Powered by electric motor, it is equipped with four different pump units, all in TPS (Tropical Plus Superdry) version, and with an intuitive control panel. For longer filter life, the Tornado high-pressure dryer is recommended.
Air purity and quality are two indispensable features of Coltri Compressors. The air you breathe from the compressors Coltri complies with EN 12021:2014 standards: that’s why with them you can work, have fun, practice in absolute safety.
ERGO TPS 270 EM – Technical Specifications
| Model (Code) | Drive | Motor Power | Charging Rate | Filling Time | Weight | Noise |
|---|
| Super Silent TPS 235 ET (.SC000215/TPS) | Three-phase 400 V 50 Hz | 4 kW | 235 l/min 14.1 m³/h 8.3 cfm | 8.30 min | 4786 psi 330 bar | 212 kg 467 lbs | — |
| Super Silent TPS 235 ET (.SC000216/TPS) | Three-phase 230 V 50 Hz | 4 kW | 235 l/min 14.1 m³/h 8.3 cfm | 8.30 min | 4786 psi 330 bar | 212 kg 467 lbs | — |
| Super Silent TPS 235 ET (.SC000217/TPS) | Three-phase 230 V 60 Hz | 4 kW | 235 l/min 14.1 m³/h 8.3 cfm | 8.30 min | 4786 psi 330 bar | 212 kg 467 lbs | — |
| Super Silent TPS 235 ET (.SC000212/TPS) | Three-phase 440 V 60 Hz | 4 kW | 235 l/min 14.1 m³/h 8.3 cfm | 8.30 min | 4786 psi 330 bar | 212 kg 467 lbs | — |
| Super Silent TPS 315 ET (.SC000275/TPS) | Three-phase 400 V 50 Hz | 5.5 kW | 315 l/min 18.9 m³/h 11.1 cfm | 6.20 min | 4786 psi 330 bar | 222 kg 489 lbs | 69.4 dB |
| Super Silent TPS 315 ET (.SC000276/TPS) | Three-phase 230 V 50 Hz | 5.5 kW | 315 l/min 18.9 m³/h 11.1 cfm | 6.20 min | 4786 psi 330 bar | 222 kg 489 lbs | 69.4 dB |
| Super Silent TPS 315 ET (.SC000277/TPS) | Three-phase 230 V 60 Hz | 5.5 kW | 315 l/min 18.9 m³/h 11.1 cfm | 6.20 min | 4786 psi 330 bar | 222 kg 489 lbs | 69.4 dB |
| Super Silent TPS 315 ET (.SC000278/TPS) | Three-phase 440 V 60 Hz | 5.5 kW | 315 l/min 18.9 m³/h 11.1 cfm | 6.20 min | 4786 psi 330 bar | 222 kg 489 lbs | 69.4 dB |
Common Specifications (same for all models):
- Model: SUPER SILENT TPS 235/315 ET (''Elettrico Trifase'' → three-phase electric)
- Wornikg press. max.: 300 bar (4351 psi)

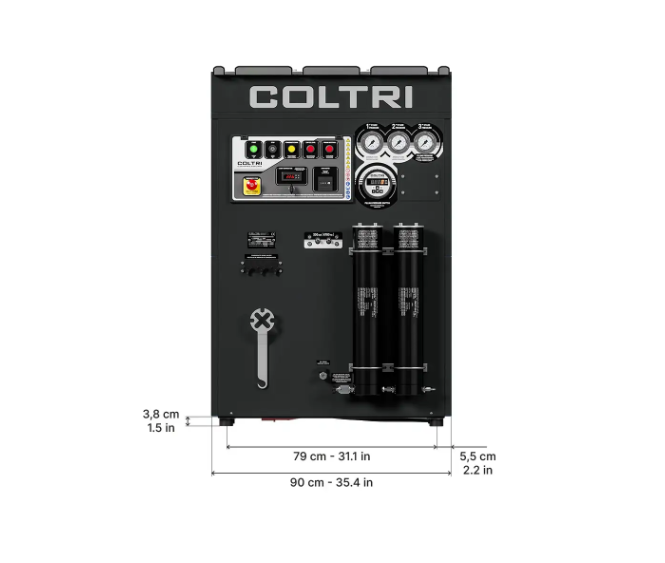

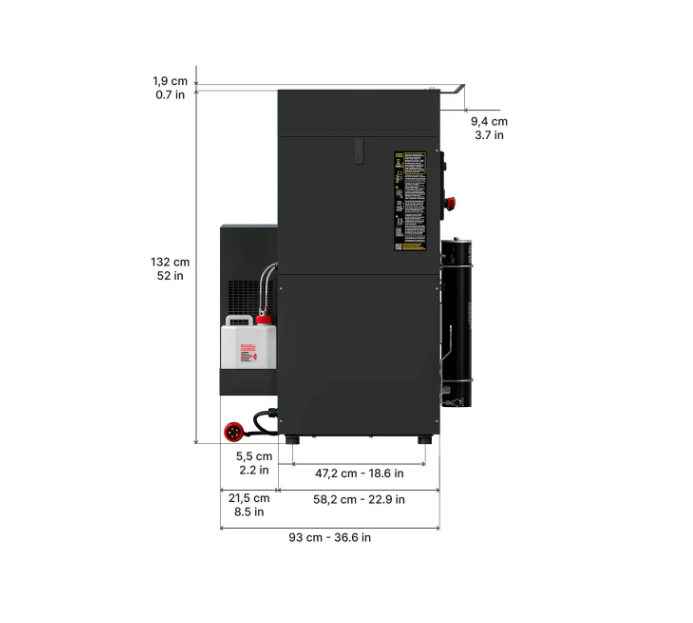

- Dimensions: 90 x 93 x 132 cm (35.4 x 36.6 x 52 in)
- Color: Black
Standard Equipment:
- 2 Filling connections (DRV DIN 232, DRV DIN 300 or INT/YOKE 232 bar)
- 2 Filling hoses 1.2 m long
- Pressure holding valve

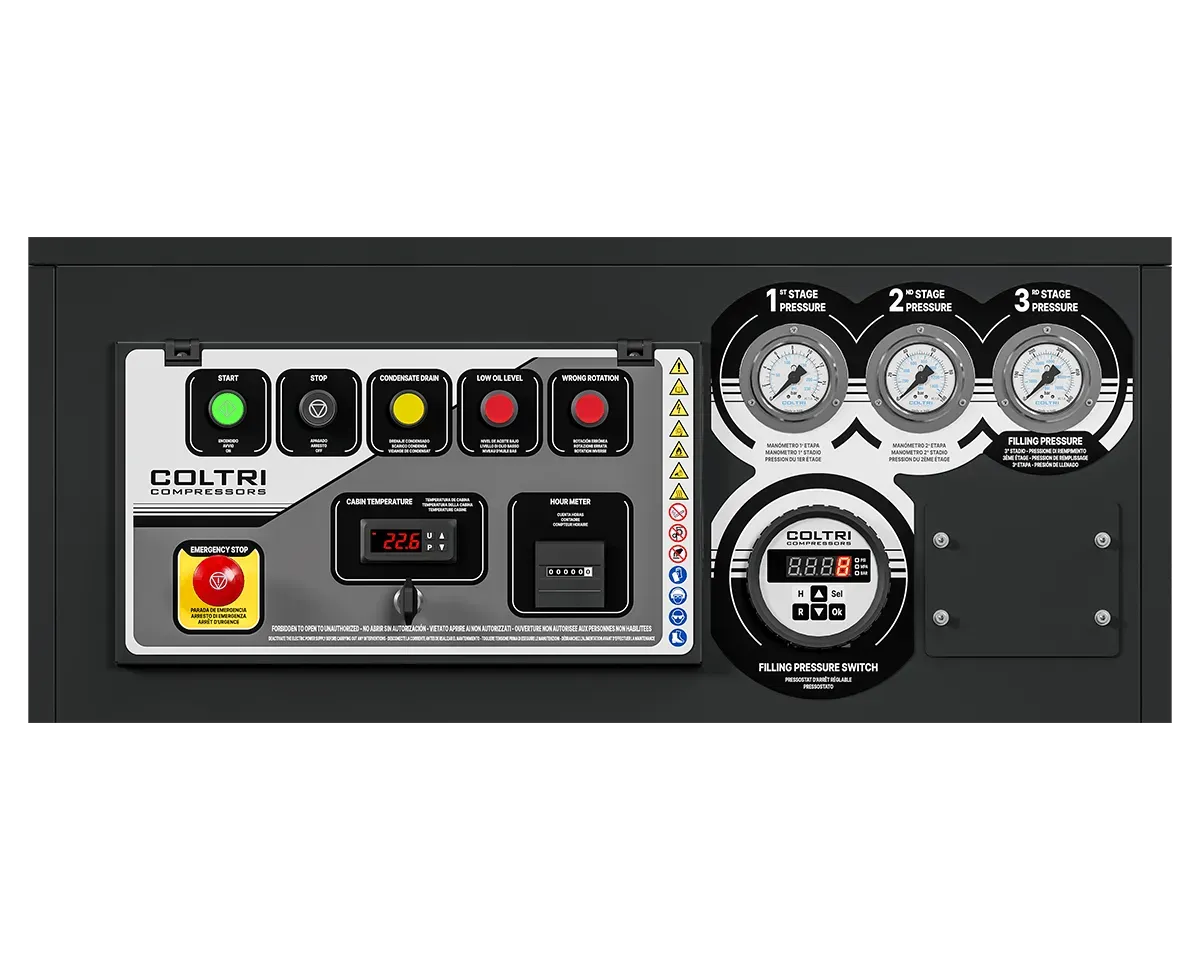

- Pressure gauges - interstage control

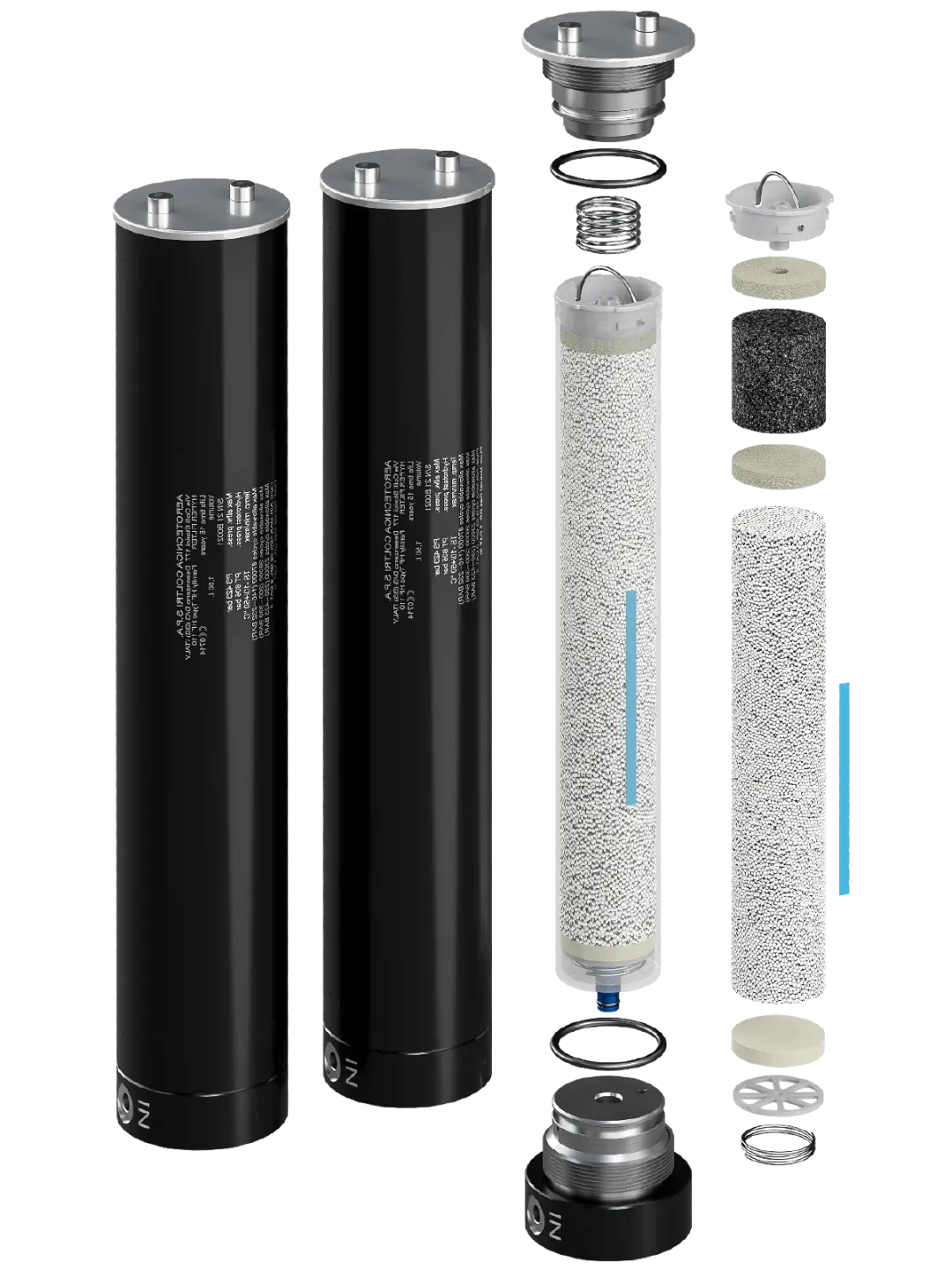

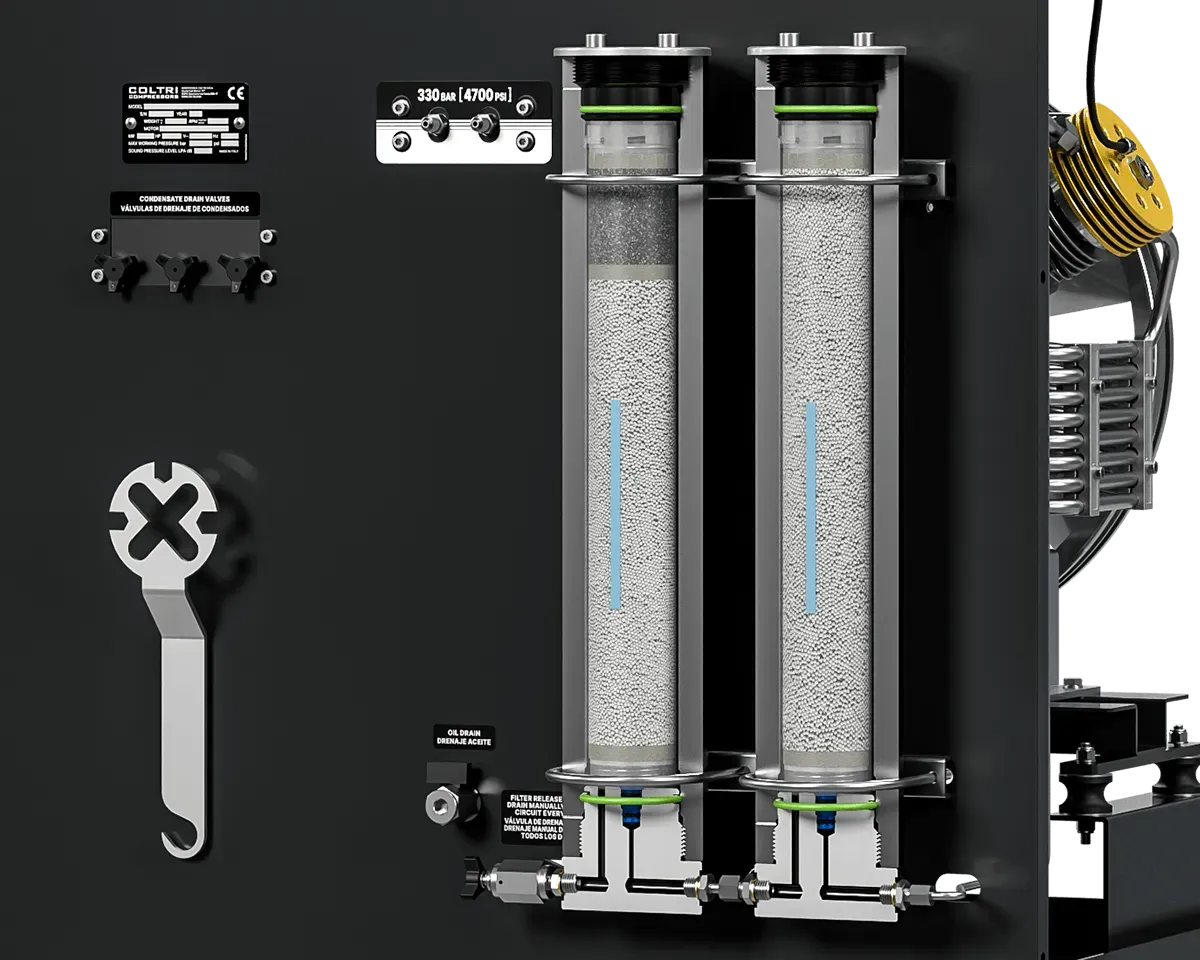

- Dual PED-certified Hyperfilter filter system
- Inside cabin temperature thermostat with automatic shutdown
- Automatic condensate drain
- Phase controller that prohibits revers rotation
- Pressure switch with automatic shutdown
- Oil level control with automatic shutdown
- Oil pump with filter and pressure gauge
- Frame color Black RAL 9005
Optional Equipment:
- Remote filling panel single pressure with lever valve - stainless steel (chosen from DRV DIN 232 bar, DRV DIN 300 bar or DRV INT/YOKE 232 bar) (SC000327/I)
- Remote filling panel double pressure with lever valve - stainless steel (STAINLESS STEEL
(chosen from DRV DIN 232 bar + DRV DIN 300 bar or DRV INT/YOKE 232 bar + DRV DIN 300 bar). Including Priority Panel.) (SC000331/I) - DIN 232 bar stainless steel fit for lever valve with safety pin (SC000936)
- DIN 300 bar stainless steel fit for lever valve with safety pin (SC000937)
- INT stainless steel fit for lever valve with safety pin (SC000935)
- Presec Hyperfilter kit (Control unit/Filter cap/Filter cartridge molecular sieve and activated carbon) (99.0.L6S4.0065)
- SAM MULTIGAS - CO + CO2 + H2O (SC000727/A)
- SAM MULTIGAS - CO + CO2 + H2O with VOC (SC000727/B)
- TORNADO refrigerator - dryer 420 bar (SC0001307)
- Filling hose 3 m (SC000461/3000/AIR)
- Filling hose 5 m (SC000461/5000/AIR)
- CO SAFEGUARD Carbon monoxide analyzer (99.0.O9S4.0005)
