SKU: MG040039SDD21F1

MPS booster C1XM

The product is temporary unavailable.

Send inquiry

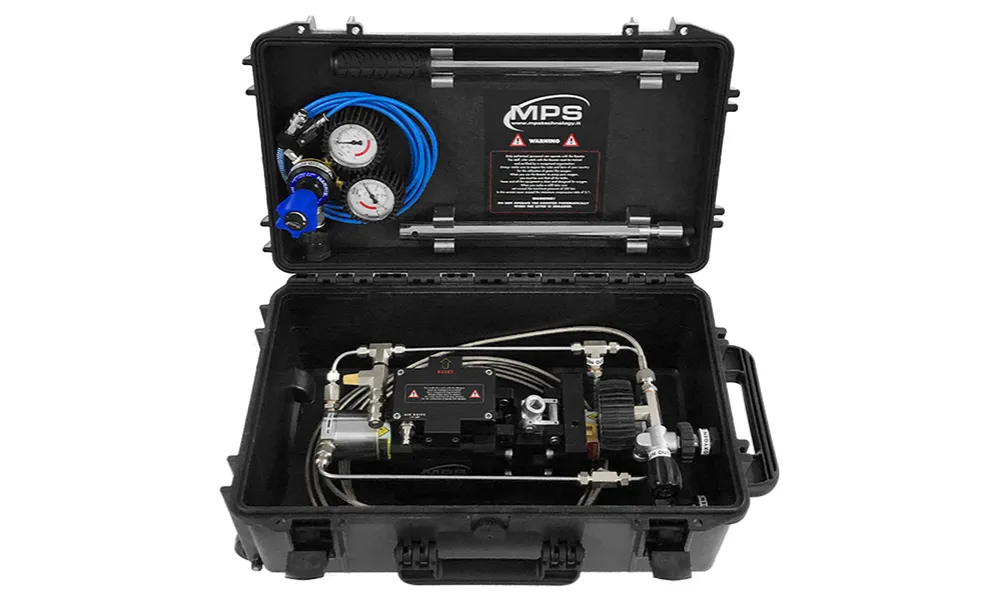

AIR DRIVEN PORTABLE GAS BOOSTER
DOUBLE ACTING - SINGLE STAGE
The SPECIAL OP. Line is made for military sector and special operators. These units needs a special training to be used. The training must be done by a MPS authorized trainer.
The C1XM is suggested for extreme expeditions, where the situation makes impossible the pneumatic use and the manual lever becomes necessary.

For professional use only. Price available on request.

Applications

CCR Divers
Technical Divers
Small groups of Divers
Military Sector

Benefits

Annual HP maintenance, BP maintenance every 5 years
Robustness and reliability
Protection of the operator
Double steel braided hoses with Teflon coating to ensure oxygen compatibility and no deposit on the hose
Delivered complete and ready to use

Technical data

TRASMISSION RATIO: 1:39
DISPLACEMENT: 2x8 cm3 (0.4882 in3)
MIN SUCTION PRESSURE: 5 bar (70 psi)
DRIVE AIR PRESSURE: 6 bar (85 psi) /8 bar (115 psi)
MAX OUTLET PRESSURE: 230 bar (3336 psi) / 310 bar (4500 psi)
AIR DRIVE INLET CONNECTION: Micro Quick Connection 1/4”
AIR DRIVE HOSE LENGHT: 3 m
GAS INLET CONNECTION: 3 m SST Braid Hose, Filter, Valve with Purge, 63 mm 0-400 Bar Gauge, DIN 300
GAS OUTLET CONNECTION: 3 m SST Braid Hose, Valve with Purge, 63 mm 0-400 Bar Gauge, DIN 300 or M26x2
WEIGHT: 13.0 kg (28.66 lb)
DIMENSIONS (LxWxH): 585 x 361 x H238 mm
SERVICE: OXYGEN SERVICE
