SKU: MG052176DS144F6

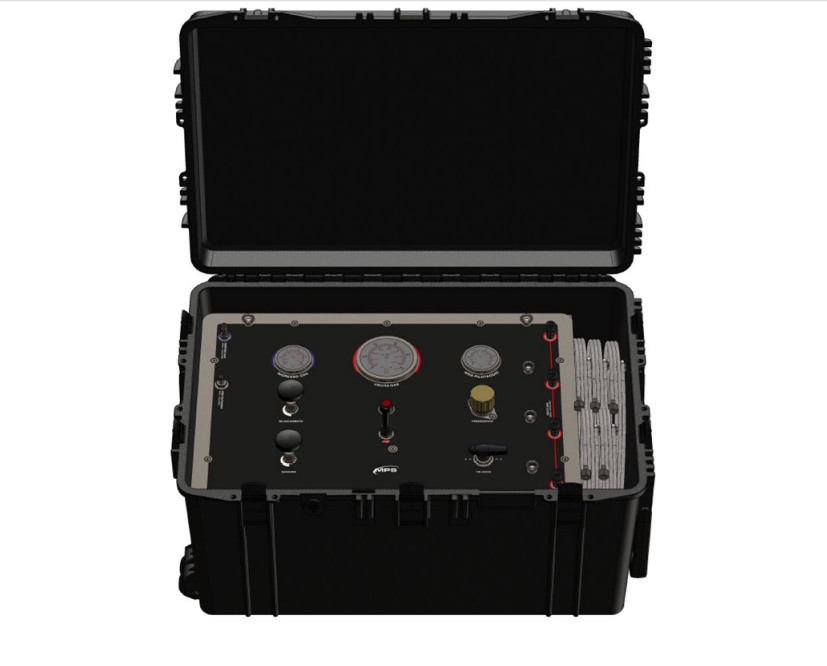

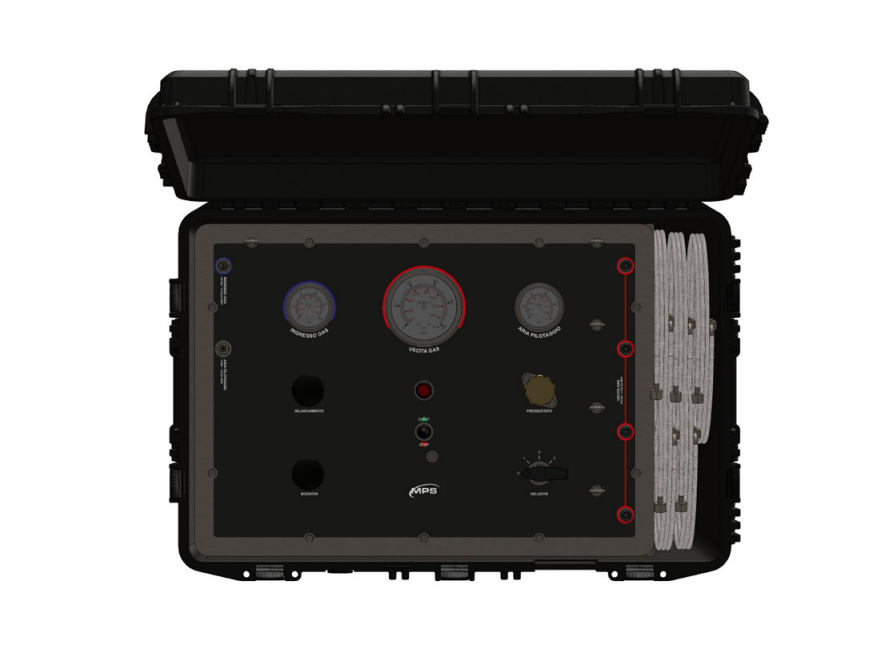

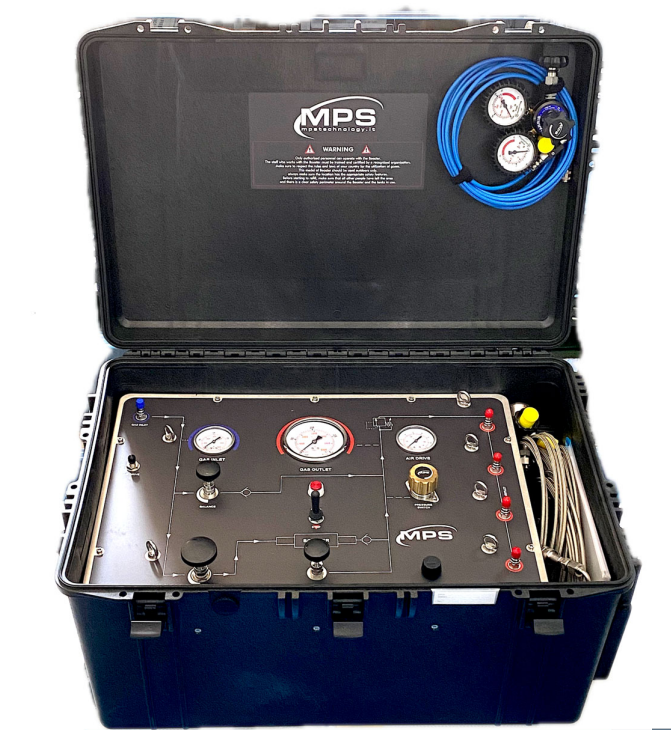

MPS booster Multi Charging System Mod.F

The product is temporary unavailable.

Send inquiry

AIR DRIVEN GAS BOOSTER SYSTEM
DOUBLE STAGE - SINGLE ACTING - SINGLE DRIVE
Multiple charging system specifically designed for the Military, professional users and Fire Fighters Corp. System polymery case that offer superior protection from the elements, water, dust and impacts when transporting fragile and valuable objects.

Price available on request.

The high quality materials give the CASE System strenght and reliability, improving the safety for the operator. The system is integrated into a waterproof case which protects the unit in all storage condition and the transport is simplified by wheels and handle. The use of polymeric materials and additive manufacturing makes the unit more light and portable than ever. And it's easy to use!

Applications

Fire Fighters Corp
Military special force

This booster has been designed as a pressure multiplier for the following gases:

Oxygen
Helium
Air

Technical data

RATING: 345 bar (5,000 psi)
TRASMISSION RATIO: 1st Stage: 1:21, 2nd Stage: 1:76
DISPLACEMENT: 1st Stage: 70.7 cm3 (4.31 inc3), 2nd Stage: 20.1 cm3 (1.23 inc3)
FLOW: 353 Nl/min (12.46 scfm)
MAX DRIVE AIR PRESSURE (pL): 10 bar (145 psi)
MAX INLET PRESSURE (pA): 230 bar (3336 psi)
MAX OUTLET PRESSURE: 230 bar (3336 psi)
DIMENSIONS (LxWxH): 62 x 46 x 34 cm (24.41 x 18.11 x 13.39 inc3)
STALL PRESSURE: 76*pL + 76/21*pA
WEIGHT: 43.0 kg (94.8 lb) approx
